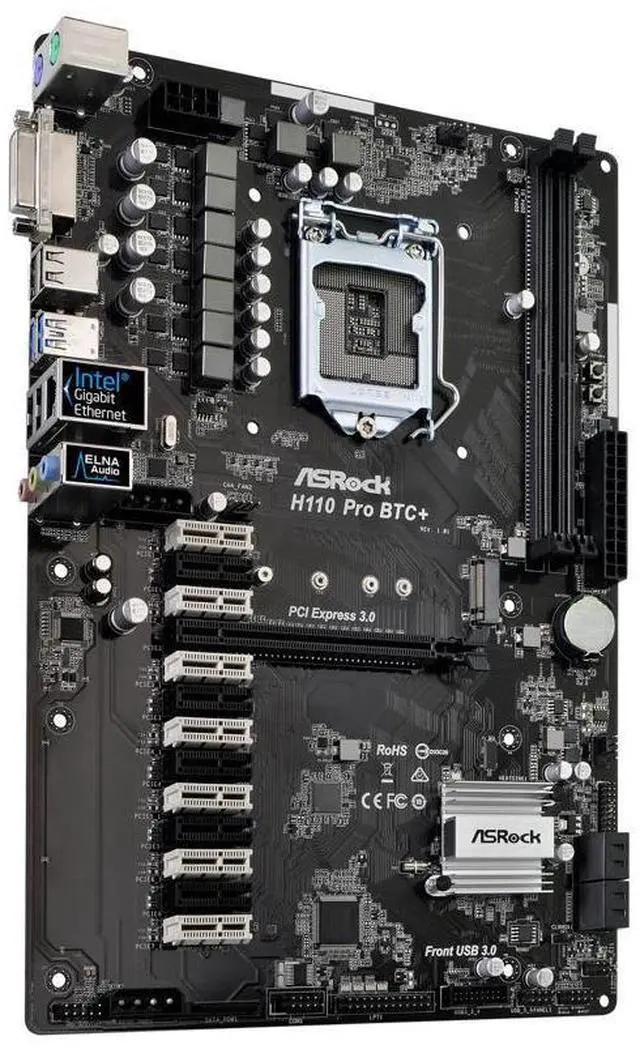

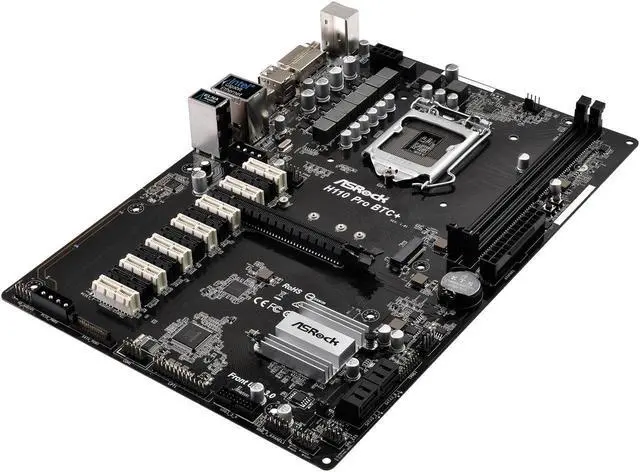

ASRock H110 Pro BTC+ LGA 1151 Intel H110 SATA 6Gb/s ATX Intel for Cryptocurrency Mining (BTC) Motherboard

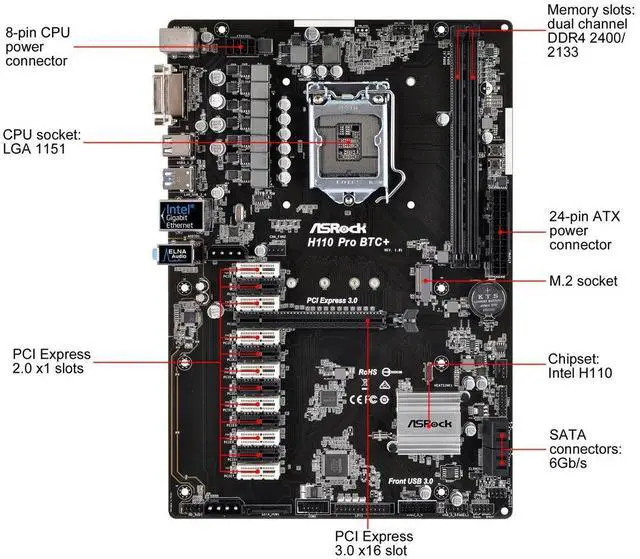

Model Brand ASRock Model H110 Pro BTC+ Supported CPU CPU Socket Type LGA 1151 CPU Type Supports 7th and 6th Generation Intel Core i7/i5/i3 / Pentium / Celeron Processors (Socket 1151) * Not Compatible with Intel 8th Gen CPUs Supported CPU Technologies Turbo Boost Technology 2.0 Chipsets Chipset Intel H110 Onboard Video Onboard Video Chipset Supports Intel HD
Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics Gen9 LP, DX 11.3, DX12
HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel CPU)
HWA Encode/Decode: VP8, HEVC 8b;
GPU/SW Encode/Decode: VP9, HEVC 10b (For 6th Gen Intel CPU) Max. shared memory 1024MB** Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports Accelerated
Media Codecs: HEVC, VP8, VP9 Supports HDCP with DVI-D Port Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port * Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** The size of maximum shared memory may vary from different operating systems. Memory Number of Memory Slots 2×288pin Memory Standard DDR4 2400/ 2133 non-ECC, un-buffered memory* * 7th Gen Intel CPU supports DDR4 up to 2400; 6th Gen Intel CPU supports DDR4 up to
2133. Maximum Memory Supported 32GB * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 1 x PCI Express 3.0 x16

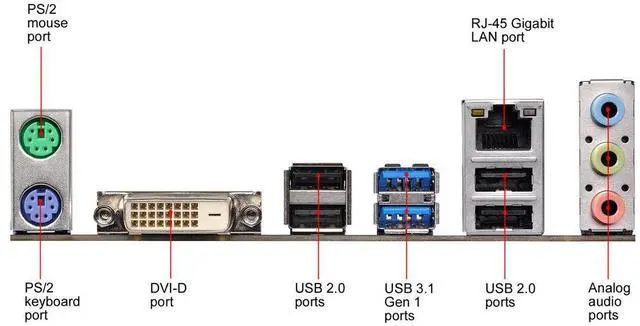

Slot (PCIE2: x16 mode)* * Supports NVMe SSD as boot disk PCI Express x1 12 x PCI Express 2.0 x1 Slots Storage Devices SATA 6Gb/s 4 x SATA3 6.0G b/s Connectors, support NCQ, AHCI and Hot Plug* * If M2_1 is occupied by a SATA-type M. 2 device, SATA3_0 will be disabled. M. 2 1 x M. 2 Socket, supports M Key type 2230/2242/2260/2280 M. 2 SATA3 6.0G b/s module Onboard Audio Audio Chipset Realtek ALC887 Audio Channels 7.1 CH HD Audio * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Supports Surge Protection Onboard LAN LAN Chipset Intel I219-V Max LAN Speed 10/100/1000Mbps Rear Panel Ports Back I/O Ports 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x DVI-D Port 4 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD
Audio Jacks: Line in / Front Speaker / Microphone Internal I/O Connectors Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) Other Connectors 1 x Print Port Header 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (4-pin) 2 x PCIe Power Connectors 1 x SATA Power Connector 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. Physical Spec Form Factor ATX Dimensions (W x L) 12.0" x 8.2" Power Pin 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector Windows Compatibility Windows 11 Supported Features
Features Unique Feature: ASRock Super Alloy - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 64MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.05V Voltage multi-adjustment
Software and UEFI: Software - ASRock APP Charger - ASRock XFast LAN UEFI - ASRock Instant Flash * These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Hardware Monitor: - CPU, Chassis temperature sensing - CPU, Chassis Fan Tachometer - CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU, Chassis Fan multi-speed control - CASE OPEN detection -
Voltage monitoring: +12V, +5V, + 3.3V,
CPU Vcore OS: - Microsoft Windows 10 64-bit (For 7th Gen Intel CPU) - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel CPU) * To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required.
Certifications: - FCC, CE

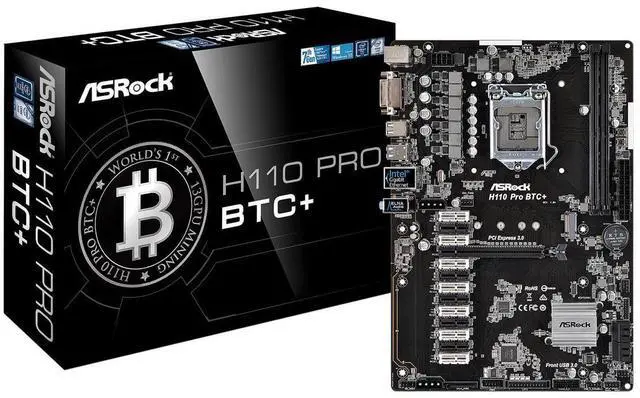

Packaging Package Contents Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M. 2 Socket
