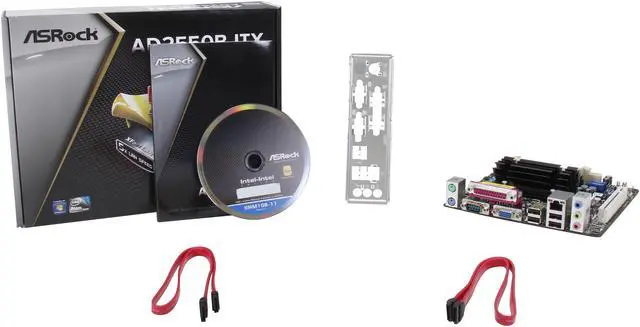

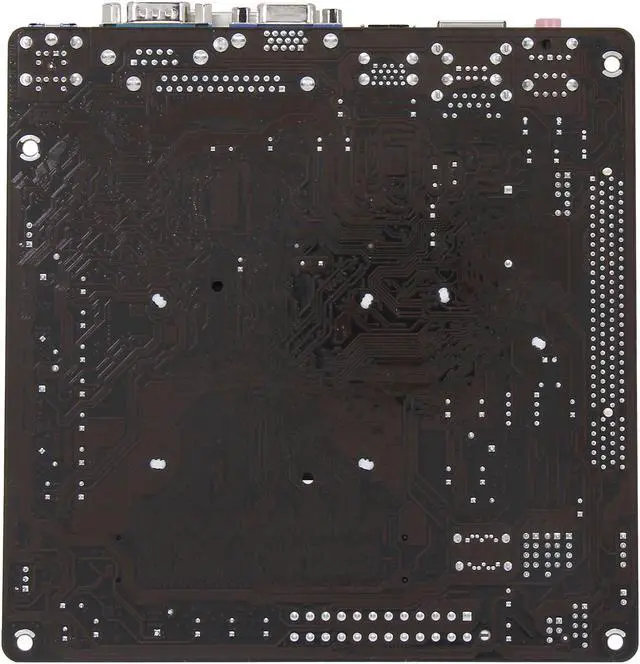

ASRock AD2550B-ITX Intel Dual-Core Atom D2550 1.86 GHz Intel NM10 Mini ITX Motherboard / CPU / VGA Combo
- Intel Atom
- DDR3 1066/800
- Intel PowerVR SGX545
Specs
Reviews (3)
Learn more about the ASRock AD2550B-ITX
| Brand | ASRock |
|---|---|
| Model | AD2550B-ITX |
| Combo Type | Motherboard / CPU / VGA Combo |
| CPU | Intel Dual-Core Atom D2550 1.86 GHz |
|---|---|
| With Cooler | Yes |
| CPU Type | Intel Atom |
|---|
| North Bridge | Intel NM10 |
|---|
| Number of Memory Slots | 2x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3 1066/800 |
| Maximum Memory Supported | 4GB |
| PCI Slots | 1 x PCI Slot |
|---|
| SATA | 2 x SATA 3.0Gb/s |
|---|
| Onboard Video Chipset | Intel PowerVR SGX545 |
|---|
| Audio Chipset | VIA VT1705 |
|---|---|
| Audio Channels | 5.1 Channels |
| LAN Chipset | Realtek 8105E |
|---|---|
| LAN Speed | 10/100Mbps |
| PS/2 | 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | 1 x D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x IR header 1 x CIR header CPU/Chassis FAN connector 24 pin ATX power connector Front panel audio connector |
| Features | Solid Capacitor for CPU power Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies Supports Graphical UEFI, AXTU, Crashless BIOS Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | October 09, 2013 |
|---|
