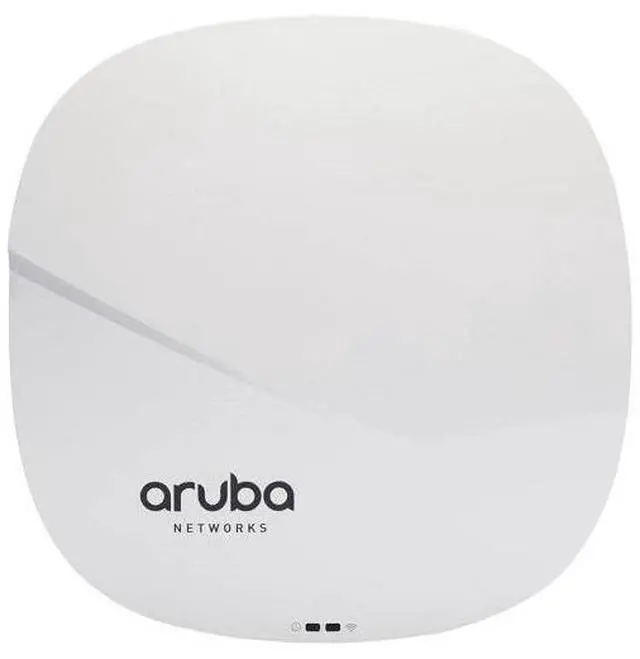

Internationa Version HPE Aruba Instant IAP-325 (RW) - JW325A 2 x 1000Base-T (PoE+) - RJ-45 wireless access point

Product

Specifications

General
Device Type Wireless access point
Ruggedized Design Indoor
Width 8 in
Depth 8 in
Height 2.2 in
Weight 33.51 oz
Networking
Form Factor In-ceiling
Connectivity Technology Wireless
Data Transfer Rate 1733 Mbps
Line Coding Format CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Data Link Protocol IEEE 802.11 b, IEEE 802.11 a, IEEE 802.11 g, IEEE 802.11 n, IEEE 802.11 ac
Spread Spectrum Method OFDM, DSSS
Frequency Band 2.4 GHz, 5 GHz
Performance Concurrent data rate (5 GHz): 1733 Mbps | Concurrent data rate ( 2.4
GHz): 600 Mbps
Capacity Wireless clients: 255 | BSSIDs per radio: 16
Features Auto-sensing per device, auto-uplink (auto MDI/MDI-X), DFS support, Quality of Service (QoS), Trusted Platform Module (TPM), Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, enhanced ClientMatch, Aruba Beacons Bluetooth Low-Energy (BLE) technology, wireless intrusion protection, Air Monitor (AM), Energy-Efficient Ethernet (EEE)
Compliant Standards IEEE 802.11 b, IEEE 802.11 a, IEEE 802.3 af, IEEE 802.11 g, IEEE 802.11 n, IEEE 802.3 at, IEEE 802.3 az, IEEE 802.11 ac
Antenna
Antenna Internal
Antenna Qty 8
Directivity Omni-directional
Expansion / Connectivity
Interfaces 2 x 1000Base-T (PoE+) - RJ-45 | 1 x USB 2.0 - Type A | 1 x serial - RJ-45
Miscellaneous
Included Accessories 2 x ceiling mounting clip
MTBF 739, 935 hours
Compliant Standards EN 60950, IEC 60950, UL 60950, CB, FCC, R&TTE, EN 60601-1-2, cTUVus, EN 300 328, EN 301 489, EN 60601-1-1, LVD 72/23/EEC, EN 301 893
Power
Power Over Ethernet (PoE) Supported PoE+
Power Consumption Operational 20 Watt
Software / System Requirements
OS Provided InstantOS
Dimensions & Weight (Shipping)
Shipping Width 12.4 in
Shipping Depth 10.4 in
Shipping Height 3.9 in
Shipping Weight 2.98 lbs
