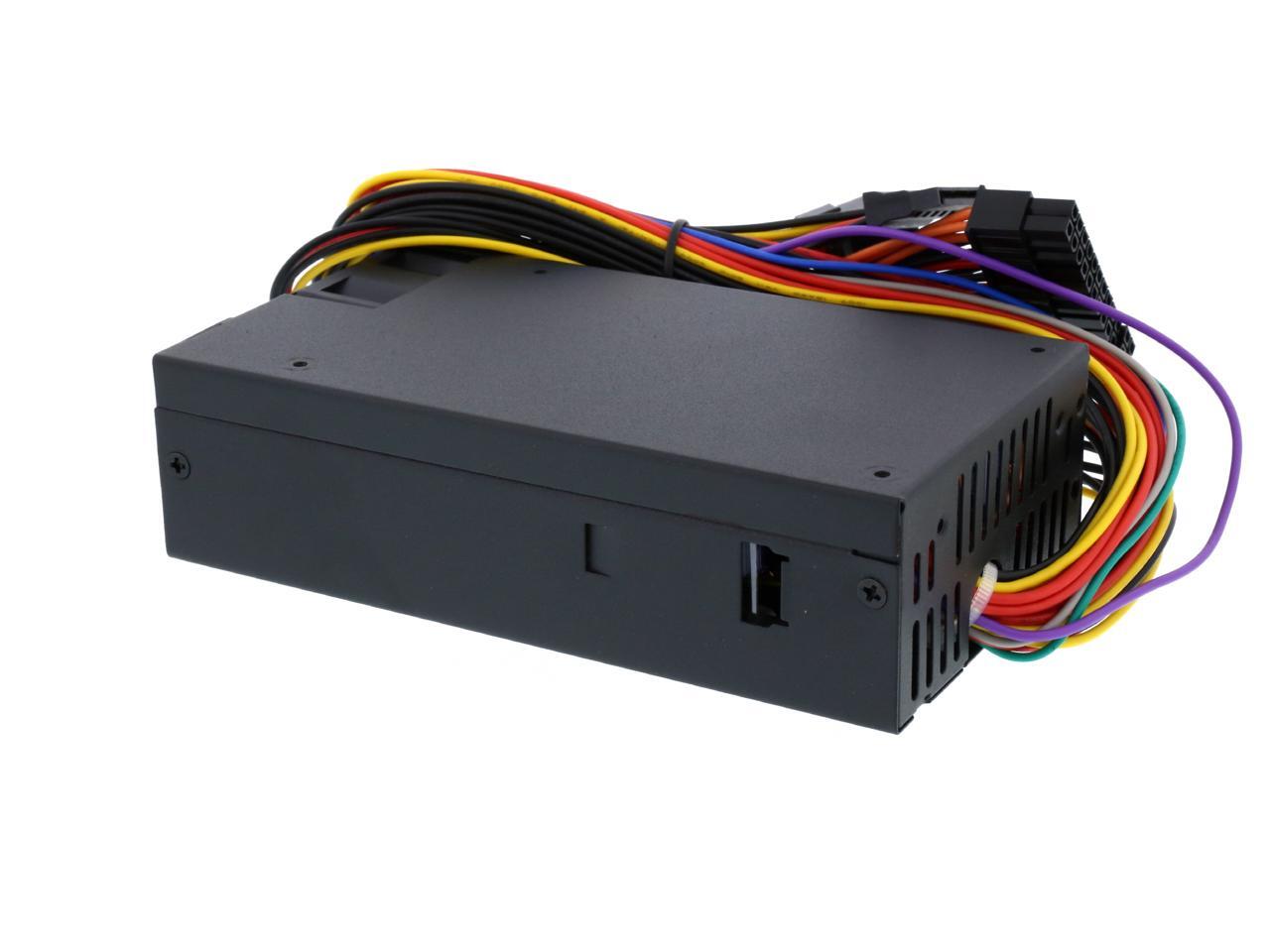

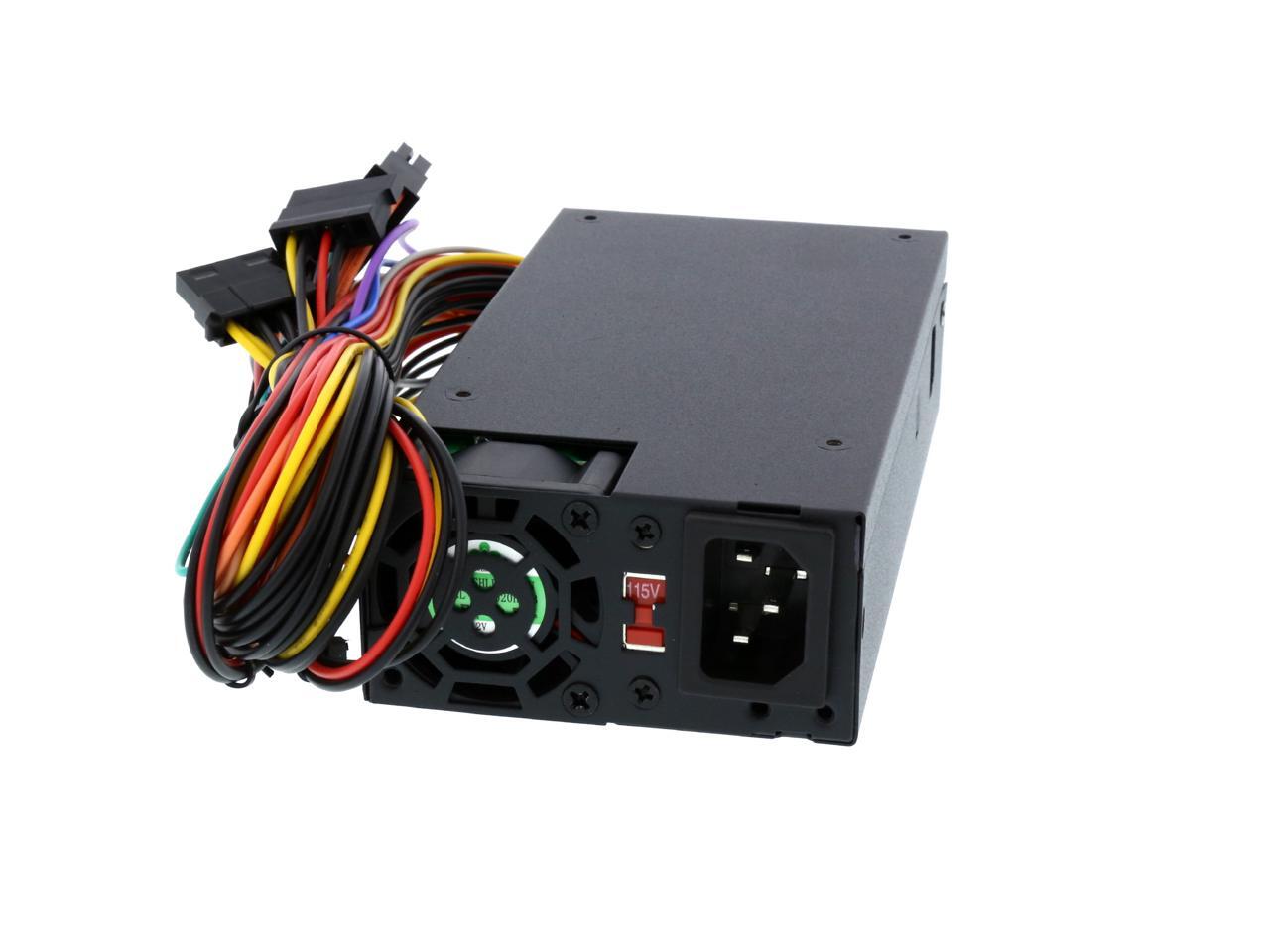

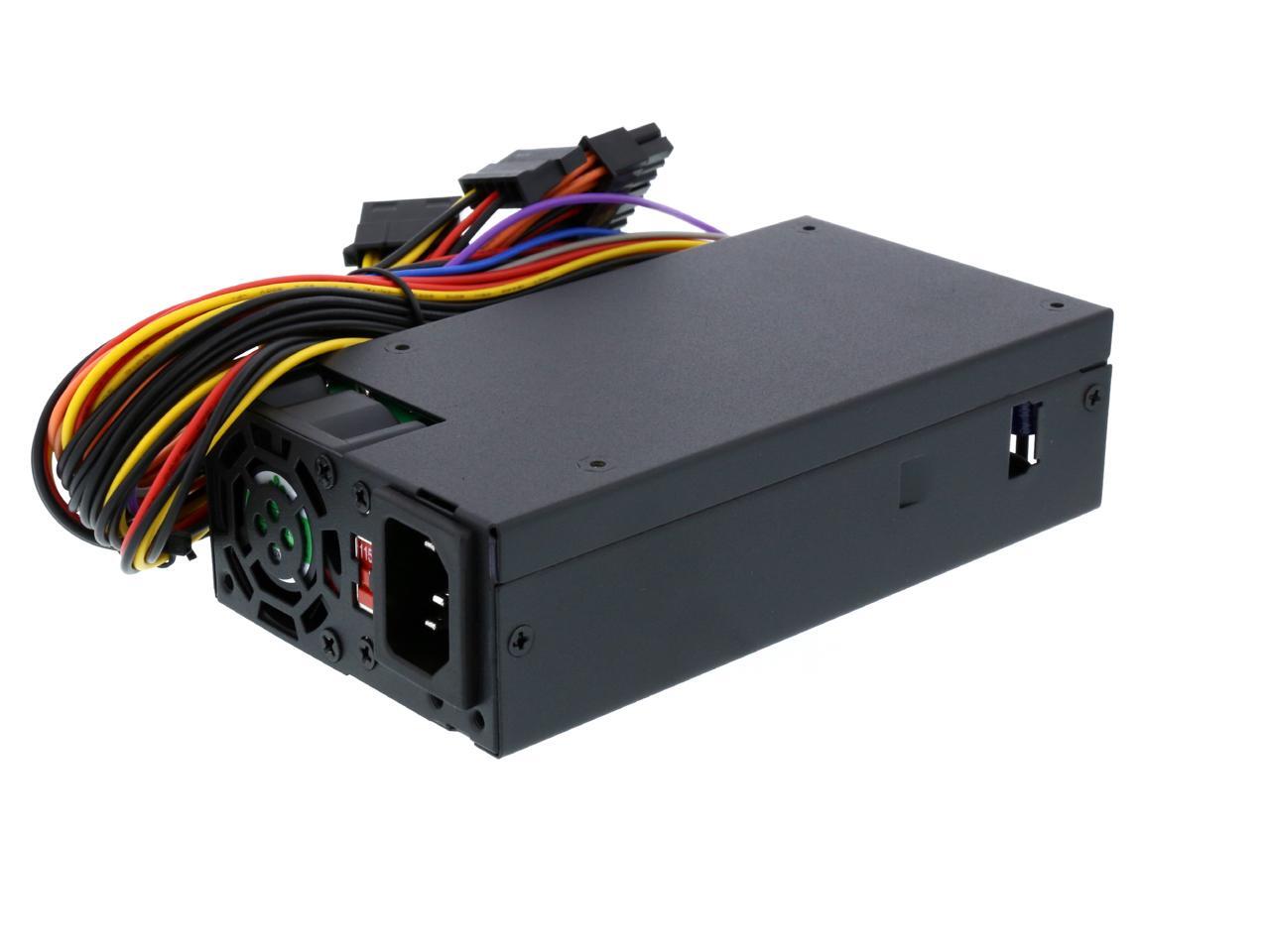

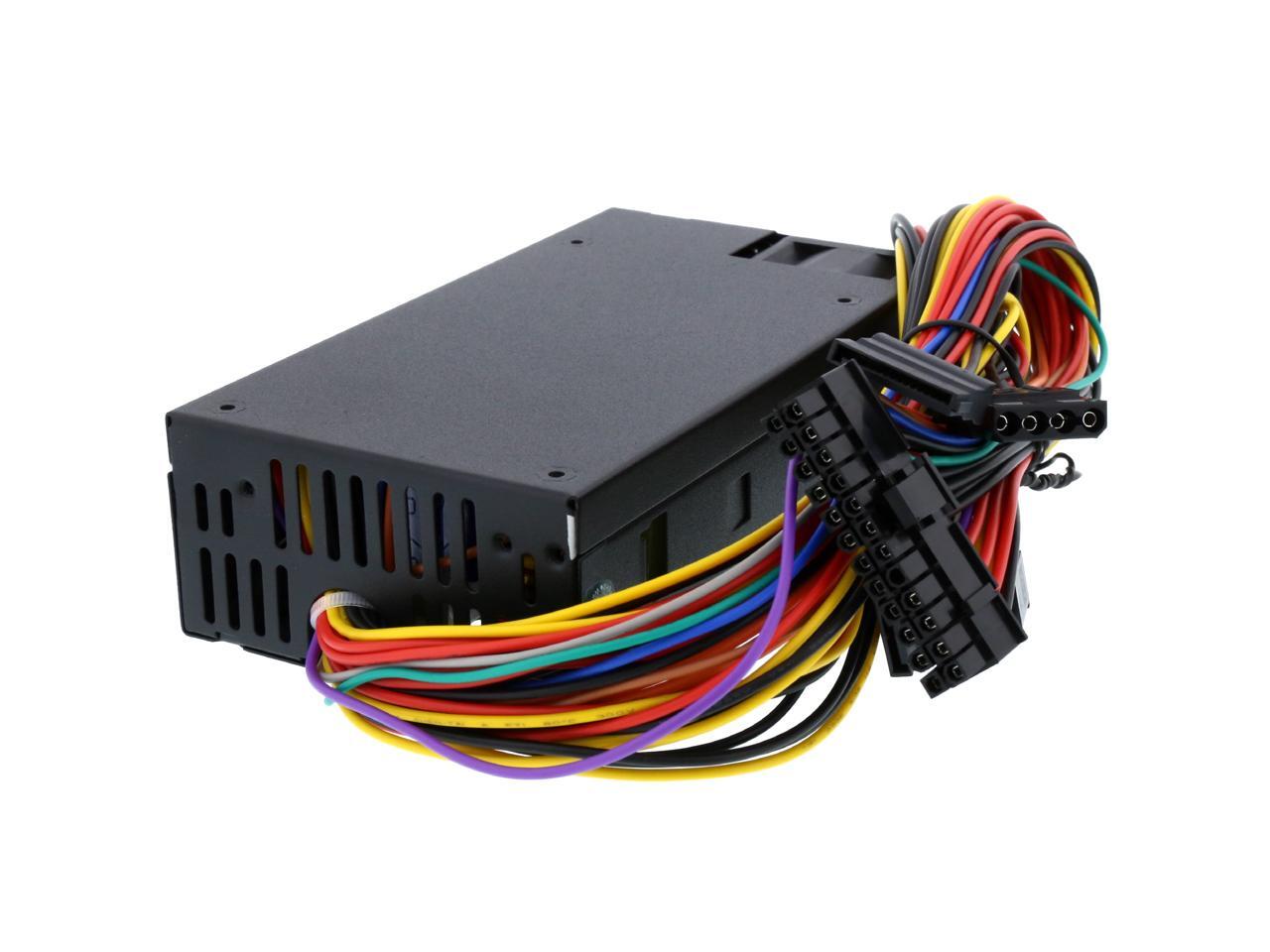

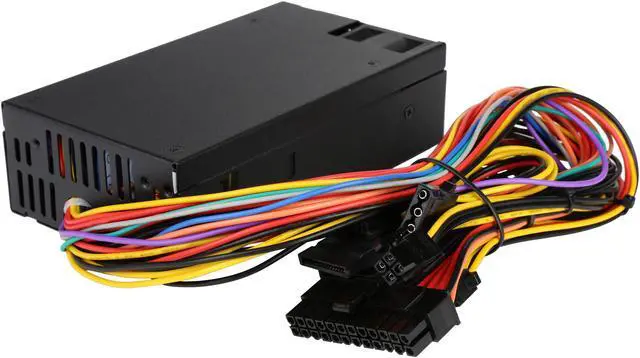

APEVIA ITX-AP300W 300 W Mini ITX Power Supply

(9) Write a Review
Specs
Reviews (9)

Learn more about the APEVIA CORP. ITX-AP300W

General
Brand APEVIA
Model ITX-AP300W
Details
Type Mini ITX
Maximum Power 300 W
Fans 1 x 40mm Double Ball Bearing Fan
Main Connector 20+4Pin
+12V Rails Single
SATA Power Connector 2
Max PSU Length 150 mm

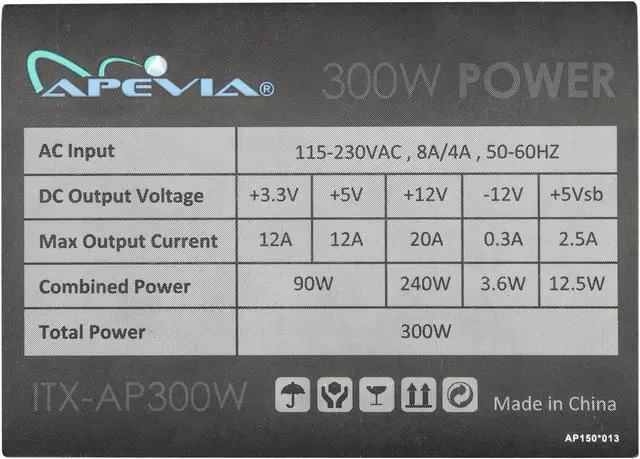

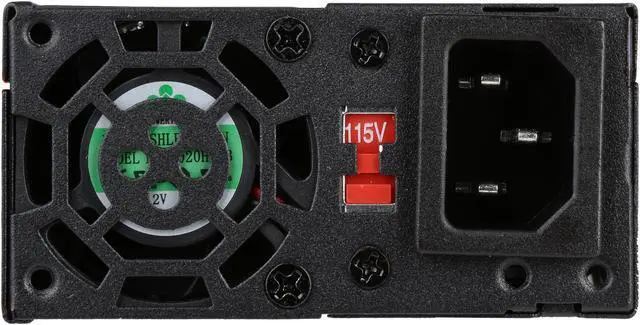

Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 8A @ 115V, 4A @ 230V
Output +3.3V@12A, +5V@12A, +12V@20A, [email protected], [email protected]

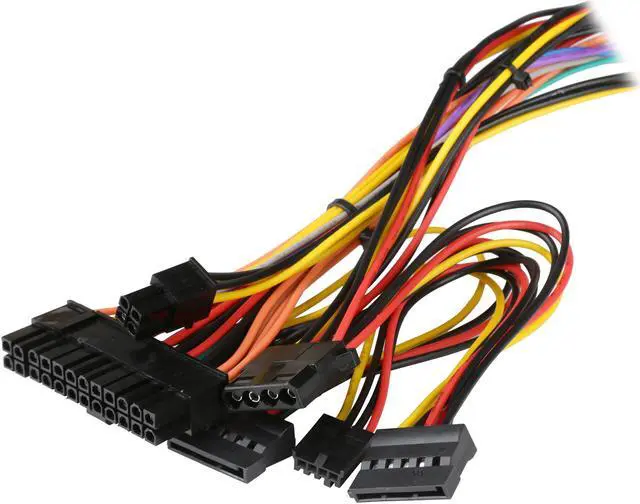

Connectors 1 x 20/24pin Main Power
1 x P4 12V
2 x 4Pin Peripheral
2 x Serial ATA
1 x Floppy
Dimension & Weight

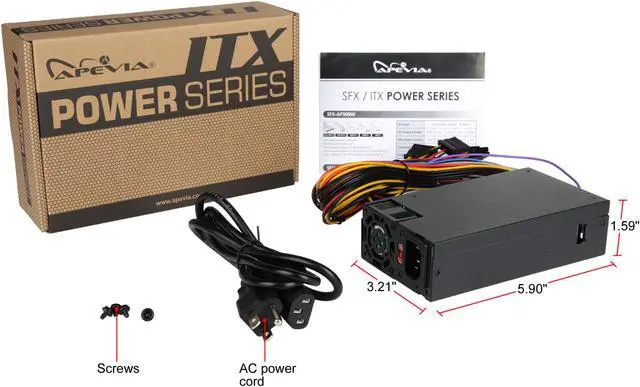

Dimensions 1.59" x 3.21" x 5.90"
Weight 1.80 lbs.
Additional Information
First Listed on Newegg October 24, 2016
