The new generation of VP550 PLUS is crafted for quality, performance and incredible value.
This entry-level solution is rated from 500W to 650W, saving energy through its high efficiency of up to 85% efficient and is 80 PLUS® Standard certified.
Delivering up to 85% efficiency,
the VP PLUS series utilizes active PFC, Japanese capacitors, and provides efficiency during max and low loads—living up to the performance standards that we are known for.
3 Year Warranty:
We stand by the quality and safety of the VP PLUS Power Supplies, offering a 3-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.
AC INPUT: 100-240V
120mm Silent Fan
The 120mm Silent Fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of operation.
Features a Thermal Manager, an advanced low voltage fan control for optimal heat & noise management andwill allow your PSU to stay at an optimal temperature.
Single 12V Rail Design
VP PLUS series is equipped with strong single +12V rail. The higher-ranking performance with high load capabilities ensures maximum CPU & GPU compatibility.

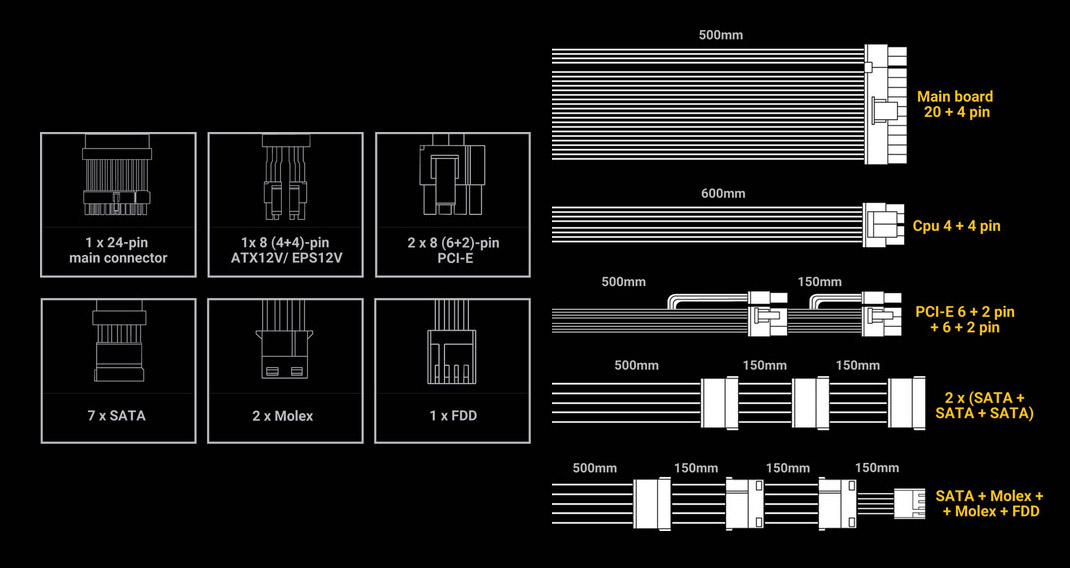

Cable Qty & length
- Continuous Power - Guaranteed 550W Continuous Power from Antec
- 80 PLUS® certified - Up to 85% efficient, to reduce your electricity bill
- AQ3 - Antec Quality 3 year warranty
- 120mm Silent Fan
- Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
- CircuitShield™ - Full suite of industrial grade protections: UVP/OVP/SCP/OPP/NLO
- Multi PCI-E - 2 PCI-E connectors for multiple GPU support
|Dimension (W x L x H)||140(D)*150(W)*86(H)|
|Input Voltage||100-240 VAC ±10%|
|Input Frequency Range||47Hz-63Hz|
|PFC||Active PFC (>0.9 typical)|
|Power Good Signal||100-500ms|
|Fan||120mm Silent Fan|
|Connector||1 x MB 24(20+4) Pin|
|1 x 8(4+4) Pin EPS 12V|
|2 x 8(6+2) Pin PCI-E|
|7 x SATA|
|2 x Molex|
|1 x FDD|
|Net Weight||1.78 Kgs|
|Gross Weight||2.20 Kgs|
