ASUS TUF GAMING B550-PLUS (WI-FI) AM4 ATX AMD Motherboard- Number of Memory Slots: 4x288pin (DDR4)
- Memory Standard: DDR4 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 4000 G-Series Processors)
DDR4 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 Series / 3000 Series Desktop Processors)*
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- PCI Express 3.0 x16: 1 x PCI Express 3.0 x16*
* Running at x4 mode.
- Onboard Video Chipset: Supported only by CPU with integrated graphic
- Model #: TUF GAM B550-PLUS Wi
- Return Policy: View Return Policy

ASUS PRIME H310M-E LGA 1151 (300 Series) uATX Intel Motherboard- Memory Standard: DDR4 2666/ 2400/ 2133
*The maximum memory frequency supported varies by processor.
**DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Generation 6-core or higher processors; DDR4 2400MHz and higher memory modules will run at max. 2400MHz on Intel 8th Generation 4-core processors.
***Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
- Number of Memory Slots: 2x288pin (DDR4)
- Audio Chipset: Realtek ALC887
- PCI Express 3.0 x16: 1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
- Model #: PRIME H310M-E
- Return Policy: View Return Policy

ASUS PRIME H310M-E R2.0 LGA 1151 (300 Series) Micro ATX Intel Motherboard- Memory Standard: DDR4 2666/ 2400/ 2133
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.
- Number of Memory Slots: 2x288pin (DDR4)
- Audio Chipset: Realtek ALC887
- PCI Express 3.0 x16: 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
- Model #: PRIME H310M-E R2.0
- Return Policy: View Return Policy

ASUS H81M-K LGA 1150 uATX Intel Motherboard- Memory Standard: DDR3 1600/ 1333/ 1066
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 MHz.
- Number of Memory Slots: 2x240pin
- PCI Express x16: 1 x PCI Express x16
- Audio Chipset: Realtek ALC887
- Model #: H81M-K
- Return Policy: View Return Policy

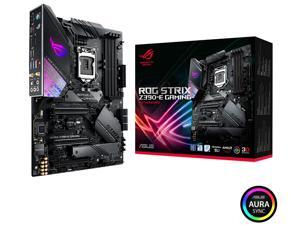

ASUS ROG Strix Z390-E Gaming LGA 1151 (300 Series) ATX Intel Motherboard- Memory Standard: DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Number of Memory Slots: 4x288pin (DDR4)
- Audio Chipset: ROG SupremeFX S1220A High Definition Audio CODEC
- PCI Express 3.0 x16: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
- Model #: Strix Z390-E Gaming
- Return Policy: View Return Policy

ASUS ROG Maximus XI Hero (Wi-Fi) Z390 Gaming Motherboard LGA 1151 (300 Series) ATX Onboard 802.11 ac- Memory Standard: DDR4 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Number of Memory Slots: 4x288pin (DDR4)
- Audio Chipset: ROG SupremeFX S1220 High Definition Audio CODEC
- PCI Express 3.0 x16: 2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4)
1 x PCIe 3.0 x16 (x4 mode) *
* The PCIe x16_3 slot shares bandwidth with SATA6G_5 and SATA6G_6. The PCIe x16_3 runs x2 mode by default.
- Model #: Maximus XI Hero Wi-F
- Return Policy: View Return Policy

ASUS Prime Z390-A LGA 1151 (300 Series) ATX Intel Motherboard- Memory Standard: DDR4 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133 *
* The maximum memory frequency supported varies by processor.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
- Number of Memory Slots: 4x288pin (DDR4)
- Audio Chipset: Realtek ALC S1220A High Definition Audio CODEC featuring Crystal Sound 3
- PCI Express 3.0 x16: 3 x PCI Express 3.0 x16*
* PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.
* PCIEX16_2 slot supports up to 2 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.
* Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.
* The PCIe x16_3 slot shares bandwidth with SATA_5 and SAT...
- Model #: Prime Z390-A
- Return Policy: View Return Policy

ASUS Prime X470-Pro AM4 ATX AMD Motherboard- Number of Memory Slots: 4x288pin (DDR4)
- Memory Standard: AMD Ryzen 2nd Generation Processors
DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory *
AMD Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors
DDR4 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
DDR4 2400/ 2133 MHz Un-buffered Memory
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- PCI Express 3.0 x16: AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
AMD Ryzen with Radeon Vega Graphics / 7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0 x16 (x8 mode)
- PCI Express 2.0 x16: 1 x PCI Express 2.0 x16 slots (max. at x4 mode)*
* PCIeX16_3 slot sha...
- Model #: Prime X470-Pro
- Return Policy: View Return Policy

ASUS ROG Strix Z390-H Gaming Motherboard LGA 1151 (Intel 8th and 9th Gen) ATX Gigabit LAN- Memory Standard: DDR4 4133+(OC)*/ 4000(OC)*/ 3866(OC)*/ 3733(OC)*/ 3600(OC)*/ 3466(OC)*/ 3400(OC)*/ 3333(OC)*/ 3300(OC)*/ 3200(OC)*/ 3000(OC)*/ 2800(OC)*/ 2666/ 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
- Number of Memory Slots: 4x288pin (DDR4)
- Audio Chipset: ROG SupremeFX S1220A High Definition Audio CODEC
- PCI Express 3.0 x16: 8th Gen Intel Core Processors
2 x PCIe 3.0 x16 slots (support x16, x8/x8)
Intel Z390 Chipset
1 x PCIe 3.0 x16 slot (max. at x2 mode)
- Model #: Strix Z390-H Gaming
- Return Policy: View Return Policy

ASUS Prime Z390-P LGA 1151 (300 Series) ATX Intel Motherboard- Memory Standard: DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
* The maximum memory frequency supported varies by processor
** Refer to www.asus.com for the Memory QVL (Qualified Vendors List)
- Number of Memory Slots: 4x288pin (DDR4)
- Audio Chipset: Realtek ALC887
- PCI Express 3.0 x16: 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
* For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
- Model #: Prime Z390-P
- Return Policy: View Return Policy

ASUS ROG Strix Z390-F Gaming LGA 1151 (300 Series) ATX Intel Motherboard- Memory Standard: DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Number of Memory Slots: 4x288pin (DDR4)
- Audio Chipset: ROG SupremeFX High Definition Audio CODEC S1220A
- PCI Express 3.0 x16: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
- Model #: Strix Z390-F Gaming
- Return Policy: View Return Policy

ASUS PRIME Z370-P II LGA 1151 (300 Series) ATX Intel Motherboard- Memory Standard: DDR4 4000(O.C.)*/ 3866(O.C.)*/ 3733(O.C.)*/ 3600(O.C.)*/ 3466(O.C.)*/ 3400(O.C.)*/ 3333(O.C.)*/ 3300(O.C.)*/ 3200(O.C.)*/ 3000(O.C.)*/ 2800(O.C.)*/ 2666 / 2400 / 2133
* The maximum memory frequency supported varies by processor
** Refer to www.asus.com for the Memory QVL (Qualified Vendors List)
- Number of Memory Slots: 4x288pin (DDR4)
- Audio Chipset: Realtek ALC887
- PCI Express 3.0 x16: 1 x PCIe 3.0/2.0 x16 (x16, x8/x4+x4) *
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
* PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.**
** Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.
- Model #: PRIME Z370-P II
- Return Policy: View Return Policy

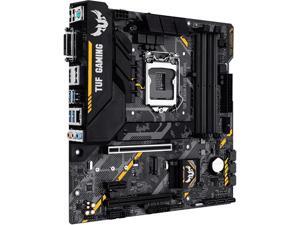

ASUS TUF B360M-PLUS GAMING LGA 1151 (300 Series) Micro ATX Intel Motherboard- Memory Standard: DDR4 2666/ 2400/ 2133
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.
*** Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
- Number of Memory Slots: 4x288pin (DDR4)
- Audio Chipset: Realtek ALC887
- PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 slot (at x16 mode)
- Model #: TUF B360M-PLUS GAMIN
- Return Policy: View Return Policy

ASUS AMD AM4 PRO WS X570-ACE ATX Workstation Motherboard with 3 PCIe 4.0 x16- Number of Memory Slots: 4x288pin (DDR4)
- Memory Standard: DDR4 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory *
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory capacity supported vary depending on the CPU you installed.
- Onboard Video Chipset: Integrated Graphics in AMD Ryzen 4000 G-Series / 3000 G-Series / 2000 G-Series Desktop Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
- Audio Chipset: Realtek S1200A High Definition Audio CODEC
- Model #: Pro WS X570-ACE
- Return Policy: View Return Policy

ASUS Prime B360-Plus LGA 1151 (300 Series) ATX Motherboard- Memory Standard: DDR4 2666/ 2400/ 2133
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.
*** Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
- Number of Memory Slots: 4x288pin (DDR4)
- Audio Chipset: Realtek ALC887
- PCI Express 3.0 x16: 1 x PCI Express 3.0/2.0 x16 slot (at x 16 mode)
1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)*
* The PCIe x1_1, PCIe x1_2 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
- Model #: PRIME B360-PLUS
- Return Policy: View Return Policy

ASUS PRIME B365M-A LGA 1151 (300 Series) Micro ATX Intel Motherboard- Memory Standard: DDR4 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
* The maximum memory frequency supported varies by processor
** DDR4 2666 MHz and higher memory modules will run at max. 2666 MHz on Intel 8th Gen. 6-core or higher processors
- Number of Memory Slots: 4x288pin (DDR4)
- Audio Chipset: Realtek ALC887
- PCI Express 3.0 x16: 1 x PCIe 3.0 x16 (x16 mode)
- Model #: PRIME B365M-A
- Return Policy: View Return Policy

ASUS PRIME H510M-E LGA 1200 Micro ATX Intel Motherboard- Memory Standard: DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133*
* 11th Gen Intel processors support 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
- Number of Memory Slots: 2x288pin (DDR4)
- Audio Chipset: Realtek ALC897/887
- PCI Express 4.0 x16: 1 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
- Model #: PRIME H510M-E
- Return Policy: View Return Policy

ASUS ROG Maximus Z690 Formula(WiFi 6E) LGA1700(Intel®12th&13th Gen) ATX gaming motherboard (PCIe® 5.0,DDR5,20+1 power stages,LiveDash 2”OLED,Five?M.2,1xPCIe 5.0 M.2- Memory Standard: DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
- Number of Memory Slots: 4x288pin (DDR5)
- Audio Chipset: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- PCI Express 5.0 x16: 2 x PCI Express 5.0 x16
* Actual support may vary by CPU.
* When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.
- Model #: 90MB18G0-M0AAY0
- Return Policy: View Return Policy

ASUS PRIME B560M-A LGA 1200 Micro ATX Intel Motherboard- Memory Standard: DDR4 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 2933 / 2800 / 2666 / 2400 / 2133*
* 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
- Number of Memory Slots: 4x288pin (DDR4)
- Audio Chipset: Realtek ALC897
- PCI Express 4.0 x16: 1 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel Optane Memory.
- Model #: PRIME B560M-A
- Return Policy: View Return Policy

ASUS TUF GAM B550M-PLUS WIFI AM4 AMD Motherboard- Number of Memory Slots: 4x288pin (DDR4)
- Memory Standard: DDR4 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 4000 G-Series Desktop Processors)*
DDR4 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 Series / 3000 Series Desktop Processors)*
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- PCI Express 3.0 x16: 1 x PCI Express 3.0 x16*
* Running at x4 mode
- Onboard Video Chipset: Supported only by CPU with integrated graphic
- Model #: TUF GAM B550M-PLUS W
- Return Policy: View Return Policy

ASUS PRIME B460M-A R2.0 LGA 1200 Micro ATX Intel Motherboard- Memory Standard: DDR4 2933 / 2800 / 2666 / 2400 / 2133
* 11th Gen Intel processors support 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
- Number of Memory Slots: 4x288pin (DDR4)
- Audio Chipset: Realtek ALC887/897
- PCI Express 4.0 x16: 1 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
- Model #: PRIME B460M-A R2.0
- Return Policy: View Return Policy
