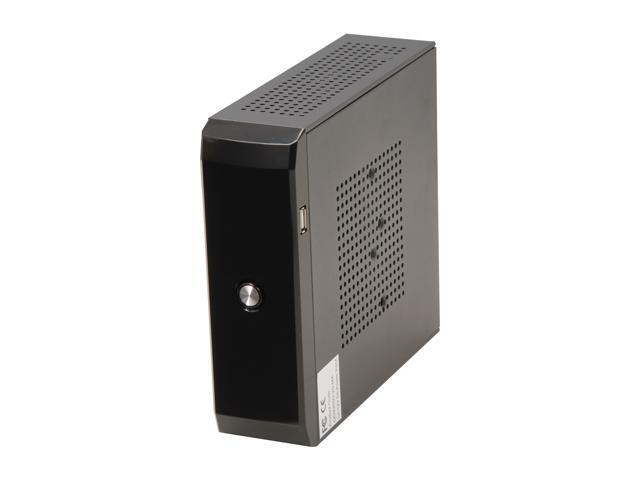

OEM Production 2550L2D-MxPC Intel NM10 Black Mini / Booksize Barebone System - OEM

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel Atom D2550 (1.86GHz, dual core)
  • Intel GMA 3650
  • 2 x 204Pin SO-DIMM DDR3 1066/800

LOADING... LOADING...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the OEM Production 2550L2D-MxPC

General

|
Brand
OEM Production
Model
2550L2D-MxPC
Color
Black

CPU Supported

|
CPU Type
Intel Atom D2550 (1.86GHz, dual core)

Chipset

|
North Bridge
Intel NM10

Memory Supported

|
Memory slot
2 x 204Pin SO-DIMM
Memory Type Supported
DDR3 1066/800
Max Memory Supported
8GB

Expansion Slots

|
PCI Express x1
1

Storage

|
Serial ATA
2 x SATA 3.0Gb/s

Graphics

|
Onboard Video
Intel GMA 3650

Audio

|
Onboard Audio
Realtek ALC662/661
Channel
6 Channel

Communications

|
LAN
Dual Broadcom 57788
Max LAN Speed
Dual 10/100/1000Mbps

Back Panel Ports

|
PS/2
2
HDMI
1
VGA
1 x D-sub
Rear USB
2 x USB 3.0 ports
4 x USB 2.0 ports
RJ45
2
Rear Audio Ports
3 jacks

Power Supply

|
Power Supply
DC12V 5A 60W Power Adapter

Physical SPEC

|
Dimensions
8.46" x 7.48" x 2.36"

Features

|
Features
Integrated Dual-core Intel Atom processor D2550

2 x SO-DIMM, Max. 8 GB, DDR3 800/1066MHz

Integrated IntelGMA 3650 HD graphics

HDMI port/VGA Dual Display

2 x SATA 3.0 Gb/s ports, PCI-E x1 slot

Dual Broadcom Gigabit LAN, USB 3.0 x 2

Color: Black (custom color is available for special order)

OS support: Windows 7, XP, Linux, FreeBSD

Applications: Vehicle/Boat PC, Set Top Box, Digital Signage, Network Appliance, Traffic Control, Kiosk, POS, Surveillance
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details
  • Return Policies
    • Return for refund within: Non-refundable
    • Return for replacement within: 30 days
  • This item is covered by Newegg.ca's Replacement Only Return Policy.
Ownership: more than 1 year
Verified Owner
5/ 5
Very Reliable DIY Firewall Appliance box

Pros: Purchased at the end of 2013! Running 24/7 it's still running strong 4+ years later. See note below about the fan.

Cons: Fan not only loud but died around the 3 year mark, causing overheating shutdowns. The fan was easy to replace and the system was not damaged, is still running strong!

Other Thoughts: I recommend preemptively replacing the fan. When I first bought this it was one of kind, particularly at this price. But now years later (2018) you can get comparable faster multicore systems, with more NIC ports. But with those systems you're gambling on the longevity. If the system specs are good enough for your use, then I still think the tried and true nature makes this a smart purchase.

Did you find this review helpful?
Ownership: more than 1 year
Verified Owner
5/ 5
Solid home firewall

Pros: - Reliable
- Quiet

Cons: - None

Other Thoughts: I've installed both pfSense and Sophos UTM. It handles both with no issues. It has never crashed on me. It just simply works.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
4/ 5
Decent build

Pros: 1. Good value for the price
2. Installed pfsense and worked fine for my DIY router.

Cons: Fan is a bit loud.

Other Thoughts: My internet connection got upgraded to gigabit (Cox) but the processor is unable to keep up. Can only get 400 mbps throughput. So look else where if this matches your usecase.

Did you find this review helpful?
Ownership: more than 1 year
Verified Owner
5/ 5
Amazing Value

Pros: amazing price
2 gigabit ethernet ports (Broadcom [bge])
2 SATA ports
small

Cons: loud CPU fan - I easily replaced it with a quiet 40mm fan
video resolution - it took some fiddling with 'xrandr' in Linux to get it to display at my monitor's native 1600 x 1200 resolution
flimsy backpanel - there is a ton of flex when connecting cables - the rest of the enclosure is rock-solid

Other Thoughts: Operating Systems Tested (all worked): Linux (Ubuntu & Trisquel), OpenBSD, FreeBSD

Included items:
- enclosure
- motherboard
- CPU + fan
- cables

Stuff you need to buy:
- hdd (2.5" only)
- memory

Not tested:
- HDMI output
- dual monitor configuration
- audio
- USB3 ports

Closing thoughts:
This computer is not meant to replace your workstation. Instead, it is a valuable machine that can be used for OS testing, router, firewall, server, SpinRite, etc.

* * * * * UPDATE (November 7, 2017) * * * * *

This computer has been running without a hiccup for me. I have loaded it up with OpenBSD and it has been serving as my home router since August, 2013 ...over four years!!! Amazing!

3 out of 3 people found this review helpful. Did you?
Ownership: 1 day to 1 week
Verified Owner
2/ 5
Barebones System with a lot of great features for the price, but seems to have major issues

Pros: -Room for 8GB of memory! (although the manufacturer only recommends a max of 4 it still seems to read up to 8 with no problems)
-2 SATA ports for lots of storage
-USB 3.0 (apparently)
-Nice overall design and lots of ports

Cons: -Chassis only has room for one hdd
-Really bad display issues (see below)

Other Thoughts: I got this system to replace another barebones box that I was using to run a Debian web server. First I tried swapping in the hard drive from the old system- this worked perfectly except for the fact that the OS was not detecting the ethernet ports, something which I couldn't fix despite attempting some configuration. I expected this as swapping HDDs between systems with different hardware rarely works without any hitches. However, next when I tried installing Debian to a fresh drive, the system would not display through either the VGA or HDMI ports after installation. I could not even get a command line to display. This problem persisted with install attempts of CentOS and Ubuntu. It's a really strange issue since since GRUB shows up normally on boot and also that the original Debian HDD worked fine, however since there really doesn't seem to be any way to avoid it when doing a fresh install of the OS, this box is pretty much a paper weight for me right now. I will be requesting a replacement and hoping for the best.

Did you find this review helpful?
Ownership: more than 1 year
Verified Owner
3/ 5
Fairly priced, not great hardware

Pros: Fairly priced, runs most OS okay

Cons: doesn't do anything well. I think the it's the processor, but the performance lag even as a pfsense router is big enough that it gets used as a test system

Other Thoughts: It's a fair price but the hardware isn't that great. I ran it with a bunch of operating systems with a 256GB SSD. Pfsense, Kali, win 7, debian. There was enough of a performance issue that I chucked it. I have an old dell poweredge server running a bunch of virtualized pfsense OS (the processors on the poweredge server are better but ram, hd, nics are better on the MxPC

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Wonderful mini PC

Pros: Small with dual nics.
Perfect for my Untangle setup

Cons: None

Other Thoughts: This was a purchased for a custom build for an Untangle system. I put in a 120 GB SSD and 8GB of ram and it all worked out really well. I am very happy with this install.

2 out of 3 people found this review helpful. Did you?
Verified Owner
4/ 5
pfSense runs without issues

Pros: - Good price
- Small form factor

Cons: - Noisy fan (not huge deal for me as I have it sitting in a utility room)
- Nuisance to boot from USB

Other Thoughts: As some other reviewers mentioned, it's difficult to get the product to boot up from a USB drive. Couple tips: a) use the USB 2.0 ports and not the 3.0; b) there is a boot override menu in the Save/Exit menu of the BIOS to select / force to boot from a specific drive. I was able to use this vs. specifying a boot order to give the USB drive priority (which didn't work) to get the computer to boot from the USB stick.

pfSense runs without issues (at least the first few days).

0 out of 1 people found this review helpful. Did you?
