Item#: N82E16856173016

Zotac ZBOXSD-ID10-U Intel NM10 2 x 200-pin SO-DIMM Intel GMA 3150 Black Mini / Booksize Barebone System

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel Atom D510 CPU (1.66 GHz, dual-core)
  • Intel GMA 3150
  • 2 x 200-pin SO-DIMM DDR2 800/667

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Take the first step to living green with the eco-friendly and energy-efficient ZOTAC ZBOX SD-ID10 mini-PC powered by Intel Atom processor and integrated Intel GMA 3150 graphics. This Barebones system delivers phenomenal performance and compatibility for a full Microsoft Windows 7 experience while maintaining best-in-class energy-efficiency and versatile placement: stand upright, lay flat, or mount to the wall or even an LCD monitor.

The ZOTAC ZBOX SD-ID10 mini-PC supports up to 4GB DDR2 RAM and a 2.5-inch SATA hard drive. It boasts Gigabit LAN and 802.11n/g/b WiFi, along with expansion capabilities including 6x USB 2.0, eSATA and a 6-in-1 memory card reader (SD/SDHC/MS/MS Pro/xD/MMC).

  • newegg Integrated Intel Atom Processor D510 Based on the 45nm process technology, the integrated dual-core Intel Atom Processor D510 with Intel Hyper-Threading Technology delivers improved digital media performance, energy efficiency (13W TDP) and the benefit of dual-core processing for basic computing needs.
  • newegg Integrated Intel GMA 3150 Graphics Core The Intel Graphics Media Accelerator 3150 (GMA 3150) graphics core is an intelligent and responsive graphics engine built into the chipset that is on the motherboard. This integration provides incredible visual quality, faster graphics performance and flexible display options without the need for a separate graphics card.
  • newegg HDMI Output (720p) The ZOTAC ZBOX SD-ID10 mini-PC features an HDMI output for connecting your high-definition A/V equipment. With the HDMI interface ensuring lossless transmission of high-quality HD video and 7.1-channel audio signals, play back HD contents on your computer and view them on your large HDTV set for more comfort.
  • newegg Wi-Fi 802.11b/g/n Connect this mini-PC to your home network without wires. Integrated 802.11n Wi-Fi gives you faster surfing speeds and higher throughput when compared to other wireless standards. Its wider range of coverage ensures better single transmission and reception.
  • newegg Flexible Placement The ZOTAC ZBOX SD-ID10 mini-PC features an ultra-slim profile for seamless integration into any home décor. Stand vertically on the desk, or mount to the wall; it’s the ideal miniature solution in your living room, kitchen or your bedroom.

Learn more about the ZOTAC ZBOXSD-ID10-U

General

|
Brand
Zotac
Model
ZBOXSD-ID10-U
Color
Black

CPU Supported

|
CPU Type
Intel Atom D510 CPU (1.66 GHz, dual-core)

Chipset

|
North Bridge
Intel NM10

Memory Supported

|
Memory slot
2 x 200-pin SO-DIMM
Memory Type Supported
DDR2 800/667
Max Memory Supported
4GB

Storage

|
Serial ATA
1 x SATA 3.0Gb/s

Graphics

|
Onboard Video
Intel GMA 3150

Audio

|
Channel
8 Channel

Communications

|
Max LAN Speed
10/100/1000Mbps
Wireless LAN
802.11 b/g/n

Extension Bays

|
2.5" Internal Bays
1

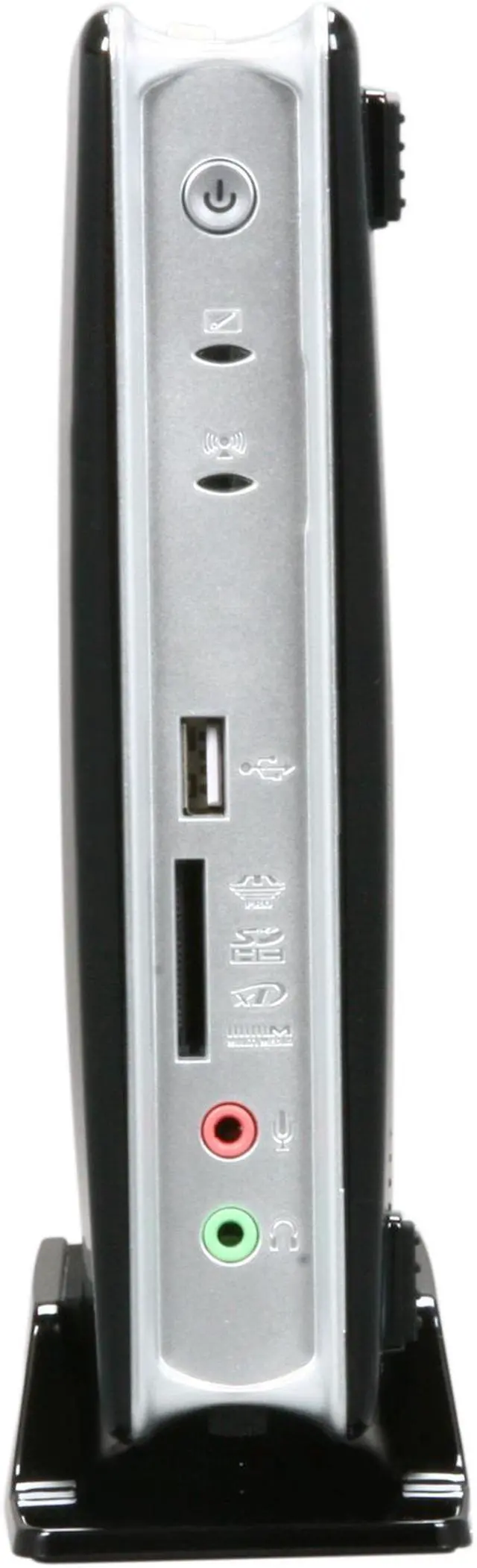

Front Panel Ports

|
Front USB
2 x USB 2.0 ports (one @front, one @top)
Front Audio Ports
2 jacks
Card Reader
6-in-1 Memory card reader (MMC/SD/SDHC/MS/MS Pro/xD)

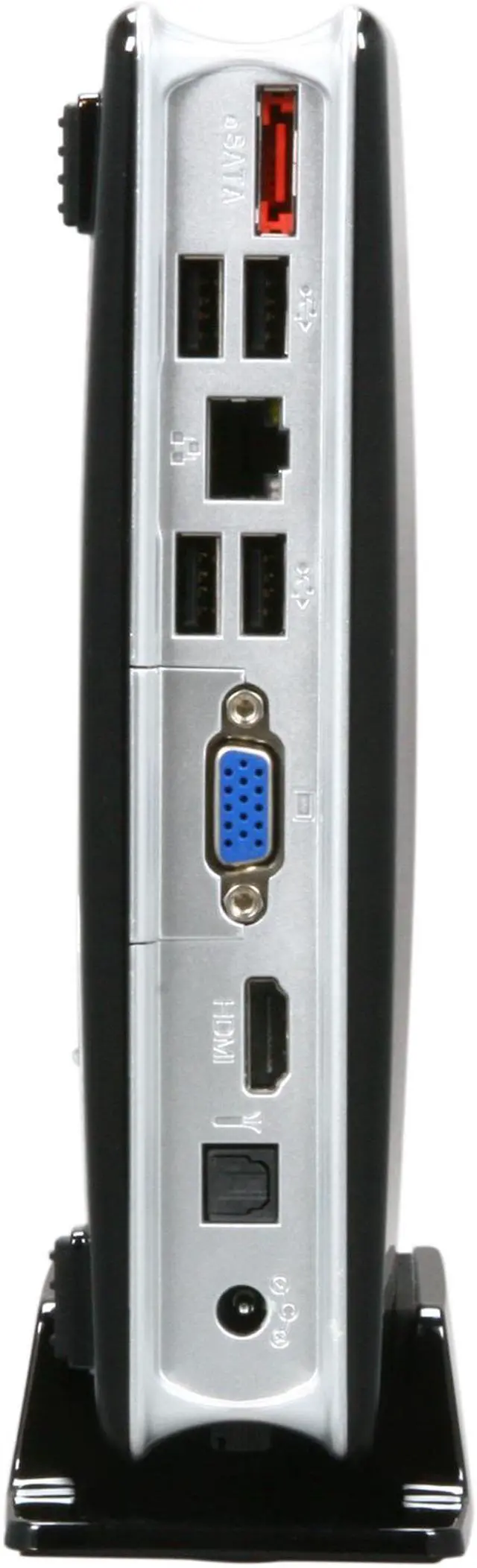

Back Panel Ports

|
HDMI
1
VGA
1 x D-sub
Rear USB
4
Rear e-SATA Ports
1
RJ45
1
Rear S/PDIF Out
1 x Optical output

Power Supply

|
Power Supply
DC19V

Physical SPEC

|
Dimensions
7.4" x 7.4" x 1.73"
Weight
4 lbs.

Features

|
Features
Intel HyperThreading technology

Intel ClearVideo (SD) technology

Microsoft DirectX 9 compatible

OpenGL 1.5 compatible

Energy-efficient computing
