GIGABYTE Z390 M GAMING LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard

Ships from Canada.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Supports Intel 8th & 9th Gen Core i9/i7/i5/i3, Celeron, and Pentium Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Integrated I/O Shield
  • Intel Optane Memory Ready
  • 10+2 Phase Digital VRM
  • Intel Gigabit LAN
  • RGB Lighting Effect in Full Colors
  • Smart Fan 5 with Hybrid Fan Headers with FAN STOP
  • USB 3.1 Gen 2 Type-A & Type-C
  • Dual M.2
  • CEC 2019 Ready

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
Z390 Z390
Intel Z390 GAMING Motherboard with 10+2 Digital PWM Design, 2-Way CrossFire™ Multi-Graphics, USB 3.1 Gen2 Type-A + Type-C, Intel GbE LAN with cFosSpeed, Smart Fan 5, Dual M.2, Dual Armor with Ultra Durable™ Technology, CEC 2019
  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New 10+2 Phases Digital PWM Design
  • High Quality Audio Capacitors
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
  • Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
  • Intel® Native USB 3.1 Gen2 Type-A + Type-C
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Intel® Gigabit LAN with cFosSpeed
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • Support RGB Lighting Effect in Full Colors
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • Intel® Optane™ Memory Ready
Z390
Z390
  1. Thermal Armor with Built-in RGB LED
  2. Integrated I/O Shield
  3. HDMI
  4. USB 3.1 Gen2 Type-A
  5. USB 3.1 Gen2 Type-C
  6. Intel GbE LAN
  7. 2-Way SLI / 2-Way CrossFire Support
    Ultra Durable PCIe Armor
  8. Audio Noise Guard
  9. High-End Audio Capacitors
  1. RGB Pin Header
  2. All New Heatsink Design
  3. DualBIOS™
  4. Dual M.2 Connectors
  5. Dual Channel DDR4, 4 DIMMs Ultra Durable Memory Armor
  6. Supports 9th and 8th Gen Intel Core Processor
  7. 10+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Z390
Z390

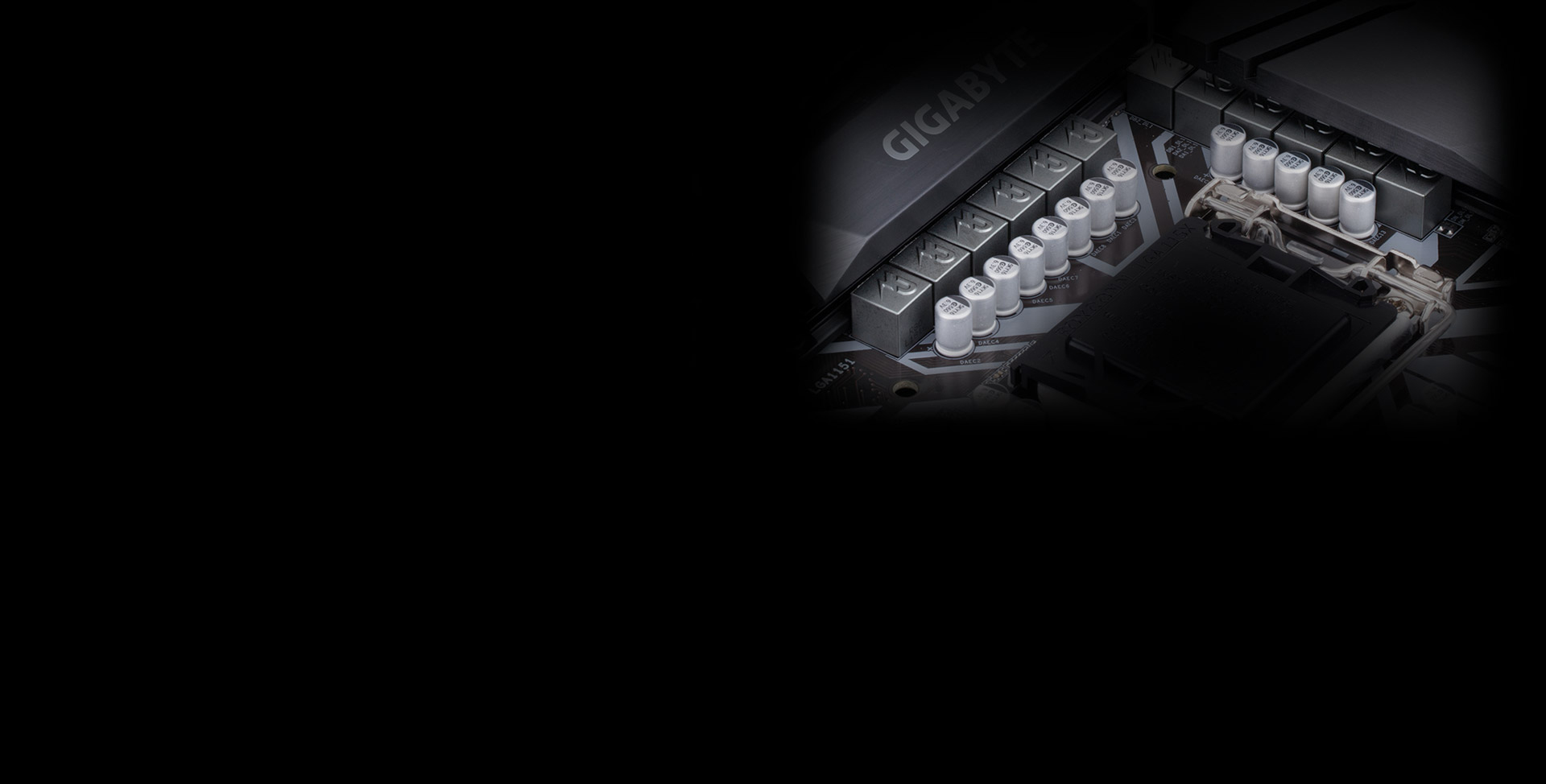

10*+2 Phases Digital VRM Design with Low RDS(on) MOSFET
Optimized for 8-Core Intel Core CPU

GIGABYTE GAMING series motherboards use a 10*+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest 8-Core Intel Core CPUs by offering incredible precision in delivering power to the motherboard's most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Benefits of Lower RDS(on) MOSFETs
  • Optimized gate charge to minimize switching losses.
  • Lower temperature, smaller size, better thermal characteristics.
Z390
Z390
Advanced Thermal Design
  1. MOSFET Heatsinks
    Multiple cuts on heatsinks improves thermal performance by increasing heat dissipation surface and maintain stylish aesthetic.
  2. Thick Thermal Pad
    Improved thickness of the thermal pad to 1.5mm, gives superior heat dissipation of MOSFETs.
Pre-installed I/O Shield

With an integrated I/O shield, building an GIGABYTE Ultra Durable PC is even easier.

Z390
Z390
Support for DDR4 XMP Up to 4000MHz and Beyond*

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their motherboard.

Z390
What is XMP?

DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

* XMP Profile support may vary depending on memory module. Please visit www.aorus.com to see the complete validated memory support list. Product features may vary by model.

Z390
2-Way SLI / 2-Way CrossFire Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

GA-AX370-Gaming 3
Immersive VR Gaming Experience
  • VR requires more performance than Full HD graphics for a steady 90FPS or greater.
  • Only Gaming PCs can provide the best VR experience.
    Recommended configuration for VR Gaming PC
  • Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output
  • CPU: Intel 8th Gen. Core i3 equivalent or greater
  • Motherboard: AORUS/GIGABYTE Z390 motherboards
  • Memory: 8GB RAM or greater
  • USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
  • OS: Windows 10 64-bit or newer

*Please check VR vendor website for full system requirements.
To create a seamless VR experience GIGABYTE GAMING Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that GIGABYTE GAMING has the tools you need to start your journey in VR.

Z390
Support RGB Lighting Effect in Full Color

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip.

Z390
Z390
Z390 Z390
High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Z390
Intel GbE LAN with cFosSpeed Internet Accelerator Networking

Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Z390 Z390
The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

Z390
Dual-Mode M.2 Slot Design
Support PCIe NVMe + SATA SSDs

GIGABYTE Motherboards are built with dual M.2 slots. With a PCIe NVMe + SATA dual-mode design on M.2 slots. This configuration is designed for flexibility and adaptation to fit most users' and gamers' requests.

PCIe / SATA Dual Mode Support
Z390
Z390
Z390
The Z390 Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.
Z390
Native Intel USB 3.1 Gen 2 Controller

Intel's native USB 3.1 host controller provides USB 3.1 ports with speeds up to 10Gbps .With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices.

Z390 Z390
Z390
Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Z390

Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

Z390
  • 4 Fan / Water Pump Connectors
  • 6 Temperature Sensors
  • All Fan Pin Headers Upgraded to Hybrid Fan Headers
  • Interoperable Fans and Sensors
  • Intuitive UI for Fan Control
Z390

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Z390
Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Z390
New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Z390
Z390
GIGABYTE Patented Double Locking Bracket
Z390
Ultra Durable PCIe Armor
Industry Leading Ultra Durable PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Z390
Z390
Ultra Durable Memory Armor

GIGABYTE exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.

Solid Pin Power Connectors

Z390 motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors for offering stable power supply while CPU overloading.

Z390
Solid Pin Power connector advantages
  • Larger contact area for electricity
  • More metal quantity to sustain higher power and generated heat
  • Ultra durable and longer lifespan
Z390
X399
START SULFURIZATION PROTECTION
X399

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

X399
Z390
GIGABYTE Patented DualBIOS Design

GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

X399
Z390
CEC 2019 Ready
Save power with a simple click

CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

X399
Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Z390
APP CENTER

GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

Z390
EasyTune

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

Z390
@BIOS

The GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

Z390
System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Z390
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro! *Free 14 days XSplit Gamecaster + Broadcaster Premium License.

X399
X399
  • Enjoy 14-days FREE seamless connection to any game server in the world
  • Experience up to 60% overall connection improvement
  • Receive FREE unlimited access to PC Gaming Launchpad, supporting over 800 MMO games
  • Monitor your Game Ping and Connection Statistics continuously
TriDef SmartCam | Custom Stream Modding

To facilitate being the full streaming solution each AORUS motherboard includes TriDef SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype. *Free 1 month TriDef SmartCam License.

X399
Z390
4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.

Z390
HDMI - The Next Generation Multimedia Interface

HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.




Learn more about the GIGABYTE Z390 M GAMING

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.ca's Standard Return Policy.
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Windows 10 only

Pros: n/a

Cons: Not going to ding this board because I never started it up. No Windows 7 driver support at Gigabyte's website.

Other Thoughts: Ordered this and sent it right back once I find out it has no driver support for Win 7. Perhaps that should be put in the title somewhere? I considered "upgrading" to Windows 10 but have you read the reviews on that?

1 out of 21 people found this review helpful. Did you?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Solid mATX mobo

Pros: Lots of features in a mATX package.
Easy to use bios.
Clean look and smart layout.

Cons: None

Other Thoughts: Used Gigabyte for my last 3 motherboard purchases, they have all been solid workhorses. No complaints!

Cpu: i5-9600k
Ram: ADATA XPG 16gb 3000MHz
GPU: EVGA 1070 ti FTW2

3 out of 3 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Works

Pros: -Worked out of the box
-MATX
-Easily overclocked ram and my 9600k

Cons: None

Other Thoughts: While navigable, uefi still falls behind AsRock and Asus.
You'll need a special screwdriver to remove m.2 screws from board.

2 out of 2 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Good

Pros: -mATX, the only choice
-Gigabyte quality, works great with 9900k

Cons: -none

3 out of 3 people found this review helpful. Did you?
