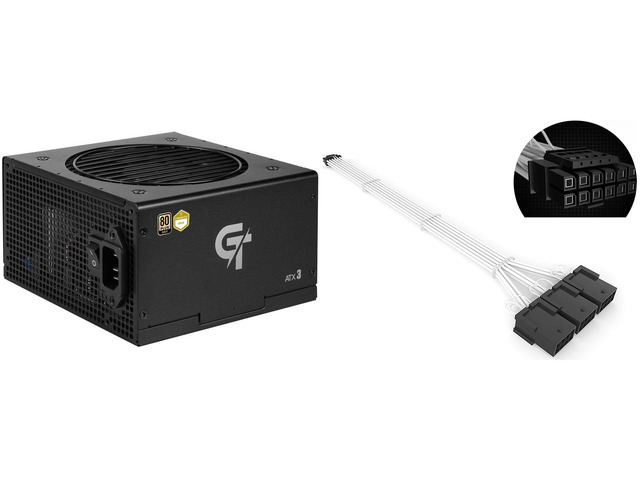

This Combo Includes 2 Items

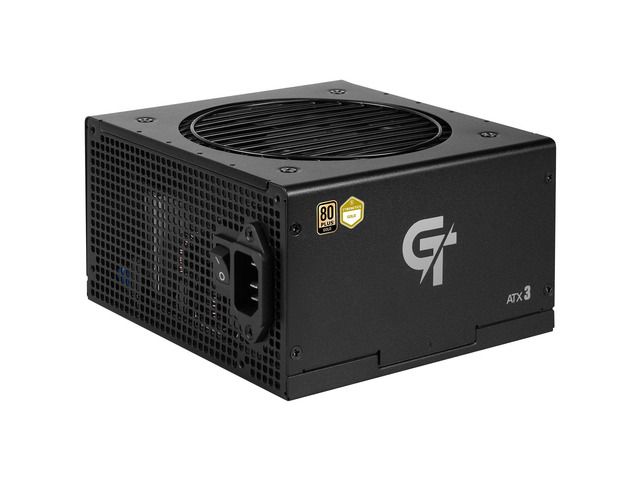

Learn more about the SAMA GT850-Black
General| Brand | SAMA |
|---|
| Model | GT850-Black |
|---|
| Series | GT Series |
|---|
Details| Type | ATX |
|---|
| Maximum Power | 850 W |
|---|
| Modular | Full Modular |
|---|
| Fans | 120mm ECO Fan |
|---|
| Main Connector | 1× 20+4pin |
|---|
| +12V Rails | 2× 4+4pin |
|---|
| PCI-Express Connector | 2×6+2pin |
|---|
| Power Good Signal | ATX |
|---|
| Hold-up Time | >11ms |
|---|
| Over Voltage Protection | Yes |
|---|
| Overload Protection | Yes |
|---|
| Input Voltage | 100-240V |
|---|
| Input Frequency Range | 50-60Hz |
|---|
| Input Current | 10A |
|---|
| Output | +3.3V@20A, +5V@20A, [email protected], [email protected], [email protected] |
|---|
| MTBF | Over 100,000 hours at 25? and 100% load excluding the DC Fan. |
|---|
Dimension & Weight| Dimensions | 140×150×86mm |
|---|
| Weight | 2.12kg |
|---|
Details| Connectors | 1 x 24-pin ATX (24-pin) 2 x ATX 12V/EPS12V (4+4-pin) 1 x 12V-2×6 3 x PCIe (6+2) 6 x SATA 2 x IDE |
|---|
General| Part Number | GT850-BKGFFXX1-US |
|---|
Details| Color | Black |
|---|
| Fan LED | No |
|---|
| Max PSU Length | 150mm |
|---|
| Protection | OPP, OVP, UVP, OCP, OTP, SCP, OPP, SIP |
|---|
| Cable Spec | (20+4P)*1 600mm (4+4P)+(4+4P)*1 600+150mm (12V-2×6)*1 600mm (6+2P)*1 600mm (6+2P)+(6+2P)*1 550+150mm (SATA+SATA+SATA+IDE)*2 500+100+100+100mm |
|---|
Package| Package Content | GT850+Cable +accessory+Quick Start Guide |
|---|
Details| Type | ATX 12V v3.1 |
|---|
| PFC | active PFC |
|---|
| +12V Rails | 12V 3.1×1 |
|---|
Additional Information| First Listed on Newegg | January 10, 2025 |
|---|
