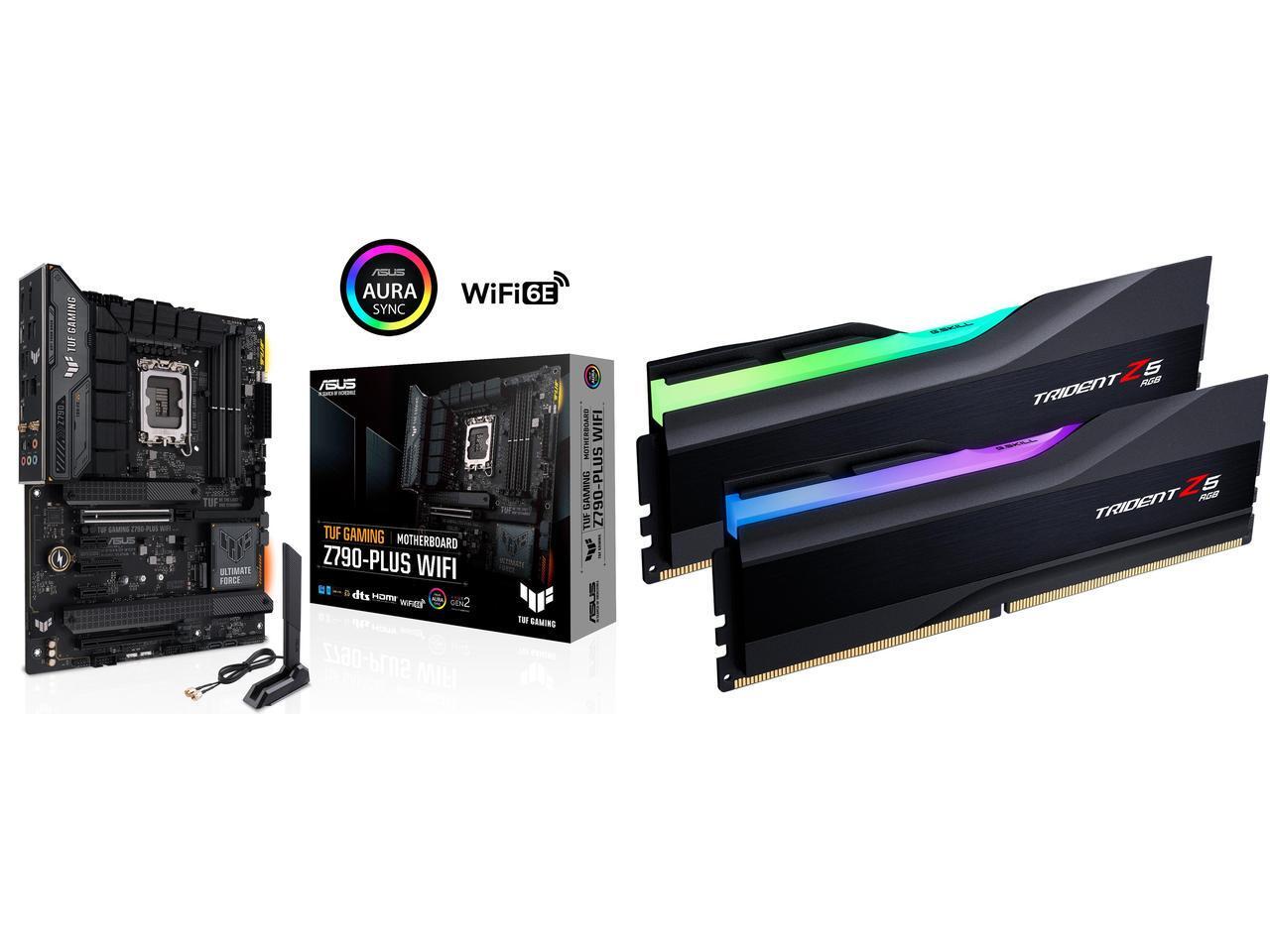

This Combo Includes 2 Items
Trident Z5 RGB series DDR5 memory is designed for ultra-high performance on DDR5 platforms. Featuring a sleek and streamlined aluminum heatspreader design in matte white, the Trident Z5 RGB series DDR5 DRAM memory is the ideal choice to build a high-performance system.
Blazing Fast DDR5 Performance
Ushering in a new era of memory performance with ultra-fast data transfer speeds, the Trident Z5 RGB is engineered to high performance and quality standards. Each Trident Z5 RGB memory module is created from hand-screened DDR5 DRAM ICs to achieve high memory performance on DDR5 platforms.
Extreme Memory Performance with Intel Platform
G.SKILL is dedicated to develop performance overclocked memory kits. Developed and optimized on the Intel platform, Trident Z5 RGB taps into the speed potential of DDR5 to bring a whole new level of performance to worldwide overclockers and PC enthusiasts.
Premium Dual-Texture Heatspreader Design
The Trident Z5 family incorporates hypercar design elements into the iconic Trident heatspreader, creating a sleek and futuristic look. Featuring a black brushed-aluminum strip inset into a matte white body, and topped with a translucent RGB light bar optimized for smooth lighting, the Trident Z5 RGB is ideal for a wide variety of PC build themes.
Streamlined RGB Light Bar
Designed with a streamlined light bar, the Trident Z5 RGB looks sleeker than ever. Featuring customizable RGB lighting through the G.SKILL lighting control software or supported third party motherboard software, personalizing the colors and lighting effects of the Trident Z5 RGB is a breeze.
Engineered for Exceptional DDR5 Experience
Each and every Trident Z5 RGB memory kit is tested under G.SKILL's rigorous validation process to ensure outstanding quality.
Sync Up with System Lighting
Want to sync up your system lighting? You can use Asus Aura*, Gigabyte RGB Fusion*, MSI Mystic Light*, or ASRock Polychrome Sync* software to personalize the colors and effects of your Trident Z5 RGB memory and compatible motherboards!
* Note: Trident Z5 RGB lighting control support through the listed third-party software may vary between motherboard models.
Best Choice Golden Award 2022
European Hardware Award 2022 "Best System Memory Series"
European Hardware Awards 2023 "Best System Memory Series"
European Hardware Awards 2023 "Best Overclocking Product"
XMP 3.0 Support
Just set and go. Programmed with the latest Intel XMP profiles, the only thing between you and overclocked performance is a simple BIOS setting.*
* Enable the XMP profile in the BIOS to reach up to the rated overclock speed of this memory kit. Maximum memory speed and system stability depends on the capability of the motherboard & CPU. The memory kit will boot at the SPD speed when BIOS settings are at default.
Limited Lifetime Warranty
All G.SKILL memory products come with a limited lifetime warranty and the G.SKILL technical team is always ready to provide consumers with complete technical support via online forum, telephone, and email.
Learn more about the ASUS TUF GAMING Z790-PLUS WIFI
Model| Brand | ASUS |
|---|
| Series | TUF |
|---|
| Model | TUF GAMING Z790-PLUS WIFI |
|---|
| Part Number | 90MB1D80-M0AAY0 |
|---|
Supported CPU| CPU Socket Type | LGA 1700 |
|---|
| CPU Type | Intel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|---|
Chipsets| Chipset | Intel Z790 |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
|---|
| Maximum Memory Supported | 192GB |
|---|
| Channel Supported | Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
|---|
Expansion Slots| PCI Express 5.0 x16 | Intel® 14th, 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot |
|---|
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x4 mode) |
|---|
| PCI Express x1 | 1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | Intel® 14th, 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
|---|
| SATA RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
|---|
Onboard Audio| Audio Channels | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
|---|
Onboard LAN| Max LAN Speed | 1 x Intel® 2.5Gb Ethernet
TUF LANGuard |
|---|
| Wireless LAN | Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
|---|
Rear Panel Ports| Back I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port |
|---|
Internal I/O Connectors| Other Connectors | Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header |
|---|
Software Feature| Windows 11 | Windows® 11, Windows® 10 64-bit |
|---|
Physical Spec| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|---|
Features| Features | ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers |
|---|
Additional Information| First Listed on Newegg | January 17, 2023 |
|---|
