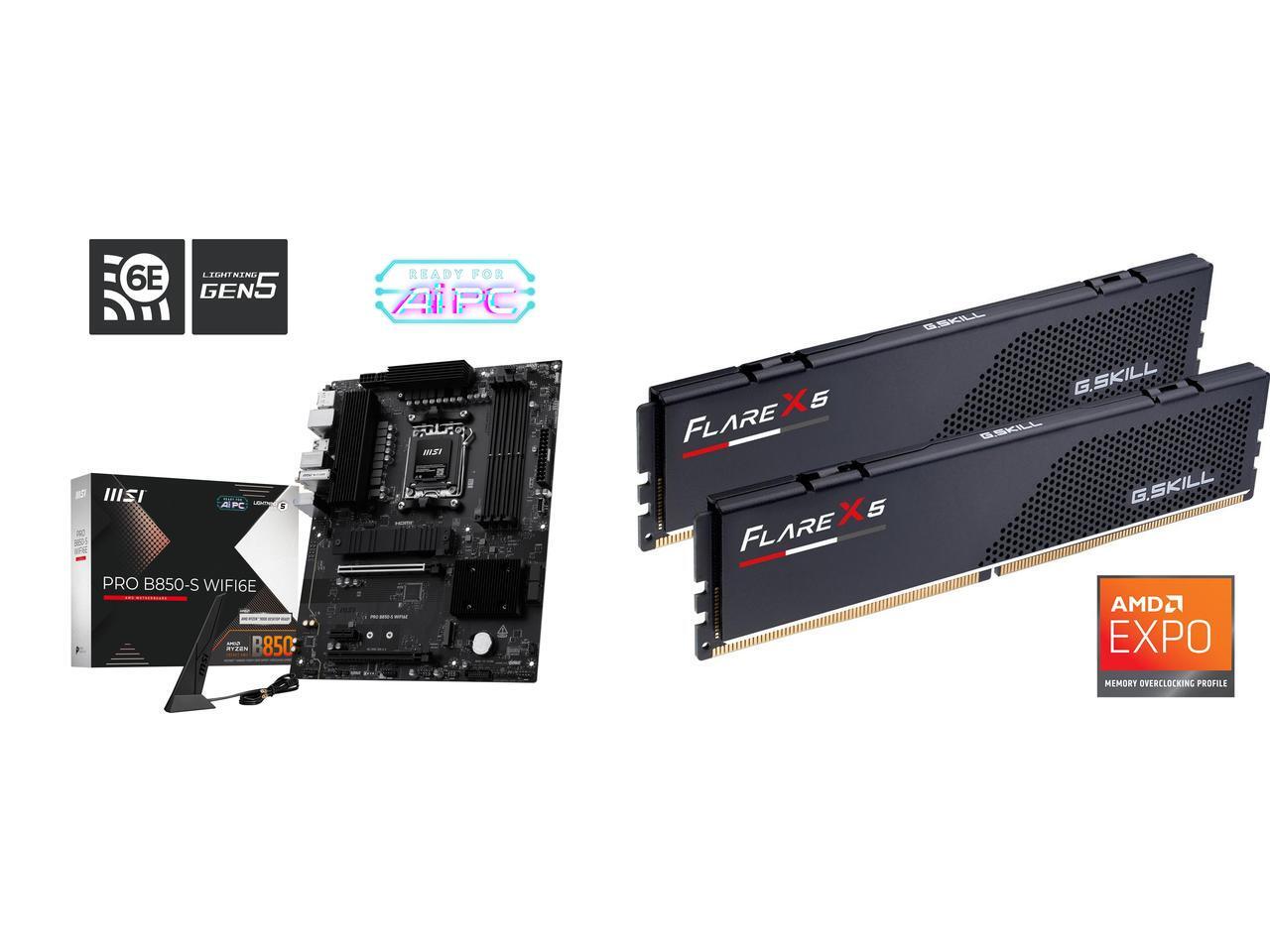

This Combo Includes 2 Items
Business Elegance
The PRO B850-S WIFI6E is a business-oriented ATX motherboard with a 12 Duet Rail Power System, constructed around the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0 M.2, 2.5G LAN, Wi-Fi 6E and DDR5 that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The PRO B850-S WIFI6E motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
- Form Factor: ATX
- Socket Type: AM5
- Chipset: AMD B850
Ultra Power - 12 Duet Rail Power System with P-PAK
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO B850-S WIFI6E is able to sustain heavy CPU power loads to support system-demanding settings:
- Digital PWM IC
- 12 Duet Rail Power System (P-PAK)
- 2 Phase SOC Power
- 1 Phase MISC Power
Frozr Design
Frozr Guard: VRM heatsink, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO.
Fortified PCIe 4.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 4.0/3.0 x16 slot (with Steel Armor and EZ PCIe Clip II)
1 x PCIe 4.0/3.0 x4 slot
1 x PCIe 3.0 x1 slot
Gen5 M.2 Connector
The PRO B850-S WIFI6E motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slot (with M.2 Shield Frozr)
1 x Gen4 x4 64Gbps slot
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
- 2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network experience.
- Wi-Fi 6E: Features the Wi-Fi 6E solution (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
- USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.
- HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Designed for AMD, Engineered for Performance
Created from high-quality hand-screened DDR5 DRAM ICs, Flare X5 memory kits are designed for performance on AMD platforms. Featuring AMD EXPO (EXtended Profiles for Overclocking) profiles, Flare X5 allows simple one-step memory overclocking through BIOS on supported motherboards.
Matte Minimalism
Available in anodized matte black, the Flare X5 memory module features a minimalistic design inspired by classic racing stripes and grills, and is ideal for a variety of build themes with its simple design.
Created for Quality
Each Flare X5 memory kit is created with hand-screened ICs and tested under G.SKILL’s rigorous validation process to ensure outstanding quality.
Compact Low-Profile Design
Featuring a low-profile height of just 33mm, the Flare X5 is an ideal choice for compact PC builds or systems with large CPU coolers*.
* Please check the specifications of your CPU cooler for actual height clearance.
AMD EXPO Support
Just set and go. Programmed with AMD EXPO overclocking profiles, the only thing that stands between you and awesome performance is a simple BIOS setting.
* Enable the EXPO profile in the BIOS to reach up to the rated overclock speed of this memory kit. Maximum memory speed and system stability depends on the capability of the motherboard & CPU.
Limited Lifetime Warranty
All G.SKILL memory products come with a limited lifetime warranty and the G.SKILL technical team is always ready to provide consumers with complete technical support via online forum, telephone, and email.
Learn more about the MSI PRO B850-S WIFI6E
Model| Brand | MSI |
|---|
| Model | PRO B850-S WIFI6E |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
|---|
| Maximum Memory Supported | 256GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Non-ECC |
|---|
| Buffer Supported | Un-buffered |
|---|
| Memory Feature | Supports CUDIMM, Clock Driver bypass mode only |
|---|
Expansion Slots| PCI Express 4.0 x16 | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E1 slot
- Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|---|
| PCI Express x4 | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|---|
| PCI Express x1 | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M2_1 slot
- Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
M2_2 slot
- Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
- Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors) |
|---|
| SATA RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|---|
Onboard Audio| Audio Chipset | Realtek ALC897 |
|---|
| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | Wi-Fi 802.11 ax |
|---|
| Bluetooth | Bluetooth 5.3 |
|---|
Rear Panel Ports| Back I/O Ports | Clear CMOS Button
1 x DisplayPort
1 x 2.5G LAN
1 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
2 x Wi-Fi / Bluetooth
3 x Audio Connectors
Flash BIOS Button
1 x HDMI
2 x USB 10Gbps Type-A
1 x USB 10Gbps Type-C |
|---|
Internal I/O Connectors| Onboard USB | 4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 10Gbps Type C ports |
|---|
| Other Connectors | 1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
4 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0) |
|---|
Physical Spec| Form Factor | ATX |
|---|
| LED Lighting | 4 x EZ Debug LED
1 x EZ Memory Detection LED |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR) |
|---|
Software Feature| Windows 11 | Supported |
|---|
Additional Information| First Listed on Newegg | October 23, 2025 |
|---|
