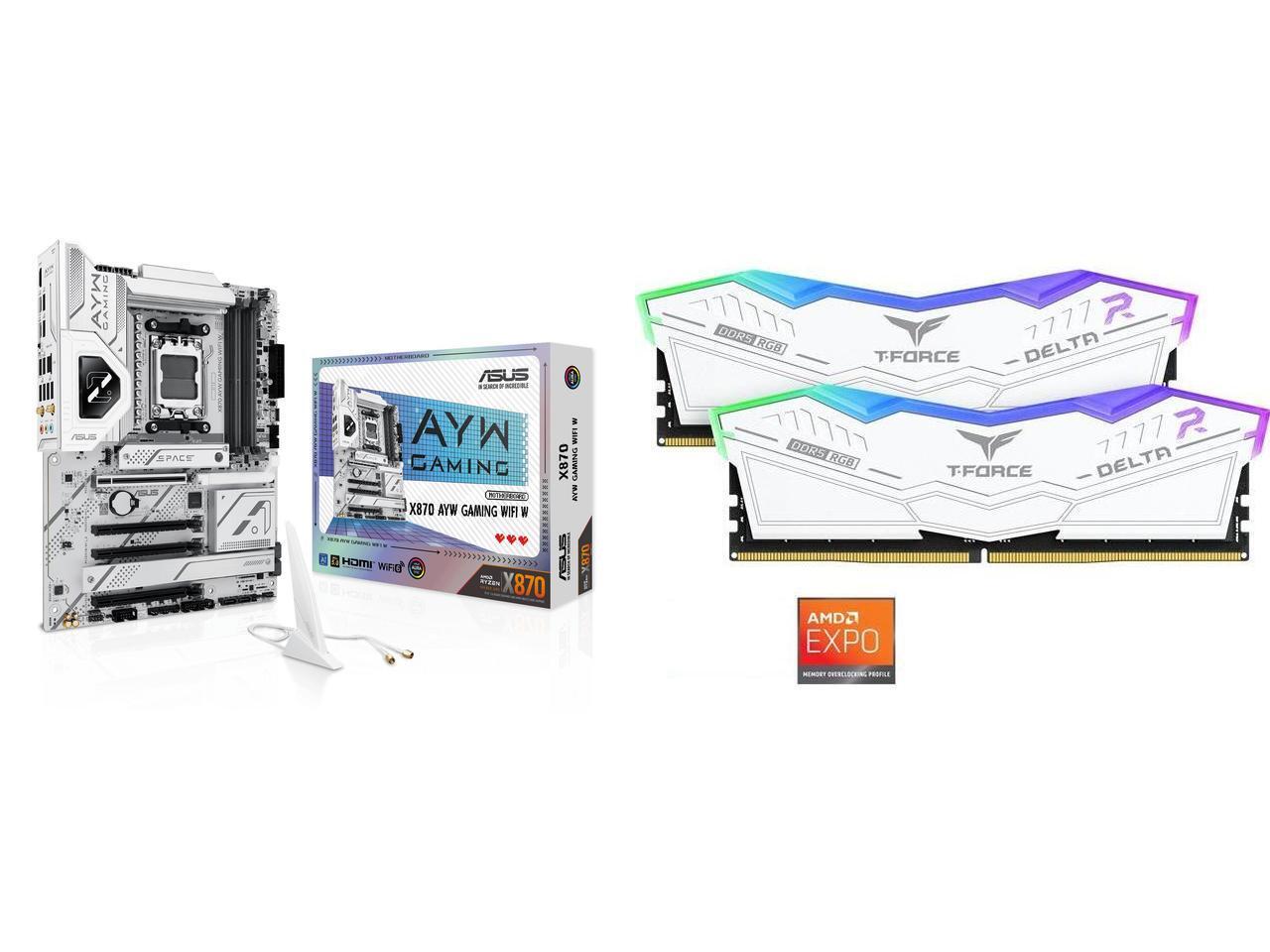

This Combo Includes 2 Items
ASUS X870 AYW GAMING WIFI W AMD X870 AM5 ATX motherboard, 12+2+1 80A DrMOS power stages, DDR5, PCIe 5.0 Ready, PCIe 5.0 x16, 3x M.2, Wi-Fi 6, 2.5Gb LAN, HDMI, USB4, USB 20Gbps Type-C, Aura Sync
DESKTOP MEMORY
DELTA RGB DDR5
RGB Colors & 120° Ultra-Wide Lighting
Modeled after a stealth aircraft, the T-FORCE DELTA RGB DDR5 delivers a refreshing visual experience and continues to offer the 120° ultra-wide lighting and clean geometric silhouette found in the DELTA RGB DDR4.
Supports Intel XMP3.0 for One-Click Overclocking
Supports the latest Intel XMP3.0 and one-click overclocking technology; users can experience ultra-fast overclocking speeds at a single click.
Strengthened PMIC Cooling Design
DELTA RGB DDR5 is equipped with professional thermally conductive silicon, reinforced PMIC cooling design, and effective, stable PMIC operations.
On-die ECC for System Stability
The DELTA RGB DDR5 memory supports on-die ECC, which offers error correction and detection to ensure that system stability is not compromised for performance.
Power Management ICs (PMICs) Equipped for Stable, Efficient Power Usage
The DELTA RGB DDR5 memory is equipped with PMIC, minimizing noise interference and ensuring stable, efficient power distribution across all components for fast, reliable power supply.
High-Quality ICs Selected for Stability & Reliability
TEAMGROUP has selected a high-quality IC that has undergone comprehensive compatibility and reliability testing to ensure a gaming memory that delivers both stability and compatibility.
Smart RGB IC Controllers Support Various Lighting Effect Software
The T-FORCE DELTA RGB DDR5 is equipped with a smart RGB IC controller that is compatible with lighting effect software such as ASUS Aura Sync, GIGABYTE RGB Fusion 2.0, MSI Mystic Light Sync, ASROCK-Polychrome Sync, and BIOSTAR Advanced VIVID LED DJ for lighting effects and synchronization. With the RGB DDR5, gamers can design their own lighting effects and create an incredibly stunning RGB system.
The Lifetime warranty
T-FORCE DELTA RGB DDR5 offers a comprehensive lifetime warranty, and we provide free replacement service for non-human product trouble during the product’s intended usage/application*, making the process simple and offering you peace of mind.
* See warranty detail
Learn more about the ASUS X870 AYW GAMING WIFI W
Model| Brand | ASUS |
|---|
| Model | X870 AYW GAMING WIFI W |
|---|
| Part Number | 90MB1LA0-MVAAY0 |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | Up to 8000+MT/s (OC) |
|---|
| Maximum Memory Supported | 256GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Yes |
|---|
| Buffer Supported | Un-buffered |
|---|
Expansion Slots| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) |
|---|
| PCI Express 4.0 x16 | AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) |
|---|
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 slot (support x1 mode)*** *** PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required. |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
** Specifications vary by CPU types. |
|---|
| SATA RAID | 0/1/5/10 |
|---|
Onboard Audio| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|
Onboard LAN| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | Wi-Fi 802.11 ax |
|---|
| Bluetooth | Bluetooth 5.2 |
|---|
Rear Panel Ports| Back I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers
Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
|---|
Physical Spec| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors |
|---|
Software Feature| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
|---|
| Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|---|
| Windows 11 | Supported |
|---|
Features| Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers |
|---|
Packaging| Package Contents | Cables 2 x SATA 6Gb/s cables
Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x M.2 rubber packages 1 x Screw packages for M.2 SSD
Documentation 1 x Quick start guide |
|---|
Additional Information| First Listed on Newegg | April 11, 2025 |
|---|
