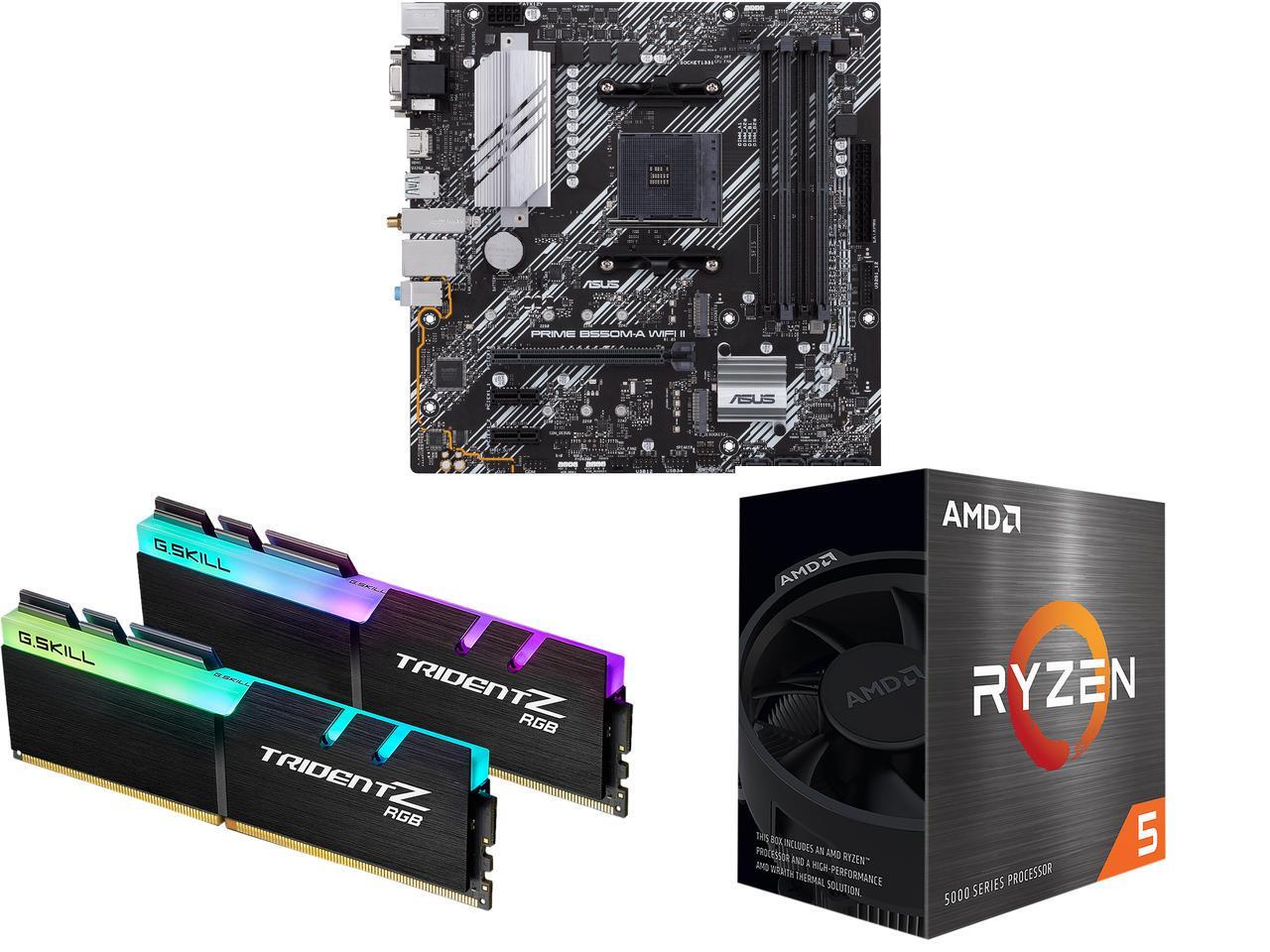

Motherboard Memory CPU Combo - ASUS PRIME B550M-A WIFI II Bundle with G.SKILL F4-3600C18D-32GTZR and AMD Ryzen 5 5500
AMD Motherboards
Desktop Memory
Desktop CPU Processor
AMD AM4 Socket and PCIe 4.0: The perfect pairing for 3rd Gen AMD Ryzen CPUs
Ultrafast Connectivity: 1x PCIe 4.0 x16 SafeSlot, WiFi 6 (802.11ax), 1Gb LAN, dual M.2 slots (NVMe SSD) - one with PCIe 4.0 x4 connectivity, USB 3.2 Gen 2 Type-A, HDMI 2.1 (4K@60HZ), D-Sub & DVI
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2 utility
5X Protection III: all-round protection with LANGuard, DRAM overcurrent protection, overvoltage protection, SafeSlot Core safeguards and stainless-steel back I/O
Boosted Memory Performance: ASUS OptiMem proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance
Enhanced Power Solution: 8+1 DrMOS power stages with high-quality alloy chokes and durable capacitors to provide reliable power for the last AMD high-count-core CPUs
Aura Sync RGB: Synchronizable LED effects across a wide range of compatible PC gear, plus RGB LED and Addressable Gen 2 RGB headers
Featuring a completely exposed light bar with vibrant RGB LEDs, merged with the award-winning Trident Z heatspreader design, and constructed with the highest quality components, the Trident Z RGB DDR4 memory kit combines the most vivid RGB lighting with uncompromised performance.
Full Range RGB Support
The uncovered light bar is designed for visual gratification in full RGB. The default lighting sports a fluid full spectrum rainbow wave. Downloadable software allows expanded effect and color customizations to the memory modules. Color match your build and rethink the possibilities with RGB.
Exceptionally Engineered
Trident Z RGB retains the iconic design element of the traditional Trident Z lineup - featuring luxurious hair-line finished aluminum heatspreaders and an aggressive fin design for highly efficient heat dissipation. The top of the heatsink has been exclusively engineered to mount a wider light diffuser for more extravagant lighting effects. Look no further for a memory that combines performance and beauty for building a stylish, modern PC!
Trident Z Means Overclocking
Each memory kit contains specially screened ICs through G.SKILL's unparalleled selection process and a custom engineered ten-layer PCB offering maximum signal stability; and every single kit is rigorously tested for reliability, compatibility, and performance across a wide range of motherboards.
Reveal Your Inner Colors
Create a one of a kind PC with the Trident Z RGB memory kit! The best thing about having RGB capabilities is the ability to choose the colors you want. Whether it's white on one day or green on the next, you can be sure these modules will look current and modern in any build.
Awards
Sync Up with System Lighting
Want to sync up your system lighting? You can use Asus Aura Sync*, Gigabyte RGB Fusion*, MSI Mystic Light*, or ASRock Polychrome Sync* software to personalize the colors and effects of your Trident Z Royal memory and compatible motherboards!
* Note: Trident Z Royal lighting control support through the listed third-party software may vary between motherboard models.
XMP 2.0 Support
Just set and go. Programmed with the latest Intel XMP 2.0 profiles, the only thing between you and extreme performance is a simple setting.
Limited Lifetime Warranty
All G.SKILL memory products come with a limited lifetime warranty and the G.SKILL technical team is always ready to provide consumers with complete technical support via online forum, telephone, and email.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
ECC Supported
ECC memory (ECC mode) support varies by CPU
Buffer Supported
Un-buffered
Expansion Slots
PCI Express 4.0 x16
1 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
PCI Express x1
2 x PCIe 3.0 x1
Storage Devices
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
SATA RAID
0/1/10
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channels
7.1 Channels*
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Onboard LAN
LAN Chipset
Realtek 1Gb Ethernet
Max LAN Speed
1Gbps
Wireless LAN
Wi-Fi 6 802.11 a/b/g/n/ac/ax
Bluetooth
Bluetooth 5.2
Rear Panel Ports
Back I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Onboard USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Physical Spec
Form Factor
Micro ATX
LED Lighting
RGB
Dimensions (W x L)
9.6" x 9.6"
Power Pin
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
Software Feature
Windows 11
Ready
Features
Features
Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 header
Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update - Lighting Control ASUS CPU-Z AI Charger DAEMON Tools MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System: Windows 11 64-bit, Windows 10 64-bit
Packaging
Package Contents
Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual
Additional Information
First Listed on Newegg
August 11, 2022
