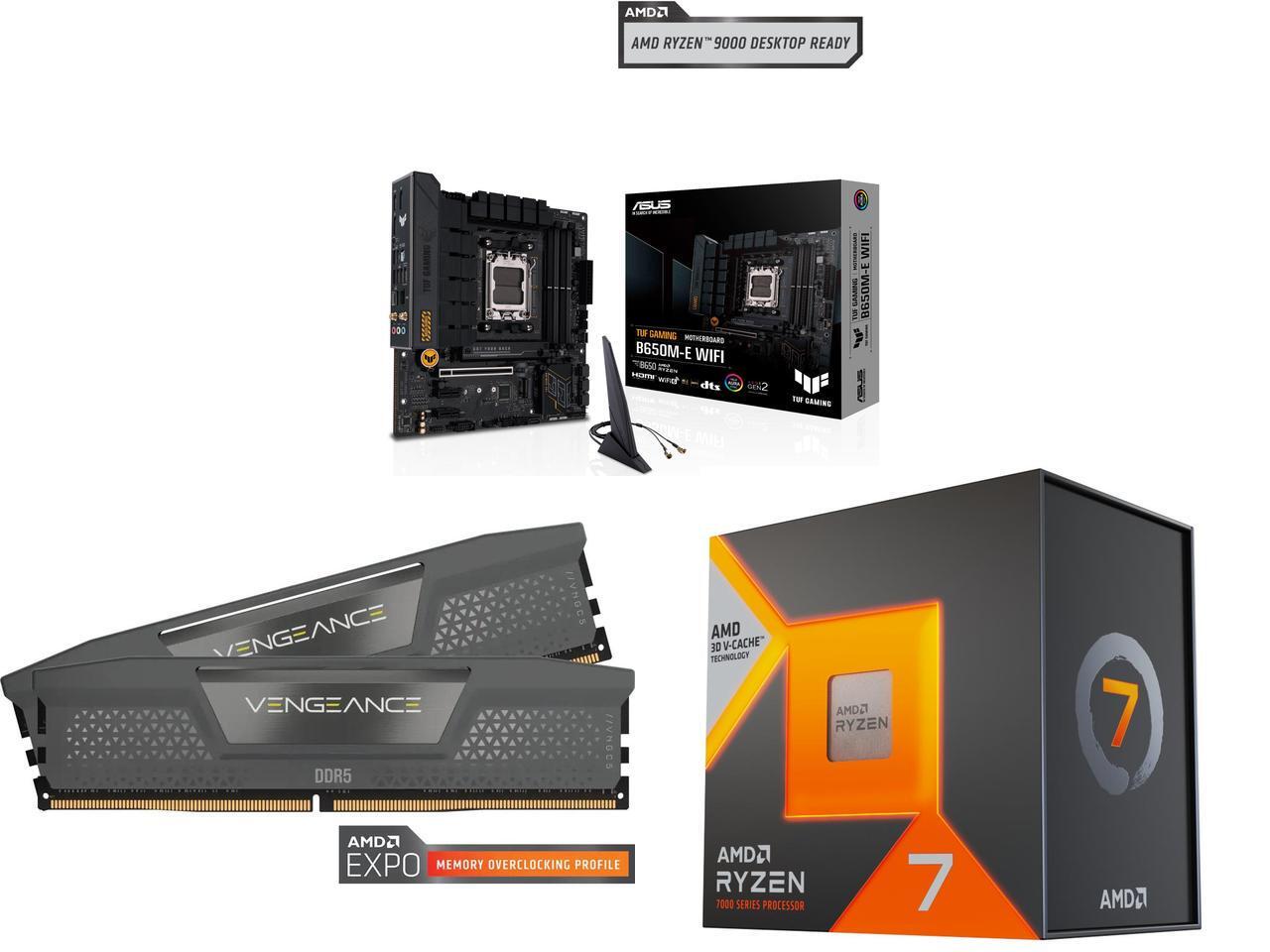

This Combo Includes 3 Items
AMD RYZEN™ 7 7800X3D PROCESSOR
AMAZING GAMING PROCESSORS WITH AMD 3D V-CACHE™ TECHNOLOGY
AMD Ryzen™ 7 7800X3D processor featuring AMD 3D V-Cache™ technology delivers absolute gaming performance that exceeds the highest expectations.
TECHNOLOGY THAT SAVES YOU TIME
With time-saving connectivity features and technologies, like PCIe 5.0® storage support, ultra-fast WiFi® 6E wireless, 8 cores/16 processing threads, and dedicated video accelerators, elevate your creator experience with an AMD Ryzen™ 7 7800X3D processor.
UPGRADEABLE FOR YEARS TO COME
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCle® 5.0, supported through 2025.
Technical Specifications — AMD Ryzen™ 7 7800X3D
| Cores / Threads |
Total Cache |
Architecture |
TDP |
PCIe® Version |
Socket |
Unlocked for Overclocking |
Cooler |
| 8/16 |
104MB |
"Zen 4" |
120W |
5.0 |
AM5 |
Yes |
Cooling device not included - Processor Only |
Learn more about the ASUS TUF GAMING B650M-E WIFI
Model| Brand | ASUS |
|---|
| Model | TUF GAMING B650M-E WIFI |
|---|
| Part Number | 90MB1FV0-M0AAY0 |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 |
|---|
| Maximum Memory Supported | 192GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | ECC and Non-ECC, Un-buffered Memory |
|---|
| Buffer Supported | Un-buffered |
|---|
Expansion Slots| PCI Express 4.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** |
|---|
| PCI Express x1 | AMD B650 Chipset
2 x PCIe 4.0 x1 slots |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types. |
|---|
| SATA RAID | * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
|---|
Onboard Audio| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|
Onboard LAN| Max LAN Speed | 1 x Realtek 2.5Gb Ethernet
TUF LANGuard |
|---|
| Wireless LAN | Wi-Fi 802.11 ax |
|---|
| Bluetooth | Bluetooth 5.2 |
|---|
Rear Panel Ports| Back I/O Ports | 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo port |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function |
|---|
Physical Spec| Form Factor | Micro ATX |
|---|
| Power Pin | 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector |
|---|
Software Feature| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
|---|
| Software | ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers(60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |
|---|
| Windows 11 | Supported |
|---|
Features| Features | ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot Core+
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers |
|---|
Packaging| Package Contents | Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x TUF Gaming sticker
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x TUF Certification card
1 x User guide |
|---|
Additional Information| First Listed on Newegg | January 08, 2025 |
|---|
