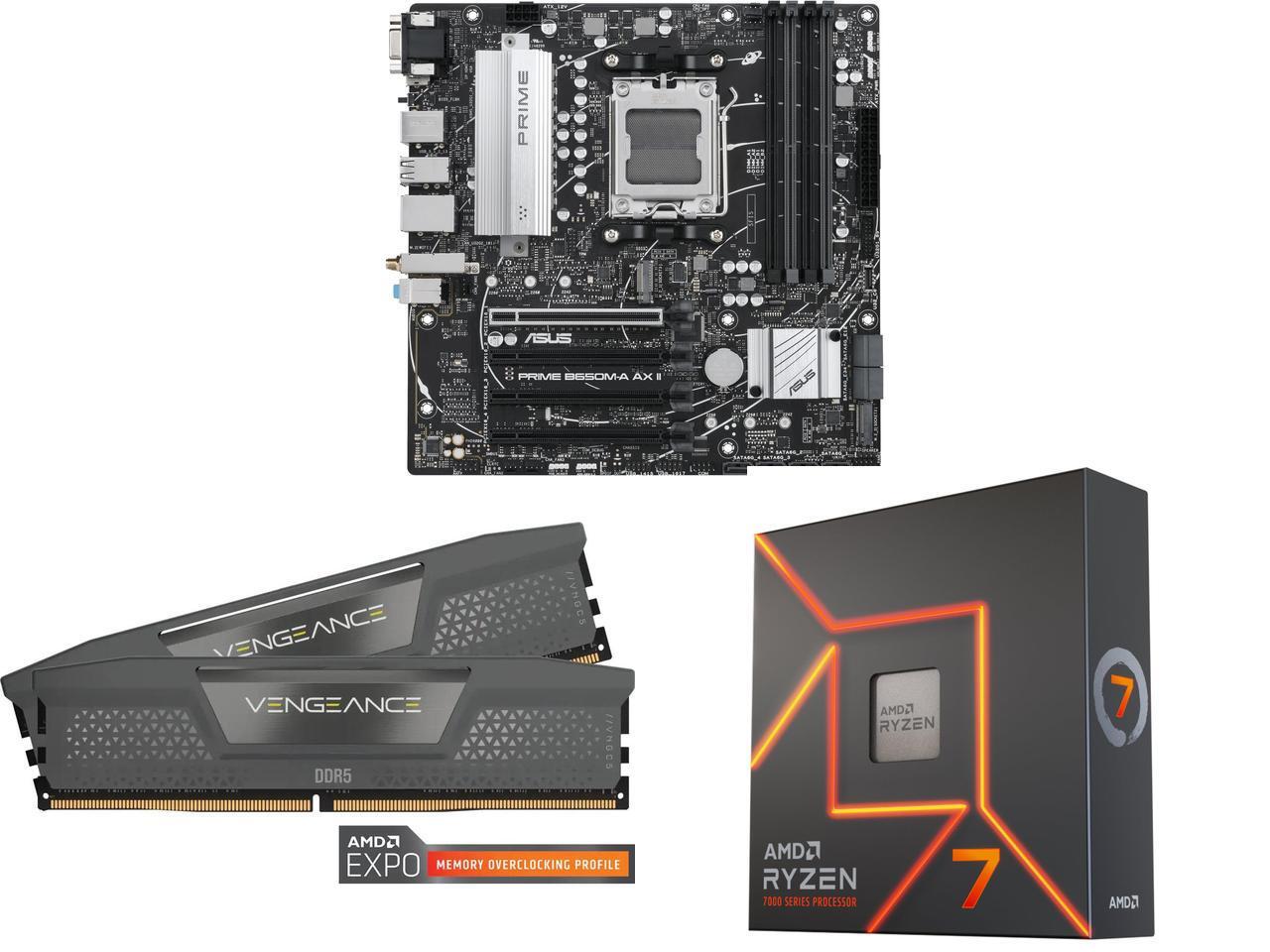

This Combo Includes 3 Items
The ultimate gaming and streaming experience
Whatever the setting, whatever the resolution, lead your team to victory with AMD Ryzen™ 7 7700X, a superb 8-core gaming processor.
The world's most advanced PC processor
Experience the speed of AMD Ryzen™ 7 7700X desktop processor. Build a rig with the winning performance you need to dominate the games you love.
The latest technologies from AMD
AMD Ryzen™ 7 7700X processor is built to help you beat the clock with time-saving connectivity like PCle® 5.0, 16 processing threads, and dedicated video accelerators.
The future of Ryzen processors
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCle® 5.0.

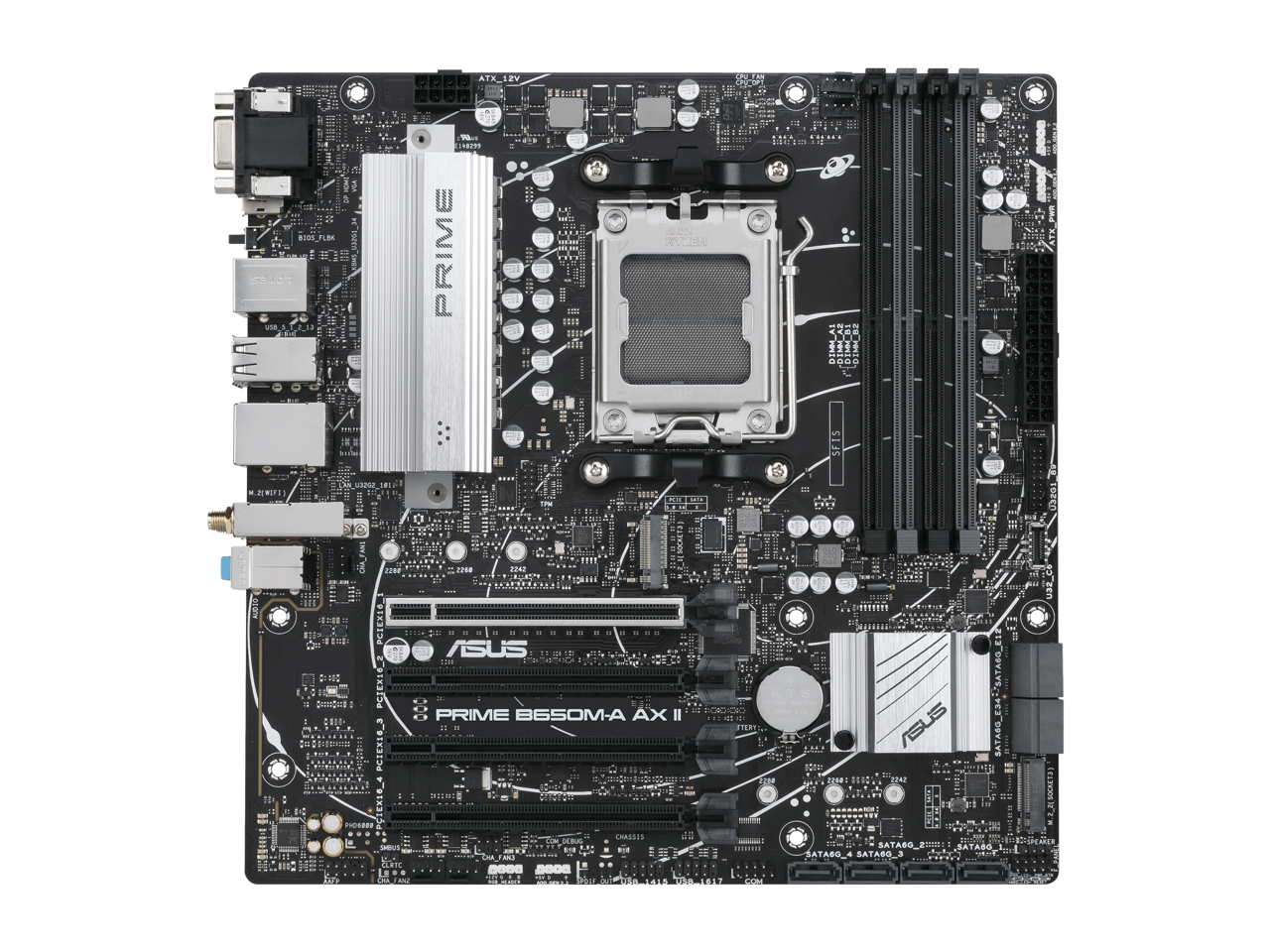

Learn more about the ASUS PRIME B650M-A AX II
Model| Brand | ASUS |
|---|
| Model | PRIME B650M-A AX II |
|---|
| Part Number | 90MB1ED0-M0AAY0 |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Supports AMD Ryzen 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list. |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | , DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* |
|---|
| Maximum Memory Supported | 192GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Yes |
|---|
| Buffer Supported | Un-buffered |
|---|
| Memory Feature | Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
|---|
Expansion Slots| PCI Express 4.0 x16 | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) |
|---|
Storage Devices| Serial ATA (SATA) | 8 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
|---|
| SATA RAID | * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** The SATA6G_E12/E34 ports cannot support RAID. |
|---|
Onboard Audio| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|
| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| Max LAN Speed | 1 x Realtek 2.5Gb Ethernet |
|---|
| Wireless LAN | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band |
|---|
| Bluetooth | Bluetooth v5.2 |
|---|
Rear Panel Ports| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 3.2 Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers
Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
Storage related 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports
Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
|---|
Physical Spec| Form Factor | Micro ATX |
|---|
| Dimensions (W x L) | 9.6" x 9.6" |
|---|
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
|---|
Software Feature| Windows 11 | Supported |
|---|
Features| Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|---|
Packaging| Package Contents | Cables 2 x SATA 6Gb/s cables
Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x Screw package for M.2 SSD
Documentation 1 x User guide |
|---|
Additional Information| First Listed on Newegg | January 17, 2023 |
|---|
