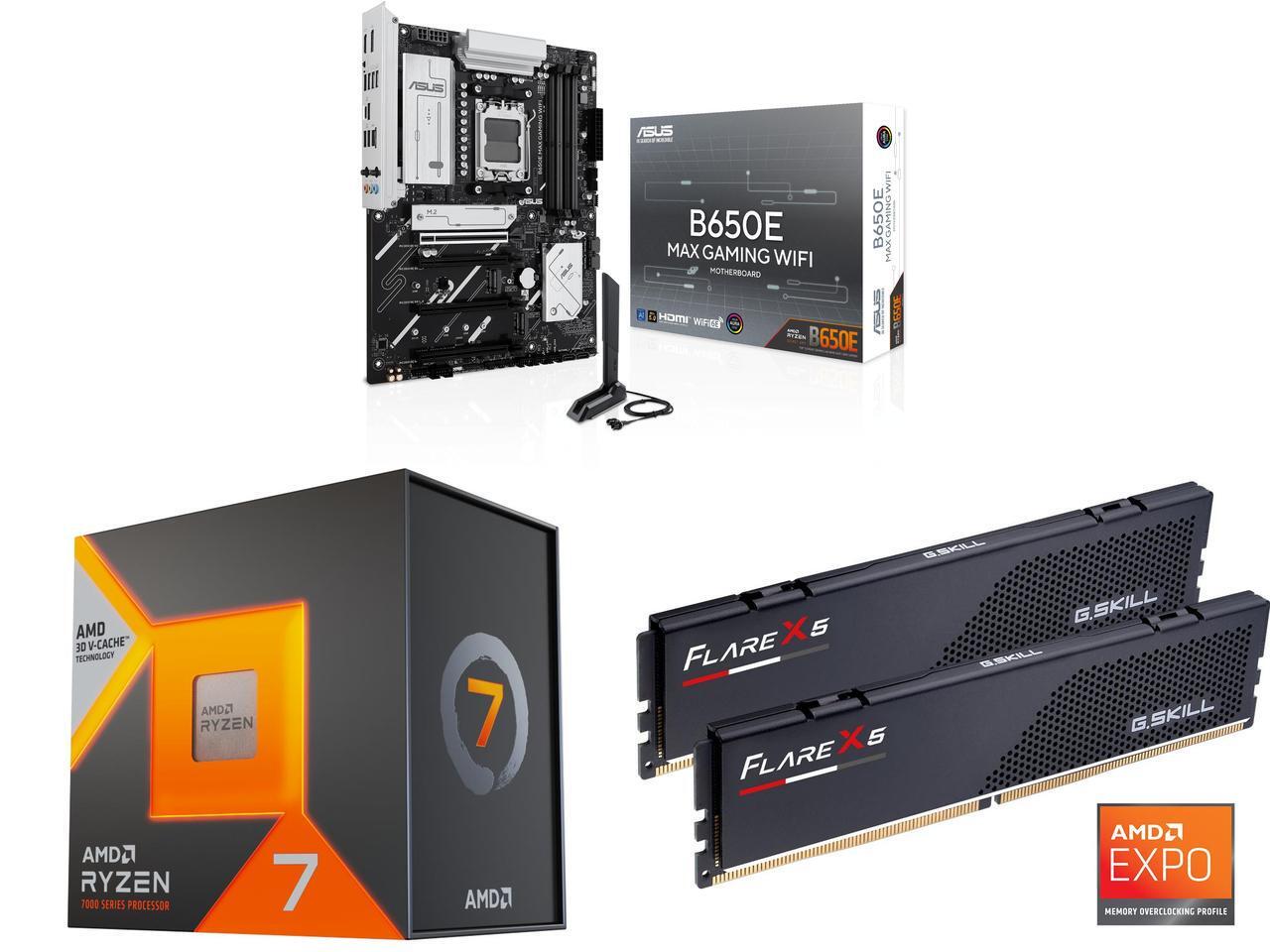

This Combo Includes 3 Items
ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync
AMD RYZEN™ 7 7800X3D PROCESSOR
AMAZING GAMING PROCESSORS WITH AMD 3D V-CACHE™ TECHNOLOGY
AMD Ryzen™ 7 7800X3D processor featuring AMD 3D V-Cache™ technology delivers absolute gaming performance that exceeds the highest expectations.
TECHNOLOGY THAT SAVES YOU TIME
With time-saving connectivity features and technologies, like PCIe 5.0® storage support, ultra-fast WiFi® 6E wireless, 8 cores/16 processing threads, and dedicated video accelerators, elevate your creator experience with an AMD Ryzen™ 7 7800X3D processor.
UPGRADEABLE FOR YEARS TO COME
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCle® 5.0, supported through 2025.
Technical Specifications — AMD Ryzen™ 7 7800X3D
| Cores / Threads |
Total Cache |
Architecture |
TDP |
PCIe® Version |
Socket |
Unlocked for Overclocking |
Cooler |
| 8/16 |
104MB |
"Zen 4" |
120W |
5.0 |
AM5 |
Yes |
Cooling device not included - Processor Only |
Learn more about the ASUS B650E MAX GAMING WIFI
Model| Brand | ASUS |
|---|
| Model | B650E MAX GAMING WIFI |
|---|
| Part Number | 90MB1LD0-MVAAY0 |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | Up to 8000+MT/s (OC) |
|---|
| Maximum Memory Supported | 192GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Yes |
|---|
| Buffer Supported | Un-buffered |
|---|
Expansion Slots| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) |
|---|
| PCI Express 4.0 x16 | AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode) |
|---|
| PCI Express 3.0 x16 | 2 x PCIe 3.0 x16 slots (support x1 mode)*** *** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs. |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
* Specifications vary by CPU types. |
|---|
| SATA RAID | 0/1/5/10 |
|---|
Onboard Audio| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|
Onboard LAN| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | Wi-Fi 802.11 ax |
|---|
| Bluetooth | Bluetooth 5.3 |
|---|
Rear Panel Ports| Back I/O Ports | 1 x USB 10Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan header
Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 1 x Thunderbolt (USB4) header |
|---|
Physical Spec| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors |
|---|
Software Feature| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
|---|
| Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS Driver Hub ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|---|
| Windows 11 | Supported |
|---|
Features| Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers |
|---|
Packaging| Package Contents | Cables 2 x SATA 6Gb/s cables
Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber packages 3 x Screw packages for M.2 SSD
Documentation 1 x Quick start guide |
|---|
Additional Information| First Listed on Newegg | April 11, 2025 |
|---|
