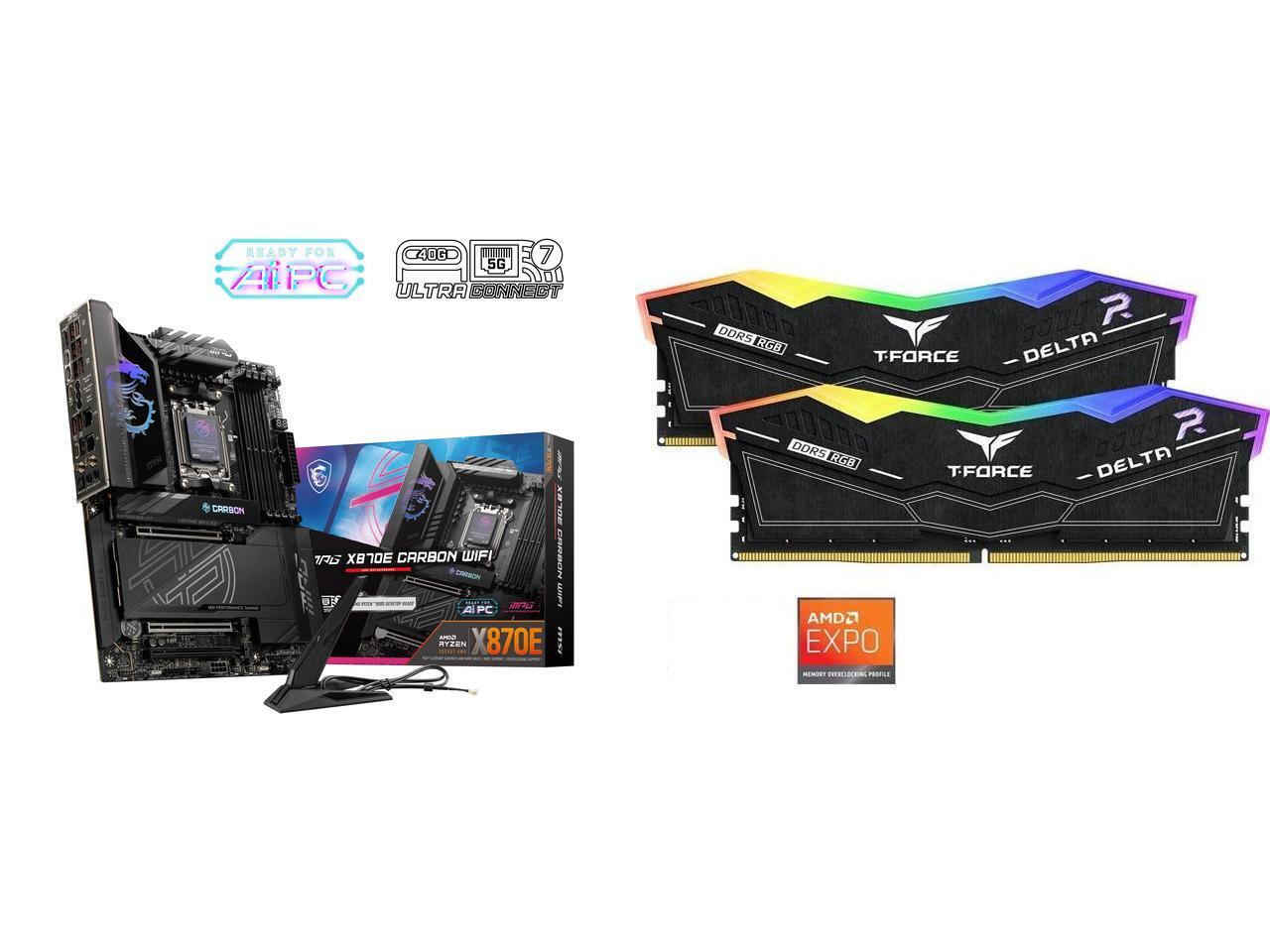

This Combo Includes 2 Items
Perform in Style
The MPG X870E CARBON WIFI is a gaming oriented ATX motherboard with an 18 Duet Rail Power System, constructed around the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The MPG X870E CARBON WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
- Form Factor: ATX
- Socket Type: AM5
- Chipset: AMD X870E
Ultra Power - 18 Duet Rail Power System with 110A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the MPG X870E CARBON WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 18 Duet Rail Power System (110A / SPS)
- 2 Phase SOC Power
- 1 Phase MISC Power
Frozr Design
Frozr Guard: Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8400+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 8400+ MT/s, supports AMD EXPO.
Fortified PCIe 5.0 x16 Slot
The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.
- 2 x PCIe 5.0/4.0/3.0 x16 slots* (one with Steel Armor II** and EZ PCIe Release)
- 1 x PCIe 4.0/3.0 x16 slot*
* Supports x16x0x4 / x8x8x4
** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The MPG X870E CARBON WIFI motherboard features MSI's M.2 slots:
- 2 x Gen5 x4 128Gbps slots (with double-sided M.2 Shield Frozr)
- 2 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Smart Button: By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off without entering the BIOS.
Ultra Connect
5G LAN + 2.5G LAN: A Realtek 5Gbps LAN & Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support.
DESKTOP MEMORY
DELTA RGB DDR5
RGB Colors & 120° Ultra-Wide Lighting
Modeled after a stealth aircraft, the T-FORCE DELTA RGB DDR5 delivers a refreshing visual experience and continues to offer the 120° ultra-wide lighting and clean geometric silhouette found in the DELTA RGB DDR4.
Supports Intel XMP3.0 for One-Click Overclocking
Supports the latest Intel XMP3.0 and one-click overclocking technology; users can experience ultra-fast overclocking speeds at a single click.
Strengthened PMIC Cooling Design
DELTA RGB DDR5 is equipped with professional thermally conductive silicon, reinforced PMIC cooling design, and effective, stable PMIC operations.
On-die ECC for System Stability
The DELTA RGB DDR5 memory supports on-die ECC, which offers error correction and detection to ensure that system stability is not compromised for performance.
Power Management ICs (PMICs) Equipped for Stable, Efficient Power Usage
The DELTA RGB DDR5 memory is equipped with PMIC, minimizing noise interference and ensuring stable, efficient power distribution across all components for fast, reliable power supply.
High-Quality ICs Selected for Stability & Reliability
TEAMGROUP has selected a high-quality IC that has undergone comprehensive compatibility and reliability testing to ensure a gaming memory that delivers both stability and compatibility.
Smart RGB IC Controllers Support Various Lighting Effect Software
The T-FORCE DELTA RGB DDR5 is equipped with a smart RGB IC controller that is compatible with lighting effect software such as ASUS Aura Sync, GIGABYTE RGB Fusion 2.0, MSI Mystic Light Sync, ASROCK-Polychrome Sync, and BIOSTAR Advanced VIVID LED DJ for lighting effects and synchronization. With the RGB DDR5, gamers can design their own lighting effects and create an incredibly stunning RGB system.
The Lifetime warranty
T-FORCE DELTA RGB DDR5 offers a comprehensive lifetime warranty, and we provide free replacement service for non-human product trouble during the product’s intended usage/application*, making the process simple and offering you peace of mind.
* See warranty detail
Learn more about the MSI MPG X870E CARBON WIFI
Model| Brand | MSI |
|---|
| Model | MPG X870E CARBON WIFI |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Chipsets| Chipset | AMD X870E |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 |
|---|
| Maximum Memory Supported | 256GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Non-ECC |
|---|
| Buffer Supported | Un-buffered |
|---|
| Memory Feature | Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8400+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s |
|---|
Expansion Slots| PCI Express 5.0 x16 | PCI_E1 slot (From CPU): Support up to PCIe 5.0 x16
PCI_E2 slot (From CPU): Support up to PCIe 5.0 x4
* Supports x16/x0 or x8/x4 (For Ryzen 9000/7000 Series processors)
* Supports x8/x0 (For Ryzen 7 8700G and Ryzen 5 8600G processor)
* Supports x4/x0 (For Ryzen 5 8500G processor) |
|---|
| PCI Express x4 | PCI_E3 slot (From X870E chipset): Supports up to PCIe 4.0 x1 |
|---|
| Other Slots | * PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot. |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | 4 x M.2 slots (Key M)
M2_1 slot (From CPU)
- Supports up to PCIe 5.0 x4
- Supports 2260/2280 storage devices
M2_2 slot (From CPU)
- Supports up to PCIe 5.0 x4
- Supports 2260/2280 storage devices
M2_3 slot (From Chipset)
- Supports up to PCIe 4.0 x4
- Supports 2280/22110 storage devices
M2_4 slot (From Chipset
- Supports up to PCIe 4.0 x4
- Supports 2260/2280 storage devices
* PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot. |
|---|
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
|---|
| Additional RAID Controller | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|---|
Onboard Audio| Audio Chipset | Realtek ALC4080 |
|---|
| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| LAN Chipset | Realtek 8126 5Gbps LAN controller |
|---|
| Second LAN Chipset | Realtek 8125 2.5Gbps LAN controller |
|---|
| Max LAN Speed | 5Gbps + 2.5Gbps |
|---|
| Wireless LAN | Wi-Fi 802.11 be |
|---|
| Bluetooth | Bluetooth 5.4 |
|---|
Rear Panel Ports| Back I/O Ports | 2 x USB 10Gbps Type A (From X870E Chipset)
4 x USB 10Gbps Type A (From RTS5420)
1 x HDMI port
2 x USB 40Gbps Type-C (From CPU/ASM4242)
2 x USB 10Gbps Type C (1 from CPU/ 1 from X870E Chipset)
3 x USB 10Gbps Type A (1 from CPU/ 1 from X870E Chipset)
1 x Clear CMOS Button
1 x Flash BIOS Button
1 x Smart Button
1 x 5G LAN (RJ45) port
1 x 2.5G LAN (RJ45) port
2 x Wi-Fi Antenna connectors
2 x audio jacks
1 x Optical S/PDIF Out connector |
|---|
Internal I/O Connectors| Other Connectors | AMD X870 Chipset
- 1x USB 3.2 Gen 2x2 20Gbps Type-C connectors Supports up to 27W fast charging
- 2x USB 3.2 Gen 1 5Gbps connectors Supports additional 4 USB 3.2 Gen 1 5Gbps ports
- 2x USB 2.0 Type-A connectors Supports additional 4 USB 2.0 ports
Fan Connectors
- 1x 4-pin CPU fan connector
- 1x 4-pin PUMP_SYS fan connectors
- 5x 4-pin system fan connectors
System Connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 2-pin Thermal sensor connectors
- 1x EZ Conn-Header V2 (JAF_2)
Jumpers
- 1x Clear CMOS jumper
- 1x OC safe boot jumper |
|---|
Physical Spec| Form Factor | ATX |
|---|
| LED Lighting | 1 x 4-pin RGB LED connector
3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
4 x EZ Debug LED
1 x 2-Digit Debug Code LED |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin Power Connector (ATX_PER)
2 x 8-pin Power Connector (CPU_PWR)
1 x 8-pin Power Connector (PCIE_PWR) |
|---|
Software Feature| BIOS Feature | 1 x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.7
Multi-language |
|---|
| Software | Drivers
MSI Center
Acrobat
Adobe Creative Cloud
AIDA64 Extreme-MSI Edition
CPU-Z MSI GAMING
MSI App Player(BlueStacks)
Norton 360
Voicemod |
|---|
Features| Features | EZ DIY
- Magnetic M.2 Shield Frozr
- EZ M.2 Clip II
- EZ PCIe Release
- Smart Button
- Flash BIOS Button
- Clear CMOS Button
- Pre-installed I/O Shield
- EZ Antenna
- EZ Front Panel Cable
- EZ Conn-Design
- PCI-E Steel Armor II
- EZ Digi-Debug LED
- EZ LED Control (Switch)
Thermal Features
- Heat-pipe Design
- Extended Heatsink Design
- M.2 Shield Frozr
- 7W/mK MOSFET thermal pad
- 5W/mK Extra choke pad
- FAN Headers (CPU*1 + PUMP_SYS*1 + SYSTEM*5)
Performance
- Core Boost
- VRM Power Design (VCore
- M.2 Shield Frozr
- 7W/mK MOSFET thermal pad
- Choke thermal pad
- Fan headers (CPU + PUMP + SYSTEM)
Performance
- Core Boost
- VRM Design
- Dual CPU Power
- Memory Force
- Lightning Gen 5 PCI-E Slot
- Lightning Gen 5 M.2 Slot
- Lightning Gen 4 PCI-E Slot
- Lightning Gen 4 M.2 Slot
- Front USB Type-C
- USB with PD (27W/Front Type-C(
- Supplemental PCIe Power Connector
- Server Grade PCB
- 2oz Copper thickened PCB
Audio
- Audio Boost 5
RGB
- Mystic Light
- Mystic Light Extension (RGB)
- Mystic Light Extension (A-RGB V2)
- Ambient Devices Support
BIOS
- Click BIOS X
- AI Boost
- Performance Preset |
|---|
Additional Information| First Listed on Newegg | September 30, 2024 |
|---|
