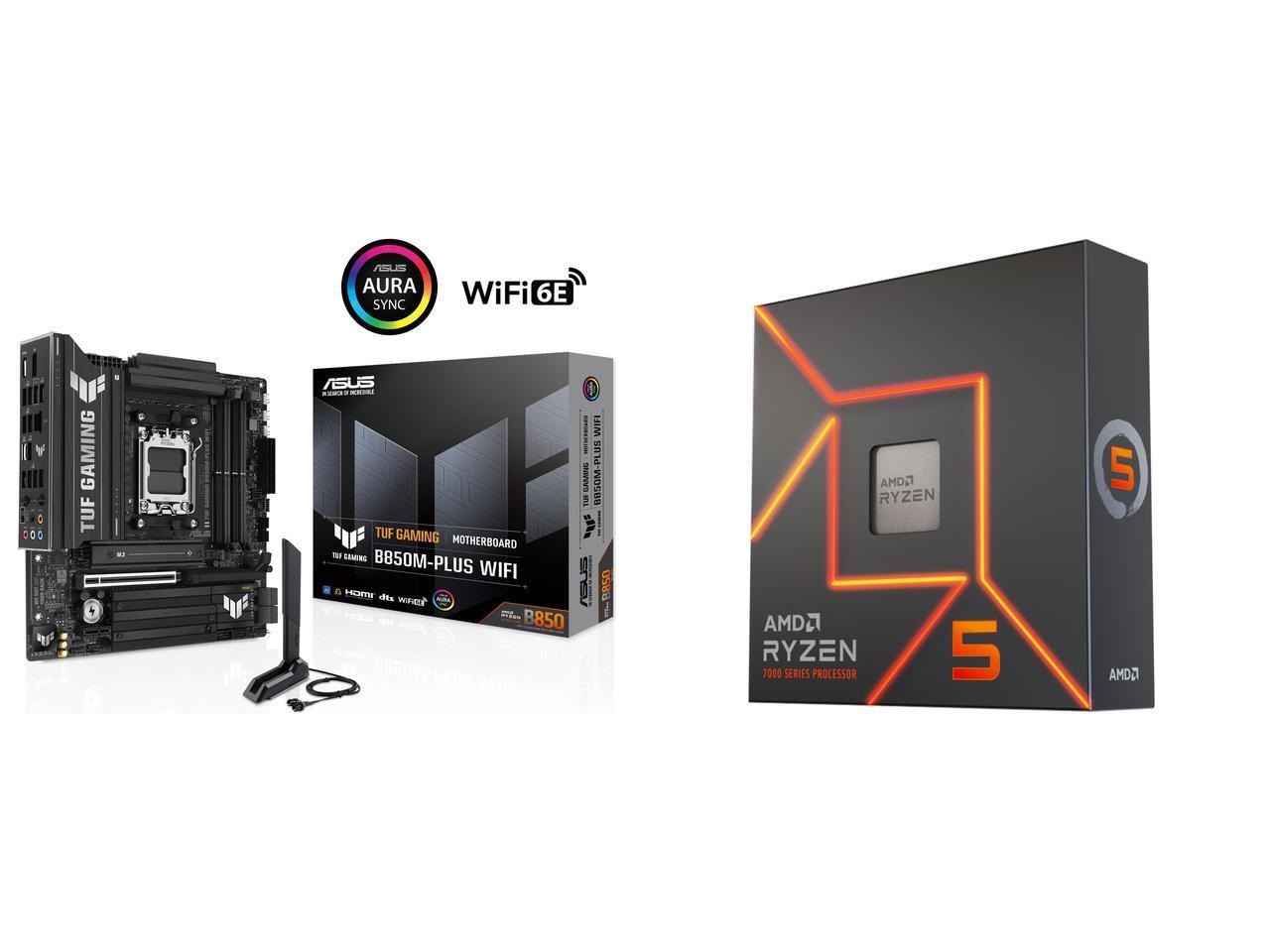

This Combo Includes 2 Items
ASUS TUF GAMING B850M-PLUS WIFI AMD AM5 B850 mATX motherboard, 14+2+1 80A DrMOS stages, DDR5, PCIe 5.0, 3x M.2, Wi-Fi 6E, 2.5Gb LAN, DP, HDMI, USB 10Gbps & 20Gbps Type-C, BIOS FlashBack, Aura Sync
Pure gaming performance
Get a competitive edge with AMD Ryzen™ 57600X desktop processors and AMD Socket AMS motherboards. Fast gameplay and ultimate performance for your game-winning moves.
The world's most advanced PC processor
Take on any game with the pure speed of AMD Ryzen™ 5 7600X desktop processor.
The latest technologies from AMD
AMD Ryzen™ 5 7600X processor is built to help you beat the clock with time-saving connectivity like PCIe 5.0, 12 processing threads, and dedicated video accelerators.
The future of Ryzen processors
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCIe® 5.0.
Learn more about the ASUS TUF GAMING B850M-PLUS WIFI
ModelBrand | ASUS |
---|
Model | TUF GAMING B850M-PLUS WIFI |
---|
Part Number | 90MB1IY0-M0AAY0 |
---|
Supported CPUCPU Socket Type | AM5 |
---|
CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
---|
MemoryNumber of Memory Slots | 4x288pin (DDR5) |
---|
Memory Standard | Up to 8000+MT/s (OC) |
---|
Maximum Memory Supported | 192GB |
---|
Channel Supported | Dual Channel |
---|
ECC Supported | Yes |
---|
Buffer Supported | Un-buffered |
---|
Memory Feature | Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |
---|
Expansion SlotsPCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) |
---|
PCI Express 4.0 x16 | AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
---|
PCI Express x1 | AMD B850 Chipset 1 x PCIe 4.0 x1 slot |
---|
Storage DevicesSerial ATA (SATA) | 4 x SATA 6Gb/s |
---|
M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
---|
SATA RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
*RAID 5 Function is only supported by AMD Ryzen 9000 series CPU. |
---|
Onboard AudioAudio Chipset | Realtek ALC1220P |
---|
Audio Channels | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
---|
Onboard LANMax LAN Speed | 2.5Gbps |
---|
Wireless LAN | Wi-Fi 802.11 ax |
---|
Bluetooth | Bluetooth 5.3 |
---|
Rear Panel PortsBack I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
---|
Internal I/O ConnectorsOnboard USB | 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
---|
Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers
Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header |
---|
Physical SpecForm Factor | Micro ATX |
---|
Dimensions (W x L) | 9.6" x 9.6" |
---|
Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors |
---|
Software FeatureBIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
---|
Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
---|
Windows 11 | Supported |
---|
FeaturesFeatures | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers |
---|
PackagingPackage Contents | Cables 2 x SATA 6Gb/s cables
Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x TUF GAMING sticker 2 x M.2 rubber packages 1 x Screw package for M.2 SSD
Documentation 1 x Quick start guide |
---|
Additional InformationDate First Available | January 06, 2025 |
---|
