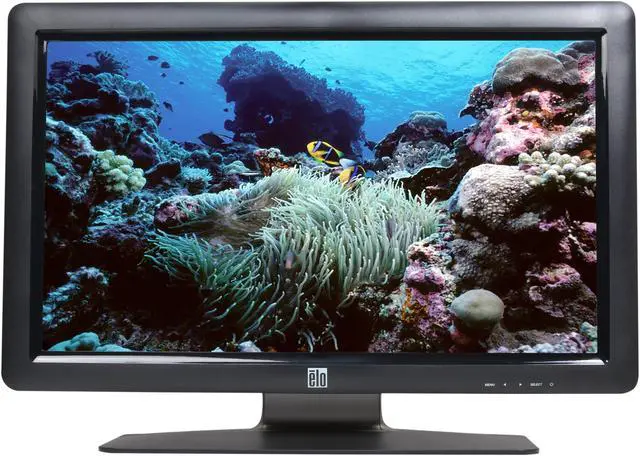

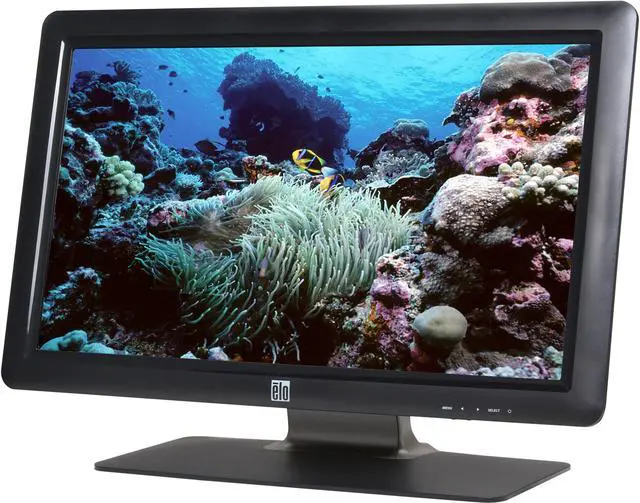

Elo E107766 2201L 22" Wide-aspect LCD Touchscreen Monitor, OSD, Built-in Speakers, SAW (IntelliTouch Surface Acoustic Wave) Dual Touch - Black (Worldwide)
- 22'' diagonal, Active matrix TFT LCD (LED), up to 1920 x 1080 @ 60Hz, 225nit
- The 2201L wide-aspect 21.5” LCD touchscreen monitor offers a flexible, space-saving design
- High definition LED display offers ultimate FHD interactivity, clarity & resolution
- USB touch controller, DVI, VGA & built-in speakers for a rich audio experience
- Widescreen format displays accommodate extra content on screen & are popular in public venue environments due to a high-definition cinematic-like experience
- Built to meet the durability & aesthetic requirements for a variety of high traffic retail & hospitality interactive solutions
- Offers multiple mounting options to ensure installation flexibility including: wall-, arm- & pole-mount via standard VESA mount patterns as well as tabletop accommodations w/ the use of the desktop stand (All sold separately)
- All Elo products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF
Overview
Specs
Reviews
The Elo Touch Solutions 2201L is a flexible, space-saving, Hi-Def, wide-aspect ratio 22" LCD touchmonitor well-suited to meet durability and aesthetic requirements for front-of-store, back office, kiosk, and even out-of-store applications. The Elo 2201L offers real versatility for a variety of retail and interactive hospitality solutions including:
- Promotion of cross-channel, online sales in the store (shoppers purchase items online in the store for home delivery or shop for sold out or unavailable merchandise in additional store locations)
- Hostess stations that require large screens to view restaurant layouts/seating charts
- Back office solutions integrating labor management and inventory analysis
- Customer assist and self-service solutions (theaters, hotels, auto dealerships)
- Shelf-level/countertop interactive digital signage displays
- HD video capabilities for interactive lifestyle marketing in larger retail/lifestyle stores
Available with iTouch zero-bezel, IntelliTouch Plus multi-touch surface acoustic wave (SAW) touchscreen technology, and zero-bezel projected capacitive (PCAP) multi-touch, the 2201L is compatible with Windows 7 and 8, and provides stable, “drift-free” operation with excellent image clarity, resolution, and light transmission—for an accurate touch response and vivid images. The 2201L is distinctive by incorporating state-ofthe-art LED backlights that reduce the energy consumption of the higher energy consumption of CCFL backlights often used by other touchmonitors
Wide-aspect displays like the Elo Touch Solutions 2201L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in corporate environments for publishing and dual window applications, and are popular in public venue environments due to a high-definition cinematic-like experience.
Features:
- Touchscreen technologies: iTouch zero-bezel, IntelliTouch Plus multi-touch or zero-bezel PCAP multi-touch
- High definition LCD display offers ultimate HD interactivity, clarity and resolution
- 16:9 aspect ratio panel
- USB touch controller, DVI, VGA and built-in speakers for a rich audio experience
- LED backlighting allows for state-of-the-art slim design, while reducing power consumption
- Removable base and mounting features, including a VESA mount as well as wall- and arm-mounting options for installation flexibility
- Ruggedized for use in high-traffic environments
- Optional peripherals include field-installable 3-stripe MSR and web camera
| Model | 2201L |
|---|---|
| Form factor | Desktop |
| Display | 22" diagonal, Active matrix TFT LCD |
| Aspect Ratio | 16:9 Widescreen |
| Useful Screen Area |
Horizontal: 18.8" (477mm) Vertical: 10.6" (268mm) |
|
Monitor dimensions (with stand) |
Height: 15.4" 392mm) Width: 21.7" (551mm) Depth: 7.6" (193mm) |
| Native (optimal) resolution | 1920x1080 |
| Other supported resolutions |
640x480 60Hz 720x576 50Hz 800x600 56, 60Hz 1024x768 60Hz 1280x720 50, 60Hz 1280x960 60Hz 1280x1024 60Hz 1366x768 60Hz 1440x900 60Hz 1680x1050 60Hz 1920x1080 50, 60Hz |
| Colors | 16.7 million |
|
Brightness (typical) |
LCD panel: 250 nits iTouch: 225 nits IntelliTouch Plus: 225 nits PCAP: 225 nits |
| Response time - total (typical) | 5ms |
|
Viewing angle (typical) |
Horizontal: ±85 or 170 degrees total Vertical: ±80 or 160 degrees total |
| Contrast ratio (typical) | 1000:1 |
| On-screen display (OSD) |
Controls: Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, Vposition, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD Rotation, Volume, Mute, Recall Defaults, Video Source Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power |
| Speakers | Two 2-Watt internal speakers |
| Audio input connector | One 3.5mm TRS jack |
| Headphone output connector | One 3.5mm TRS jack |
| Shipping Box Dimensions | Width: 20.5" (520mm) Depth: 27.2" (690mm) Height:11.0" (280mm) |
| Weight |
Actual: 16.5lbs (7.5kg) Shipping: 27.6lbs (12.5kg) |
General Information
The 2201L offers a flexible, space-saving design, HD wide-aspect ratio 22-inch LCD touchmonitor with Windows 7 multi-touch interactivity. Well-suited to meet durability as well as aesthetic requirements for front-of-store, back office, kiosk and even out-of-store applications, the Elo TouchSystems 2201L offers real versatility for a variety of retail and hospitality interactive solutions.
Available with IntelliTouch Plus multi-touch surface acoustic wave touchscreen technology, the 2201L provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission - for an accurate touch response and vivid images! And, instead of the high energy use CCFL backlights of other touchmonitors, the 2201L is set apart by using state-of-the-art LED technology to reduce energy usage.
- Screen Size: 22"
- Screen Mode: Full HD
- Response Time: 5 ms
- Aspect Ratio: 16:9
- Horizontal Viewing Angle: 170°
- Vertical Viewing Angle: 160°
- Adjustable Display Angle: Yes
- Mount Type: Arm-mountable
- Mount Type: Wall Mountable
- Backlight Technology: LED
- Features: Security Lock
- Horizontal Frequency: 80 Hz
- Maximum Resolution: 1920 x 1080
- Standard Refresh Rate: 60 Hz
- Color Supported: 16.7 Million Colors
- Contrast Ratio: 1,000:1
- Brightness: 250 Nit
- Speakers: Yes
- Touchscreen: Yes
- Touchscreen Type: Surface Acoustic Wave
- Multi-touch Screen: Yes
- DVI: Yes
- USB: Yes
- USB Standard: USB 1.1
- VGA: Yes
- Built-in Devices: Speaker
- Input Voltage: 120 V AC
- Input Voltage: 230 V AC
- Operating Power Consumption: 29 W
- VESA Mount Compatible: Yes
- VESA Mount Standard: 200 x 100
- Color: Black
- Height with Stand: 15.40"
- Width with Stand: 21.70"
- Depth with Stand: 7.60"
- Weight (Approximate): 16.50 lb
- Platform Supported: PC
- Environmentally Friendly: Yes
- Environmental Certification: WEEE
- Environmental Certification: China RoHS
- Limited Warranty: 3 Year
