Planar 997-7415-00 PT1945P 19" Edge LED LCD 10 Points Touchscreen Monitor
- 19" diagonal size
- Projected Capacitive
- 1280 x 1024
- USB Touchscreen interface
- 10 Touch Points
- 225 cd/m² Brightness w/touchscreen
- D-sub 15-pin, Type B socket USB, audio-in, AC power-in
Overview
Specs
Reviews

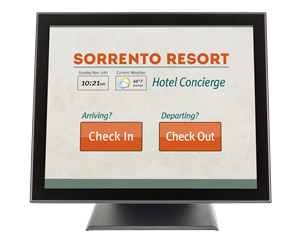

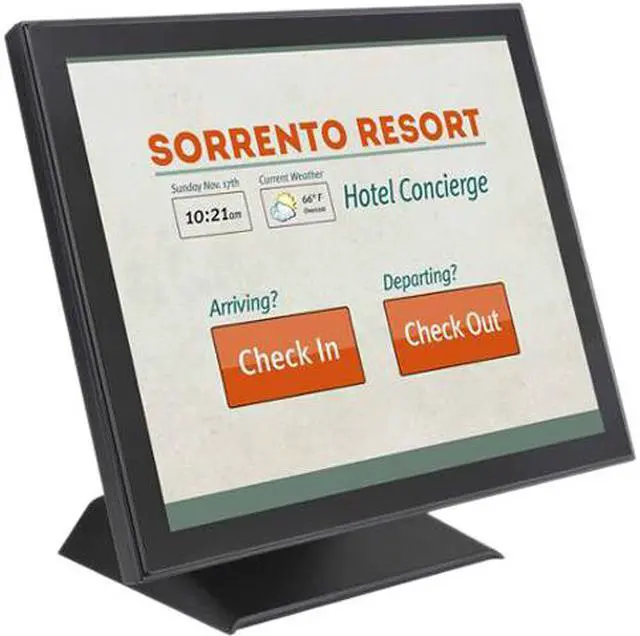

Planar PT1945P
19" Touch Screen Monitor
For image-conscious retail, hospitality, or healthcare establishments, the Planar® PT1945P 19” monitor is optimized with multi-touch interactivity. With its ultra-thin profile enclosure to its sleek, edge-to-edge glass surface, the Planar PT1945P provides the ultimate end-user experience.
For upscale retailers, hotels, restaurants, or healthcare offices wanting to get things done in style, the Planar PT1945P 19” fits the bill. Designed to take advantage of the multi-touch-enabled features being added to traditional point-of-sale (POS) and kiosk applications, the monitor registers up to 10 simultaneous touches for fast and intuitive navigation through multiple screens.
The ultra-thin profile design and edge-to-edge glass surface makes it an attractive addition to any hotel, retail store, or office setting, and the multi-touch features make this monitor as intuitive to use as a tablet or smart phone.

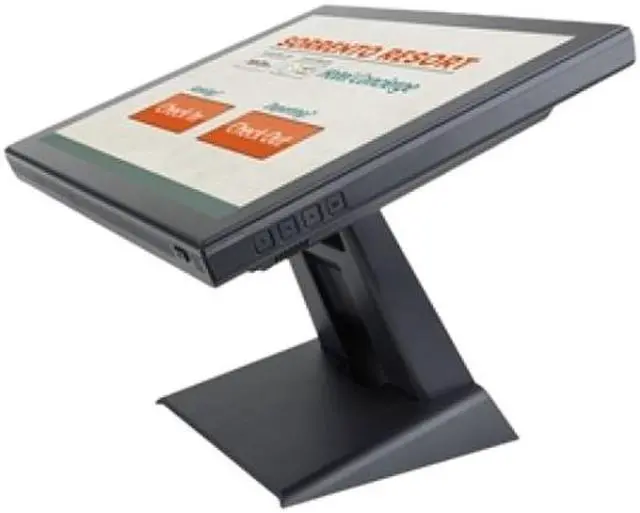

The Planar PT1945P includes a full range desk stand that easily tilts from 0 to 90° with little pressure. It’s a perfect pairing monitor for your point-of-purchase or POS computer system. From responding to predetermined questions, flicking through reviews to choose the right place for dinner, or looking for the perfect item in an online catalog, the sleek Planar PT1945P accommodates all. Perfect for gift shops, concierge counters, self-check-in stations, or gift registry kiosks, the Planar PT1945P offers a great solution today and for future touch applications coming to businesses.
The Planar PT1945P multi-touch monitor is available with analog video input, integrated speakers, and features built-in 100mm VESA for easy wall or arm mounting. The Planar PT1945P pairs well with Planar's accessories, including the Universal Height Adjust Stand, the Single Arm Desk Stand, and the Planar Dual Monitor Stand.
The Planar PT1945P includes Planar's industry-leading CustomerFirst™ 3-year Warranty with Free 2-day advanced replacement.
| SPECIFICATION | DETAIL |
| Product Name | PT1945P |
| Viewable Size | 19" diagonal (14.81" horizontal x 11.85" vertical) |
| Touchscreen Type | Projected Capacitive |
| Number of Touch Points | 10 |
| Touchscreen Interface | USB |
| Contrast Ratio (typ) | 1000:1 |
| Viewing Angle (typ) | 170° horizontal, 160° vertical |
| Response Time (typ) | 5 ms |
| Brightness (w/touchscreen) | 225 cd/m² |
| Brightness (w/o touchscreen) | 250 cd/m² |
| Display Type | Edge-Lit LED LCD |
| Display Resolution | 1280 x 1024 |
| Aspect Ratio | 5:4 |

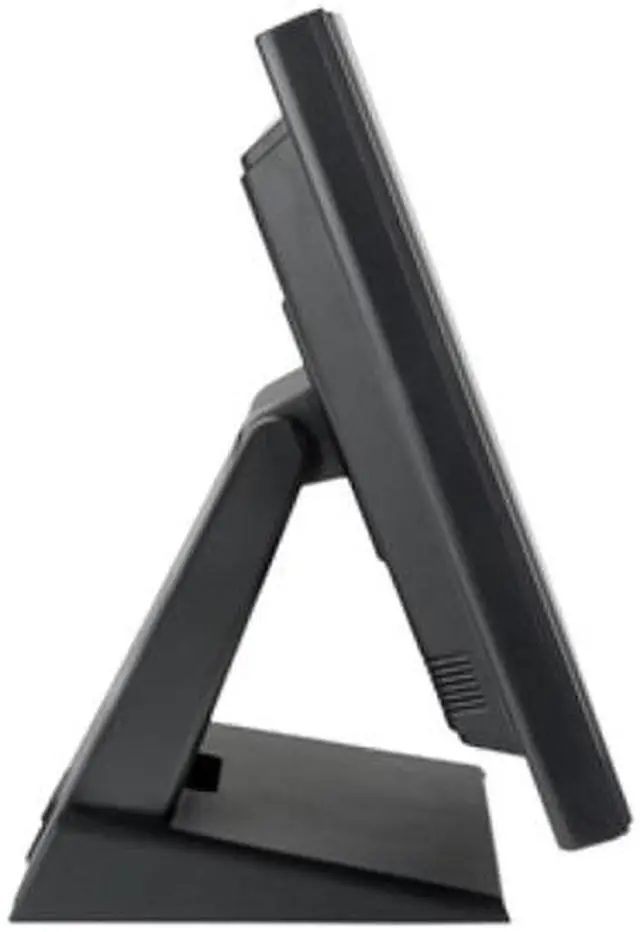

| Tilt Range | -5° to +90° |
| Palette | 16.7 million colors |
| Pixel Pitch | 0.294 mm |
| Refresh Rate | 56 to 75 Hz |
| Dimensions (W x H x D) | 17.0" x 15.4" x 8.6" (431.8 mm x 390.9 mm x219.0 mm) |
| Display Weight | 13.4 lb (6.1 kg) |
| Shipping weight | 19.4 lb (8.8 kg) |
| Video Inputs | Analog |
| Audio Output | 2 speakers, 1W/channel |
| Compatibility | Windows® 10, 8, 7, Vista, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Apple® Mac OS, Linux, HID Compliant - no drivers needed for basic touchscreen operation |
| External Connections | D-sub 15-pin, Type B socket USB, audio-in, AC power-in |
| Power Supply | Internal |
| Power Requirements | 100-240 VAC, 50/60Hz |
| Power Consumption (max) | 17.6W (1.4W standby, 0.8W off) |
| Operating Temperature | 0° to +40° C |

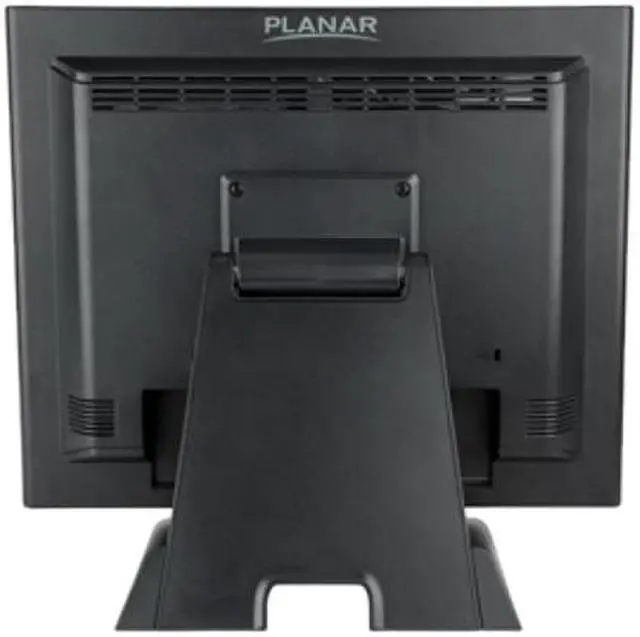

| VESA Compatible/Location | Built-in 100mm VESA, monitor back |
| Service and Support | 3-Year Customer First™ Warranty featuring FREE 2-Day Advance Replacement (US only) |
| Options / Features | Multi-language On screen display (OSD), Kensington® Security Slot |
| Product Approvals | UL/c-UL, FCC-Class B, CE, RoHS II |
| In the Box | PT1945P 19" Touchscreen LCD Monitor, Power Cord, VGA Cable, USB Cable (A to B), Audio-in Cable, User's Guide, Quick Start Guide |
- For image-conscious retail, hospitality or healthcare establishments, the Planar® PT1945P 19" monitor is optimized with multi-touch interactivity. With its ultra-thin profile enclosure to its sleek, edge-to-edge glass surface, the Planar PT1945P provides the ultimate end-user experience.
