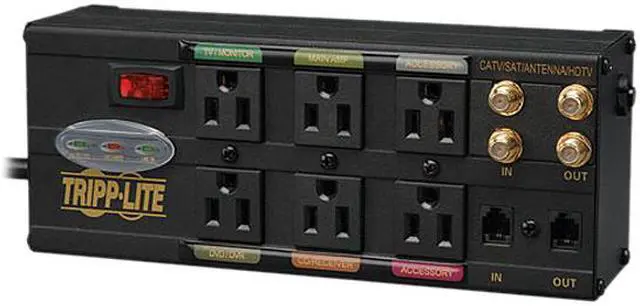

Tripp Lite AVBAR6 6-Outlet Ultimate Protection Isobar Audio/Video Surge Suppressor

Be the first to review this product...

Power Conditioner / Surge Protector
Black

Overview

Specs

Reviews

Tripp Lite's AVBAR6 Platinum Series Isobar Audio Video Surge / Spike Suppressor provides premium protection (3330 joules) stopping damaging surges and filtering disruptive EMI/RFI line noise so components perform at their peak! You can see and hear the difference: sharper, crisper video; deeper, fuller audio and longer component life spans. Perfect for small-to-medium Audio/Video installations: high-definition video displays, HD Cable / HD satellite sources and A/V receivers, DVD/CD players and more. Exclusive Isolated Filter Banks eliminate noise interference between components. 6 outlets (widely spaced outlets accommodate up to 2 transformers and plug-in safety covers), 2-line HD 2.2 Ghz coaxial protection and 1-line tel/modem protection safeguard an entire A/V system. $250,000 Ultimate Lifetime Insurance coverage (USA and Canada only). Includes all-metal housing, three diagnostic LEDs (Line OK, Grounded & Protected) and 6-ft. cord with a right-angle plug. Additional accessories include; 6-ft. coaxial cable and 6-ft. phone cord.

Model
Brand	Tripp Lite
Model	AVBAR6

Details
Type	Power Conditioner / Surge Protector
Color	Black
Specifications	Output - Frequency compatibility: 50 / 60 Hz - Circuit Breaker (amps): 12 - Outlet quantity / type: 6 NEMA 5-15R - Transformer accommodation: Accommodates 2 transformers Input - Nominal Input Voltage(s) Supported: 120V AC - Recommended Electrical Service: 120V,15A - Input connection type: NEMA 5-15P - Input plug features Space-saving right angle input plug - Input cord length (ft.): 6 - Input cord length (m): 1.83 - Input cord gauge, type: 14 gauge, SJT - Voltage compatibility (VAC): 120 - Maximum Surge Amps: 135000 Leds Alarms & Switches - Switches: Combination AC circuit breaker and illuminated 2-position on/off power switch - Diagnostic LEDs: Built-in LEDs confirm line power, protection and fault status Surge / Noise Suppression - AC suppression joule rating: 3330 - AC suppression response time: NM = instantaneous CM = < 1 ns - Protection modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression - Clamping voltage (RMS): 140V - UL1449 let through rating: 330V - EMI / RFI filtering: Up to 40 dB Dataline Surge Suppression - Telephone/DSL Protection: Yes - Telephone/DSL Protection Details: 1 line - Cable (Coax) Protection: Yes - Cable (Coax) Protection Details: 2 line (2.2 GHz Bandwidth)
Dimensions	2.5" x 9" x 3.5"
Weight	2.8 lbs.

Features
Features	3330 joules surge / spike suppression protection rating EMI/RFI line noise filtering help components perform at their peak (sharper, crisper video; deeper, fuller audio and longer component life spans) Isolated Filter Banks eliminate interference between connected components All-metal housing safely withstands the strongest surges 6 surge-protected NEMA 5-15R AC outlets safeguard an Audio / Video system $250,000 Ultimate Lifetime Insurance (USA and Canada only) covers connected components against surge damage...for life! Widely spaced outlets accommodate up to 2 transformers Four plug-in safety covers protect against accidental contact 2 sets of surge-protected Type F gold HD 2.2 GHZ coaxial connectors (with included 6-ft. coaxial cable) safeguard components on cable, satellite or antenna line 1-line tel/modem surge protection (with included 6-ft. phone cord) safeguards personal video recorders (Satellite, PVRs) on a single dial-up line. 6-ft. cord with right-angle NEMA 5-15P plug provides convenient location anywhere within a Audio Video system 3 diagnostic LEDs alert user to protection, line power and fault status Keyhole slots provide convenient wall or cabinet mounting Illuminated master switch provides one-touch power control over all components. Circuit breaker protects against dangerous system overload All-metal housing (black) stands up to the most demanding environments Tested to UL and cUL, RoHS compliant
