MAGELLAN Wireless Back-up Camera
Sold and Shipped by
Warranty & Returns

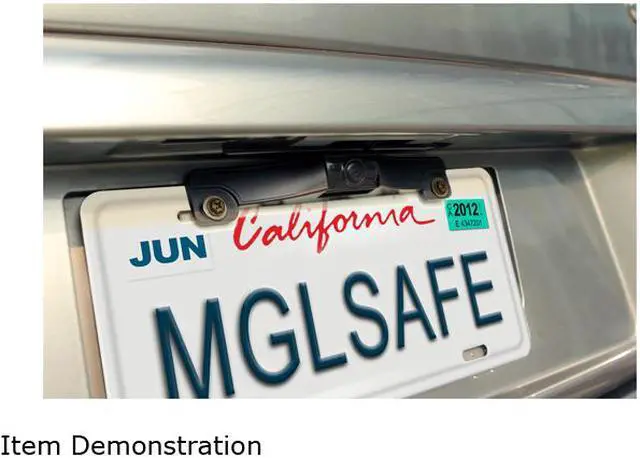

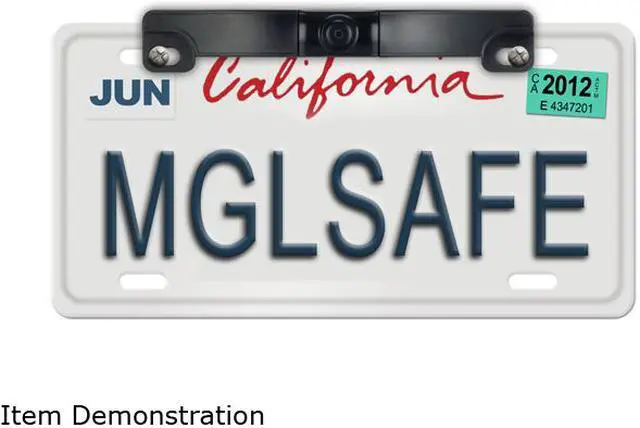

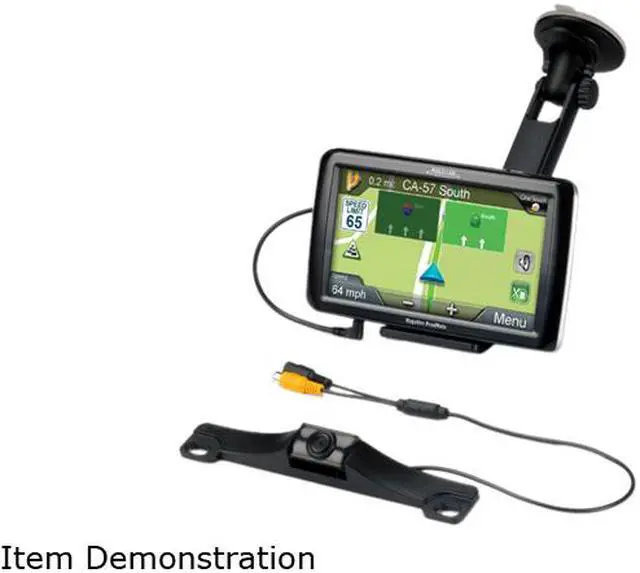

Model Brand MAGELLAN Type Other Details Compatibility RoadMate 1700 RoadMate 1700-MU RoadMate 1700-LM RoadMate 9055 RoadMate 9055-LM RoadMate 9165T RoadMate RV9145 RoadMate RV9145-LM RoadMate RV9165T-LM Specifications Camera: Imaging Censor: CMOS Resolution: 640x480 Vertical View angle Appx.: 100º Horizontal View angle Appx.: 120º Output Image: Mirror Image Ingress Rating: IP67 Transmitter: Frequency: 2400Mhz to 2483.5 Mhz RF Output Power: 18 dBm (typical) @ Max Power Current Consumption: 250mA Weather Proof: IPX4 Receiver: Receiver Sensitivity: -85 dBm Current Consumption: Max 150 mA Power Supply Camera: 12VDC Transmitter: 10V to 32V DC Receiver: 4.75V to 5.25V DC Features Features Wireless camera mounts on your license plate with transmitter in trunk or other protected area No need to route wires throughout your car. Substantial 45 foot range Great for most cars and small trailers. Camera is user-adjustable to 45 degrees Great for mounting in trucks and SUVs. Wide angle view lens with 120 degree horizontal and 100 degree vertical viewing area See people and objects coming into view behind your vehicle. Automatically switches from navigation mode to backup mode When you put your car in reverse, your navigator will automatically switch to rear view mode, allowing you to see what is behind your vehicle. Camera is dustproof and waterproof Rated IP67, highly protected in wet conditions and against dust which might impact performance. Transmitter is weather proof Rated IPX4, the transmitter is water resistant. Mirror output from camera Whatever the driver sees on the right side of the screen is what is on the right side of their car.
Dimensions & Weight Dimensions Camera: 7.8" x 1.06" x 0.98" Transmitter: 3.19" x 2.17" x 0.59" Receiver: 2.48" x 0.67" x 1.57" Weight Camera: 2.12 oz. Transmitter: 3.7 oz. Receiver: 1.41 oz.
Warranty, Returns, And Additional Information
Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.ca's
Standard Return Policy.
