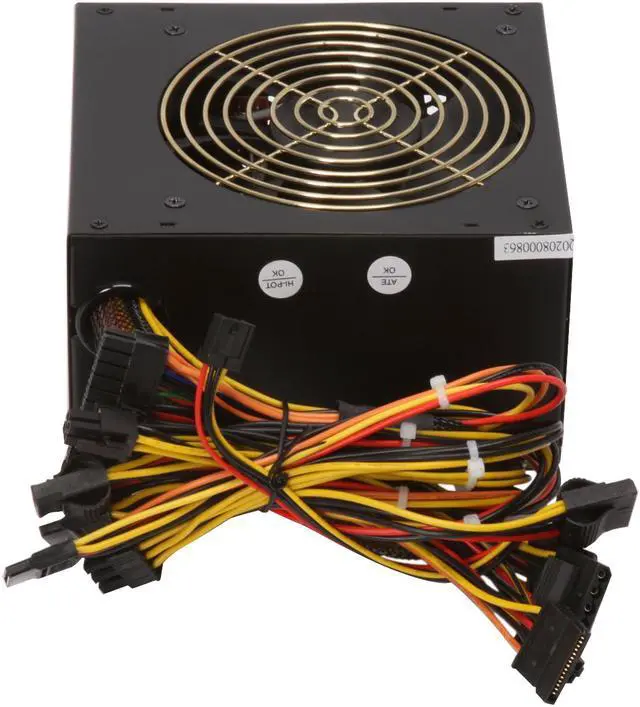

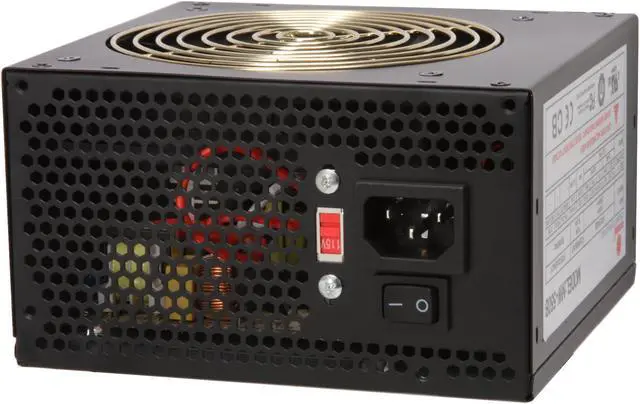

COOLMAX NW-550B 550 W ATX 12V v2.2 and Compatible with Core i3/i5/i7 Power Supply
- ATX 12V v2.2
- 115 / 230 V
Specs
Reviews (12)
Learn more about the CoolMax NW-550B
| Brand | COOLMAX |
|---|---|
| Model | NW-550B |
| Type | ATX 12V v2.2 |
|---|---|
| Maximum Power | 550 W |

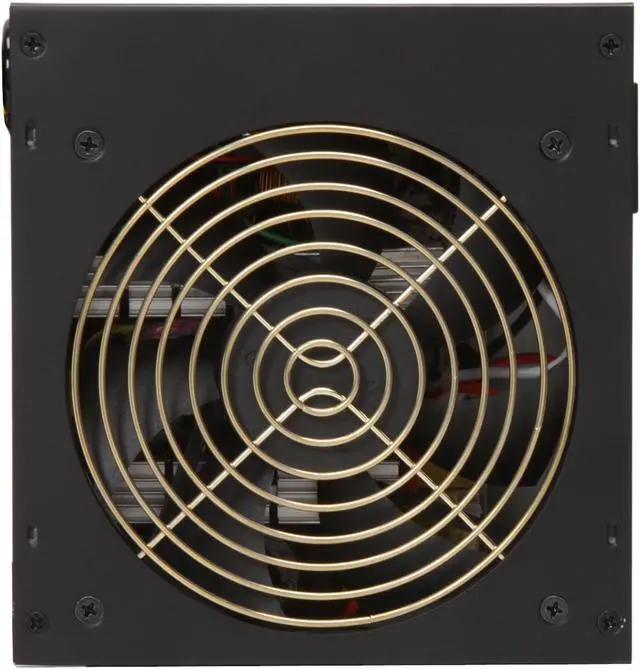

| Fans | 120mm cooling fan |

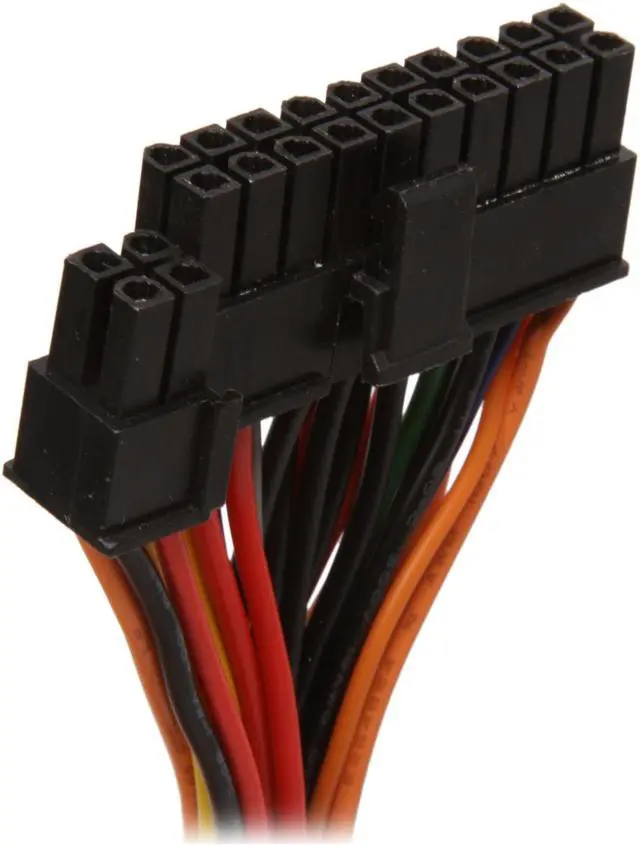

| Main Connector | 20+4Pin |
| +12V Rails | 3 |
| PCI-Express Connector | 1 x 6-Pin |
| SATA Power Connector | 4 |
| SLI | No |
| CrossFire | No |
| Modular | No |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |

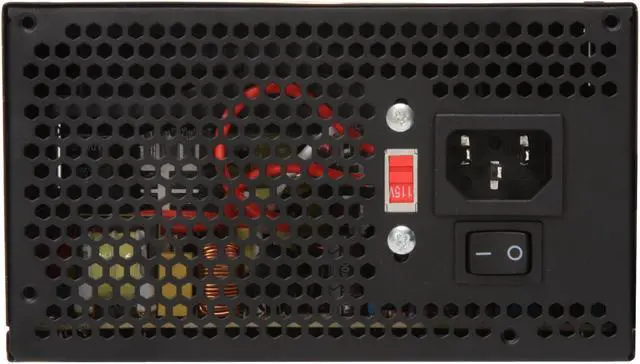

| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10 - 5.5A |

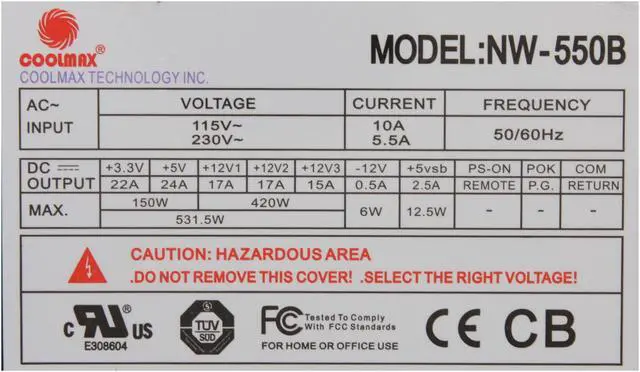

| Output | +3.3V@22A, +5V@24A, +12V1@17A, +12V2@17A, +12V3@15A, -12V@0.5A, +5VSB@2.5A |
| Approvals | CB, CE, FCC, TUV, cUL |

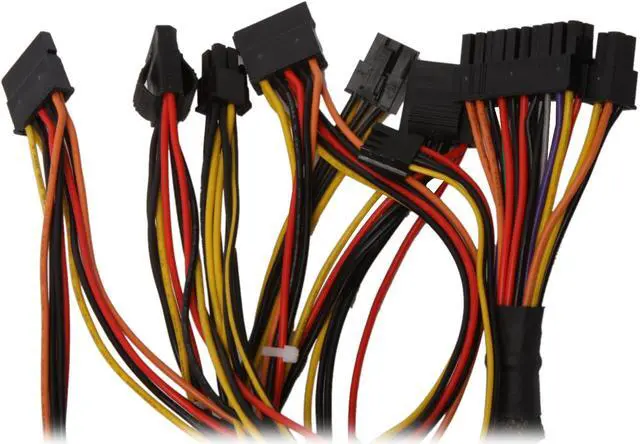

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(4/8Pin) 4 x Peripheral 4 x SATA 1 x Floppy 1 x PCI-E |
| Features | 120mm fan designed for long life, durability, and fastest cooling time Automatic fan setting for best heat dissipation Smart cable management Over/Under voltage protection |
|---|
| First Listed on Newegg | August 08, 2008 |
|---|
