Seasonic SSP-350ST Active PFC, 350W ATX, Intel Haswell ready, Japanese capacitor, Operating temperature 0-50°C, 80+ Bronze
- ATX12V
- 80 PLUS BRONZE Certified
Overview
Specs
Reviews (3)
SeaSonic SSP-350ST 350W ATX12V Power Supply
Features
- 80 Plus Bronze certified
- Specification compliance: ATX12V v2.3
- Support the latest Intel & AMD Socket
- PCI Express & Serial ATA ready
- Double forward converter circuit
- High efficiency and reliability
- Low ripple & noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection & Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
Product Information
| Model | SSP-350ST |
| Input frequency | 50-60 Hz |
| Inrush current, cold start | 100A max. |
| Efficiency: at normal input voltage | ≥82% |
| Line regulation | +/-1% typical |
| Load regulation | +/-5% typical |
| Cross regulation | +/-5% typical |
| Ripple / noise | 1% |
| MTBF, full load @ 25°C amb. Excluding the DC fan | >100k hrs |
| Power Factor Correction | >95% typical |
| Connectors |
|
| Dimension | L150 x W140 x H86mm (5.9" x 5.5" x 3.4") |
| Safety | UL, TUV, CB, CCC, BSMI |
| EMC | CE, FCC, C-tick |

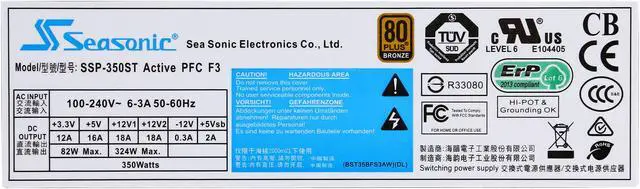

| DC Output: | AC Input: 100~240Vac 50/60Hz | |||||
| Model | 3.3V | 5V | 12V | -12V | 5Vsb | Total Power |
| SSP-350ST |
12A | 16A | 27A | 0.3A | 3.6A | 350W |
| 82W | 324W | 2W | 10W | |||
Remarks: 1. Combined +3.3VDC & +5VDC maximum power
