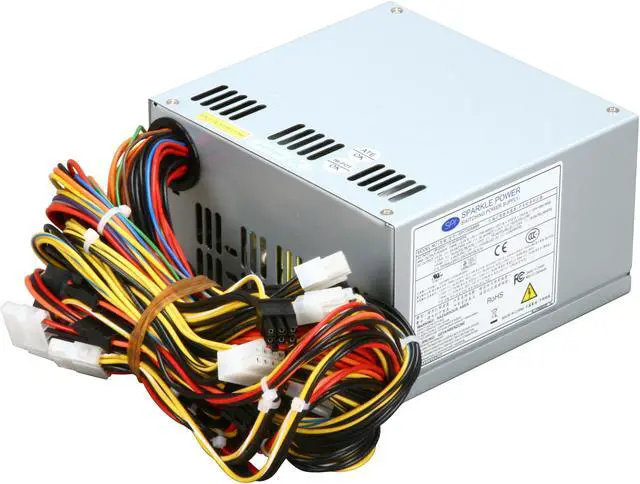

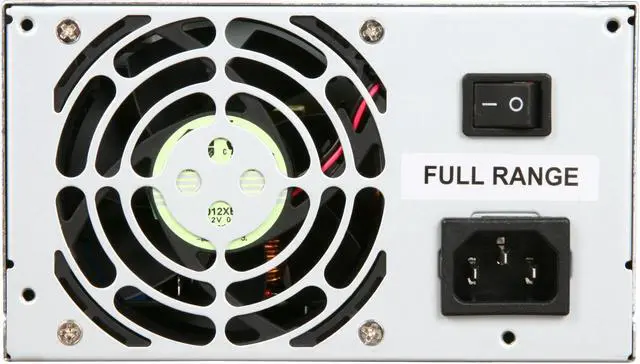

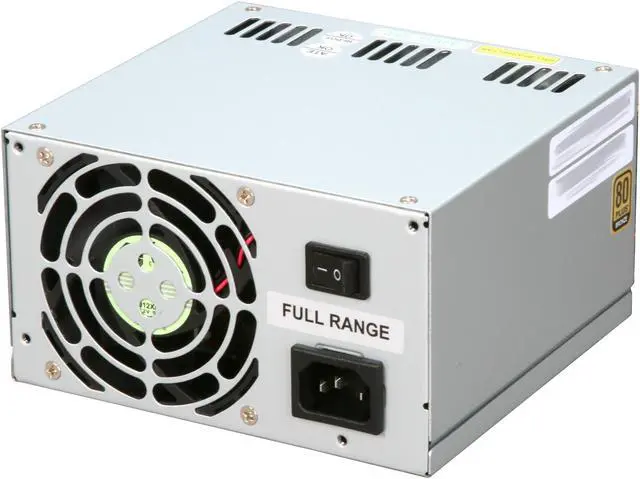

SPARKLE SPI700A8BB 700W Single ATX12V Switching Power Supply
- 700W Single
- 1 Fans
Specs
Reviews (1)
Learn more about the Sparkle Power Inc. SPI700A8BB
| Brand | SPARKLE |
|---|---|
| Model | SPI700A8BB |
| Type | ATX12V |
|---|---|
| Single/Redundant | Single |
| Maximum Power | 700W |

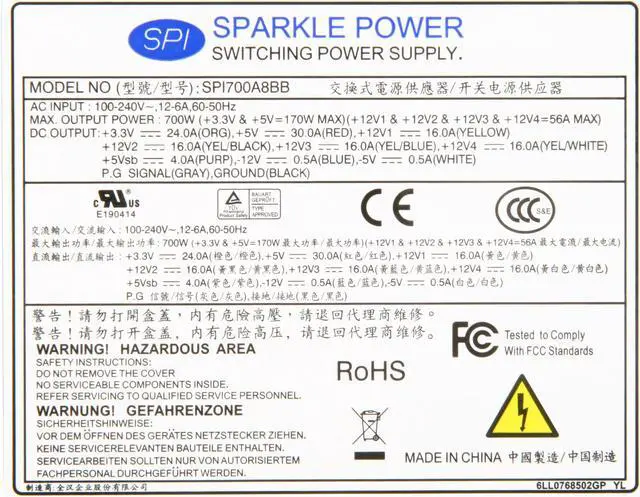

| Output Current | +3.3V@24A, +5V@30A, +12V1@16A, +12V2@16A, +12V3@16A, +12V4@16A, -12V@0.5A, +5Vsb@4A |
| Input Voltage | 90 ~ 265Vac (RMS), Full Range Input |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | Max 12A (RMS) @ 115Vac, 6A (RMS) @ 230Vac |
| Fans | 1 |
| MTBF | 100,000 hours on maximum load at +25°C |
| Efficiency | 82% minimum, typical up to 87% |
| Hold-up Time | 17ms minimum at nominal input voltage |
| Protection | Output over voltage, short circuit, and over current protection |
| Features | 80 Plus Bronze RoHS Compliant Noise Killer (thermal fan speed control function) Low noise and ripple 100% Hi-pot, ATE, and burn-in tested Re-settable power shut down |
|---|
| Dimensions | 5.5" x 5.9" x 3.4" |
|---|---|
| Weight | 5 |
| Humidity | 10-90% on operating, 95% on storage |
|---|---|
| Temperature | 0° C - 50° C |
| First Listed on Newegg | January 14, 2011 |
|---|
