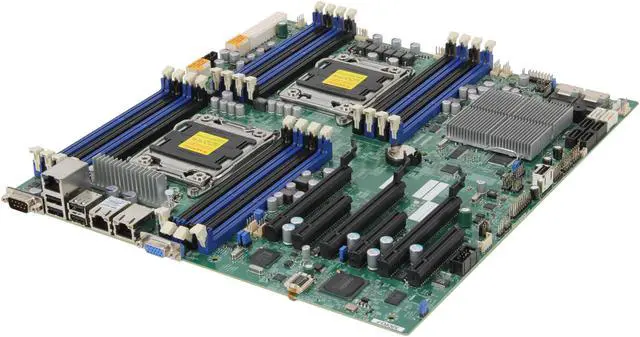

Main image of SUPERMICRO MBD-X9DR3-F-O SSI EEB Server Motherboard Dual LGA 2011 DDR3 1600

100%

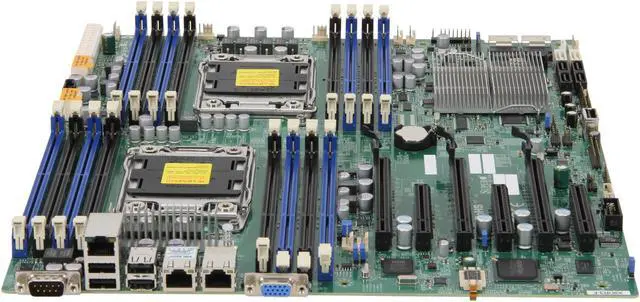

Alt view image 2 of 5 - SUPERMICRO MBD-X9DR3-F-O SSI EEB Server Motherboard Dual LGA 2011 DDR3 1600

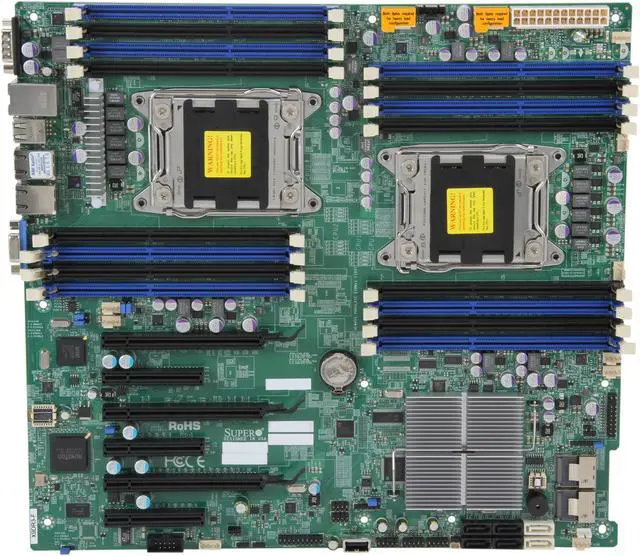

Alt view image 3 of 5 - SUPERMICRO MBD-X9DR3-F-O SSI EEB Server Motherboard Dual LGA 2011 DDR3 1600

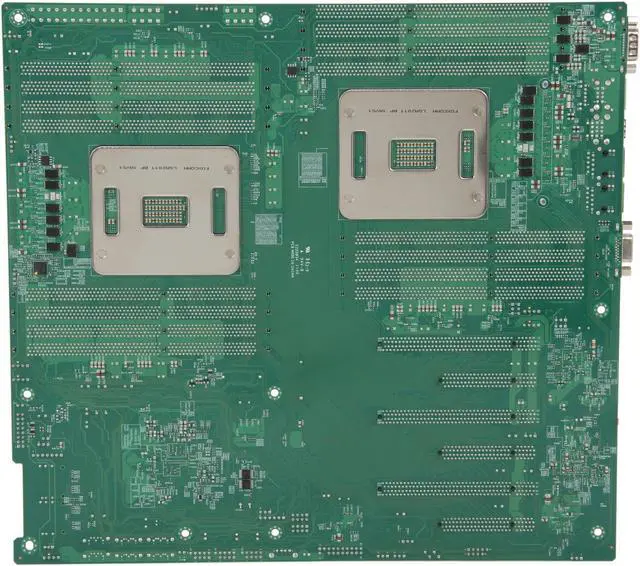

Alt view image 4 of 5 - SUPERMICRO MBD-X9DR3-F-O SSI EEB Server Motherboard Dual LGA 2011 DDR3 1600

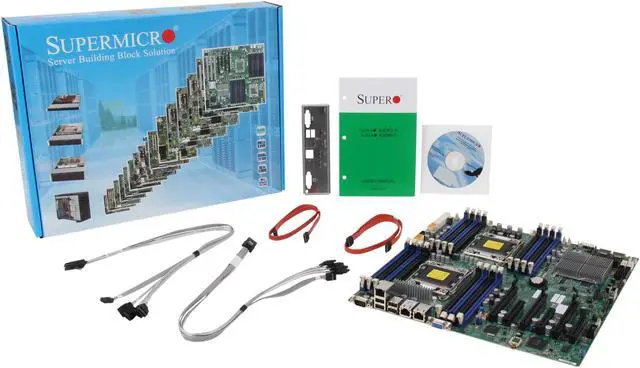

Alt view image 5 of 5 - SUPERMICRO MBD-X9DR3-F-O SSI EEB Server Motherboard Dual LGA 2011 DDR3 1600

360^°

Shop All Supermicro Products

SUPERMICRO MBD-X9DR3-F-O SSI EEB Server Motherboard Dual LGA 2011 DDR3 1600

(17) Write a Review

Dual LGA 2011
Intel C606 Chipset
16 x 240pin

Overview

Specs

Reviews (17)

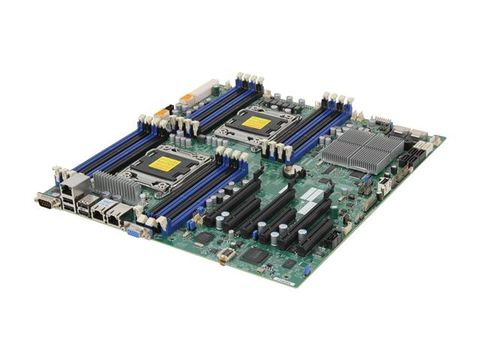

SUPERMICRO MBD-X9DR3-F-O SSI EEB Server Motherboard

Features

Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
Intel® C606 chipset; QPI up to 8.0GT/s
Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
Expansion slots: 3 x16 PCI-E 3.0 and 3 x8 PCI-E 3.0
Intel® i350 Dual port GbE LAN
4x SATA2 and 2x SATA3 ports
8x SAS ports from C606
Integrated IPMI 2.0 and KVM with Dedicated LAN
11x USB 2.0 ports (4 rear, 6 via header + 1 Type A)

Specifications

Product SKUs
MBD-X9DR3-F -O	X9DR3-F (Standard Retail Pack)
MBD-X9DR3-F -B	X9DR3-F (Bulk Pack)
Physical Stats
Form Factor	E-ATX
Dimensions	12" x 13" (30.5cm x 33.2cm)
Processor/Cache
CPU	Dual Socket R (LGA 2011) Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 135W TDP **)
Note	† BIOS version 3.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.
Cache	Up to 30MB
System Bus	QPI up to 8 GT/s
System Memory
Memory Capacity	16x 240-pin DDR3 DIMM slots Up to 1TB DDR3 ECC LRDIMM Up to 512GB DDR3 ECC RDIMM Up to 128GB DDR3 ECC/non-ECC UDIMM
Memory Type	1866/1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs Support ECC and non-ECC UDIMMs * Maximum memory speed may be capped by CPU. Please verify that the chosen CPU can support desired memory speed.
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C606 chipset
AHCI SATA	SATA 2.0 3Gb/s with RAID 0, 1, 5, 10 SATA 3.0 6Gb/s with RAID 0, 1, 5, 10
SCU SATA (Storage Controller)	SATA 2.0 3Gb/s with RAID 0, 1, 10
SAS	SAS from C606 RAID 0, 1, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
Video	Matrox G200eW
Input / Output
SATA	2 SATA 3.0 ports (6Gb/s) 4 SATA 2.0 ports (3Gb/s)
SAS	8 SAS/SATA ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	11 USB 2.0 ports total (4 rear + 6 via header + 1 Type A)
Video	1 VGA port
Serial Port / Header	2 Fast UART 16550 ports: 1 rear and 1 header
DOM	1 DOM (Disk on Module) power connector
TPM	1 TPM 1.2 20-pin Header
Expansion Slots
PCI-Express	3 (x16) PCI-E 3.0 slots 3 (x8) PCI-E 3.0 slots (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard Support SMBIOS 2.7.1 UEFI 2.3.1
Management
Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support SuperDoctor® III Watch Dog NMI Optional IPMI 1.5 / 2.0
Power Configurations	ACPI / APM Power Management Main Switch Override Mechanism CPU Fan auto-off in sleep mode Power-on mode for AC power recovery
PC Health Monitoring
CPU	Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, 4 Memory Voltages. 5+1 Phase-switching voltage regulator
FAN	8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header SDDC Support

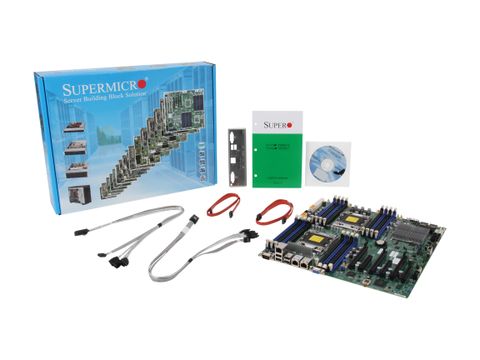

What's in the Box

Dual Intel Xeon E5 CPU SupportFeaturing dual LGA2011 sockets and Intel C606 chipset, the SUPERMICRO MBD-X9DR3-F-O server motherboard supports up to two Intel Xeon E5-2600 processors to address the demanding needs for high performance and balanced architecture by modern business. The Intel Xeon E5 processor packs more cores, larger cache, greater memory, and new technologies like Intel Turbo Boost Technology 2.0, delivering up to 80% performance boost, reduced I/O network latency and increased energy efficiency.
MemoryThe SUPERMICRO MBD-X9DR3-F-O has sixteen DIMM sockets that can support up to 512 GB of DDR3-1600/1333/1066/800 ECC RDIMM or up to 128GB of ECC UDIMMs, delivering ample capacity for demanding applications.
Dual Gigabit LAN PortsIncorporating Intel i350 GbE controller in the motherboard, the SUPERMICRO MBD-X9DR3-F-O server motherboard is outfitted with two Gigabit Ethernet LAN ports to optimize network bandwidth, data throughput and communication efficiency.
Easy ExpandabilityThree PCIe 3.0 x16 slots and three PCIe 3.0 x8 support a range of I/O expansion cards and discrete graphics cards for flexible expansion.
Integrated ManagementThe Nuvoton WPCM450 BMC (Baseboard Management Controller) with IPMI (Intelligent Platform Management Interface) v2.0 support enables system health monitoring and computer events management regardless of the OS or power state. The KVM-over-LAN support provides a complete remote management upgrade solution.

CPU Socket Type	Dual LGA 2011
CPU Type	Dual Intel Xeon E5-2600 Series
QPI	Up to 8.0GT/s

Number of DDR3 Slots	16 x 240pin
DDR3 Standard	DDR3 1600
Maximum Memory Supported	512GB
ECC Supported	Yes
Registered	Yes

SATA	4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
SATA RAID	RAID 0/1/10/5 (AHCI) RAID 0/1/10 (SCU)
SAS	8x SAS/SATA ports
SAS RAID	RAID 0/1/10

LAN Chipset	Intel I350-AM2
LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

COM	1
Video Ports	D-Sub
USB 1.1/2.0	4 x USB 2.0
