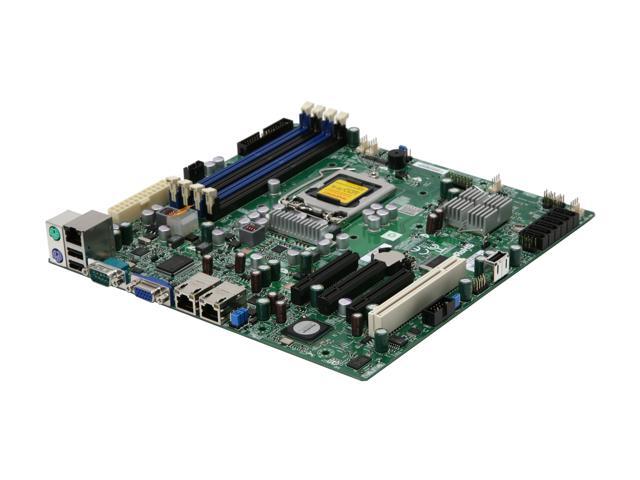

SUPERMICRO MBD-X8SIL-F-O Xeon X3400 / L3400 / Core i3 series Dual LAN Micro ATX Server Board w/ Remote Management
- LGA 1156
- Intel 3420
- 4 x 240pin
Specs
Reviews (19)
Learn more about the Supermicro MBD-X8SIL-F-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X8SIL-F-O |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Intel Xeon X3400 series / Xeon L3400 series / Core i3 / Pentium G6950 / CeleronG1101 |
| North Bridge | Intel 3420 |
|---|
| Number of DDR3 Slots | 4 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1333 / 1066 / 800 MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| Maximum Memory Supported | Supports up to 32 GB DDR3 ECC Registered memory (RDIMM) Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| ECC Supported | Dual Core processors of Core i3 and Pentium: support ECC UDIMM only |
| Registered | Yes |
| PCI Express x8 | 2 (x8) PCI-E 2.0 slot |
|---|---|
| PCI Express x4 | 1 (x4) PCI-E (using x8 slot) |
| PCI Slots | 1 x PCI Slot |
| SATA | 6 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) |
| Onboard Video Chipset | Matrox G200eW |
|---|
| LAN Chipset | Intel 82574L |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82574L |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Features | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | October 15, 2009 |
|---|
