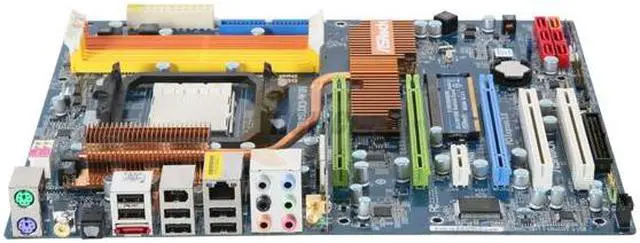

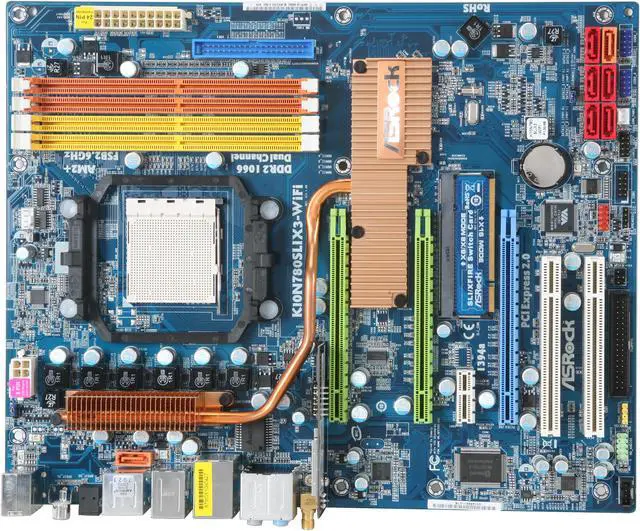

ASRock K10N780SLIX3-WiFi AM2+/AM2 NVIDIA nForce 780a SLI ATX AMD Motherboard

(153) Write a Review
  • NVIDIA nForce 780a SLI
  • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
  • DDR2 1066 with AM2+ CPU , and DDR2 800/667/533 with AM2 CPU
Specs
Reviews (153)

Learn more about the ASRock K10N780SLIX3-WiFi

Model
Brand ASRock
Model K10N780SLIX3-WiFi
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
Chipsets
Chipset NVIDIA nForce 780a SLI
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1066 with AM2+ CPU , and DDR2 800/667/533 with AM2 CPU
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 3 x PCI Express 2.0 x16 slots (green @ x16 mode, blue @ x8 mode)
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
SATA RAID 0/1/0+1/5/JBOD
Onboard Audio
Audio Chipset Realtek ALC890
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8211B
Max LAN Speed 1Gbps
Wireless LAN WiFi IEEE 802.11 b / g
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features ASRock WiFi-802.11g module
- 54Mbps IEEE 802.11g / 11Mbps IEEE 802.11b
- Supports Software Access Point mode (AP mode) and Station mode (Infrastructure mode and Ad-hoc mode)
Packaging

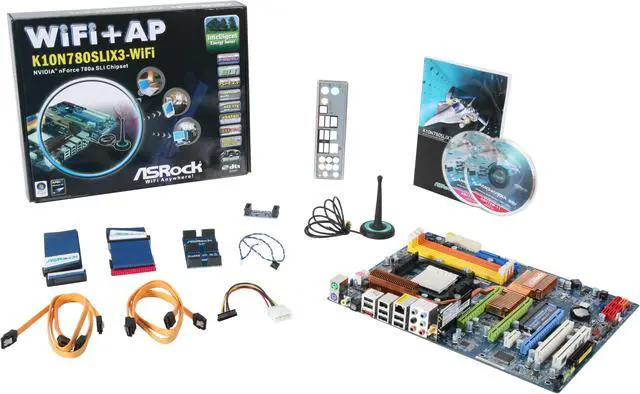

Package Contents K10N780SLIX3-WiFi
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
3-way & 2-way SLI Bridge
WiFi Antenna
Additional Information
First Listed on Newegg July 23, 2008
