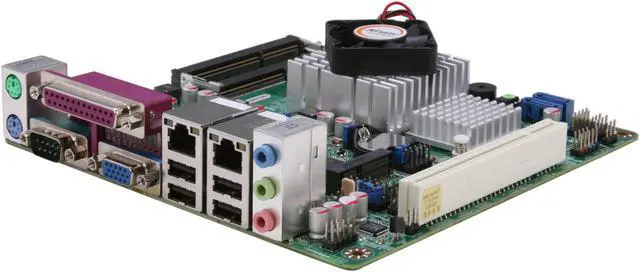

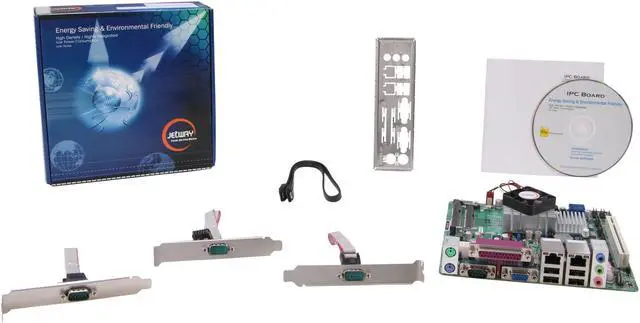

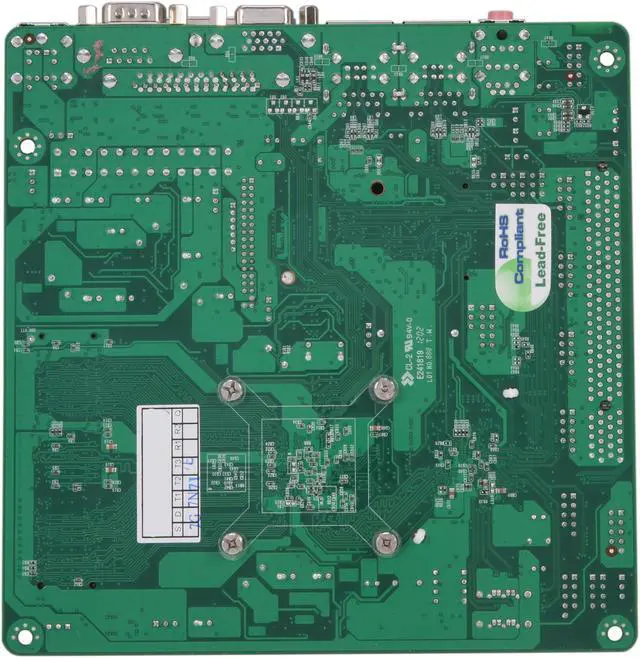

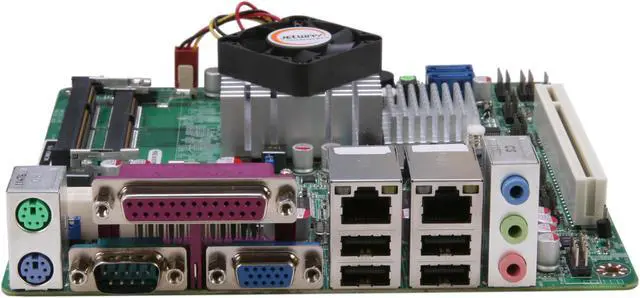

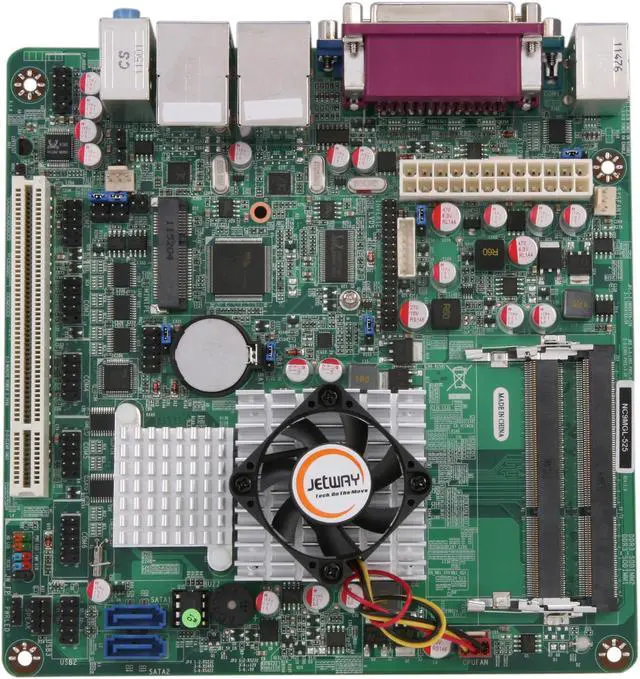

JetWay JNC9MGL-525 Intel Atom D525 (1.8GHz, Dual-Core) Intel NM10 Mini ITX Motherboard / CPU Combo

Be the first to review this product...
  • Intel Atom
  • DDR3 800
  • Intel GMA 3150
Specs
Reviews

Learn more about the JETWAY JNC9MGL-525

Model
Brand JetWay
Model JNC9MGL-525
Combo Type Motherboard / CPU Combo
Bundle
CPU Intel Atom D525 (1.8GHz, Dual-Core)
With Cooler Yes
Supported CPU
CPU Type Intel Atom
Supported CPU Technologies Hyper-Threading Technology
Chipsets
North Bridge Intel NM10
Memory
Number of Memory Slots 2x204pin SO-DIMM
Memory Standard DDR3 800
Maximum Memory Supported 4GB
Expansion Slots
PCI Slots 1 x PCI Slot
Mini Card Slots 1 x Mini PCIe
Storage Devices
SATA 2 x SATA 3.0Gb/s
Onboard Video
Onboard Video Chipset Intel GMA 3150
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111EVL
Second LAN Chipset Realtek 8111EVL
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0
Features
Features Intel Atom D525 Processor, 1.8GHz, Dual-Core, 45nm, 13W

Intel NM10 Express Chipset

Integrated Intel GMA 3150 Graphics, 400MHz

Supports 2 x DDR3-1066 SO-DIMM up to 4GB

Supports 2 x SATA2 3Gb/s Devices, HD Audio

Dual Gigabit LAN with Enhanced Surge Protection

6 x Serial Ports, Parallel Port, PCI & Mini-PCI-E Expansion

VGA and 18-bit LVDS Video Outputs

Watchdog Timer System Reset, 10-255 min/sec

Mini-ITX Form Factor (170mm x 170mm)
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Additional Information
First Listed on Newegg March 06, 2012
