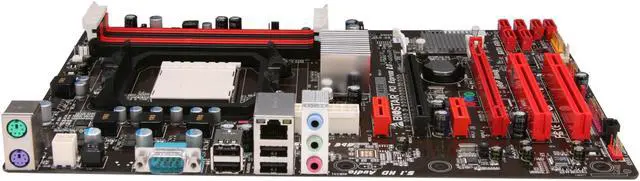

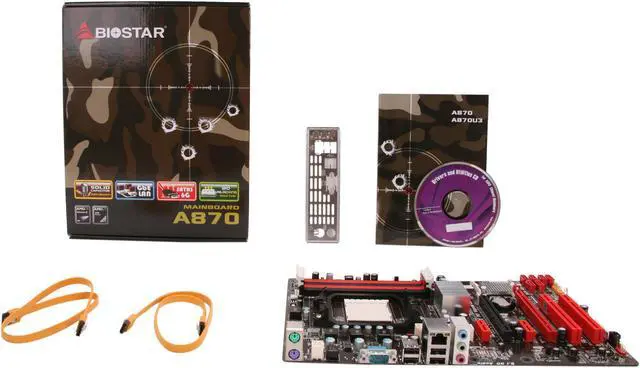

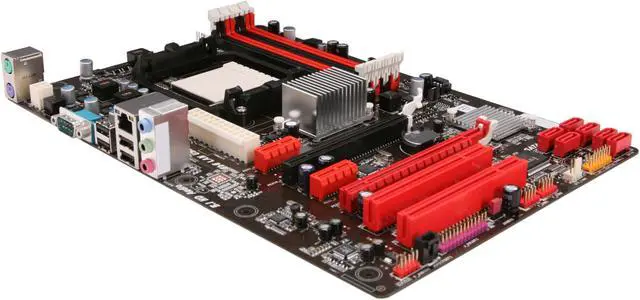

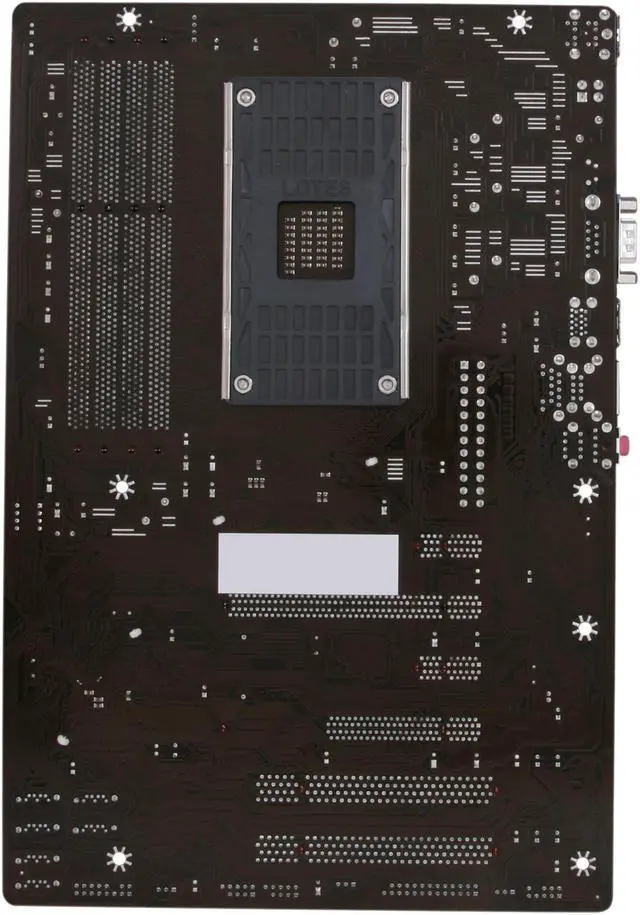

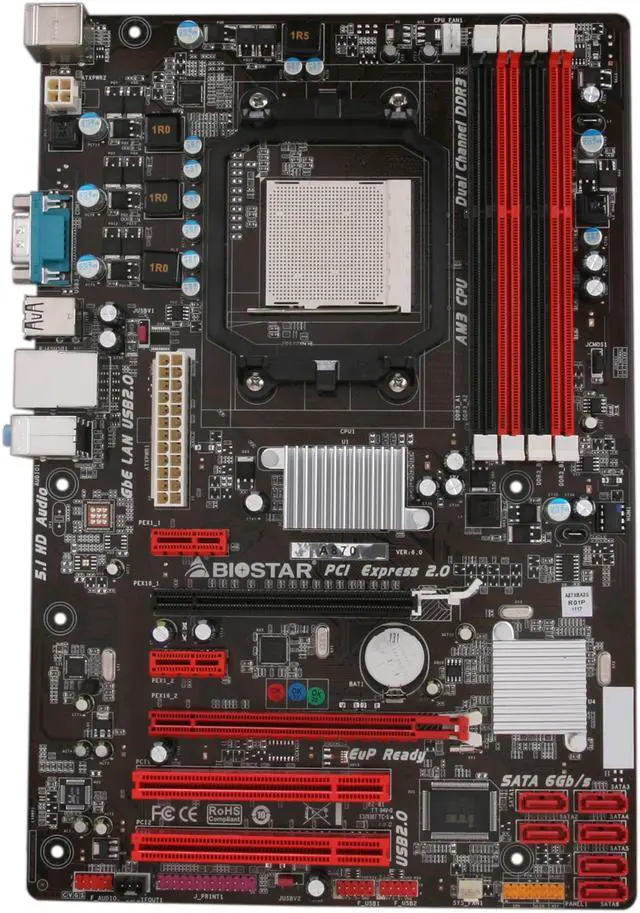

BIOSTAR A870 AM3 AMD 870 ATX AMD Motherboard
- AMD 870
- Phenom II / Athlon II / Sempron
- DDR3 800/1066/1333(supportted by CPU model)/1600(OC)
Specs
Reviews (41)
Learn more about the Biostar A870
| Brand | BIOSTAR |
|---|---|
| Model | A870 |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Phenom II / Athlon II / Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 870 |
|---|---|
| South Bridge | AMD SB850 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 800/1066/1333(supportted by CPU model)/1600(OC) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 (x16, x4) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x COM (Serial Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.07" |
| Power Pin | 24 Pin |
| Features | Maximum CPU TDP (Thermal Design Power) : 125Watt |
|---|
| First Listed on Newegg | June 15, 2011 |
|---|
