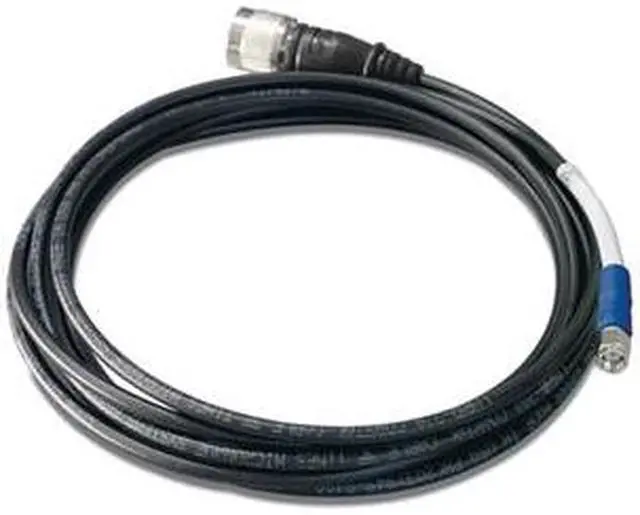

TRENDnet 6.5 ft. LMR200 Reverse SMA to N-Type Cable Model TEW-L202

neweggOUT OF STOCK.

  • Black
  • 2 Connector Number
  • SMA to N-Type
ICON Loading...

The low loss Reverse SMA to N-Type Cable extends your wireless Antenna up to 2 meters to provide optimal placement for your antenna outdoors. Connect business networks from building to building wirelessly or provide wireless Internet access for hot spot applications! This cable makes wireless communication possible by providing low loss communication between your access point and antenna.


Learn more about the TRENDnet TEW-L202

Model

Brand
TRENDnet
Model
TEW-L202

Spec

Type
SMA to N-Type
Length
6.5 ft.
Color
Black
Connector Number
2
Specifications
Construction
Inner Conductor (Solid BC) 0.044 in. (1.12 mm)
Dielectric (Foam PE) 0.116 in. (2.95 mm)
Outer Conductor (Aluminum Tape) 0.121 in. (3.07 mm)
Over Braid (Tinned Copper ) 0.144 in. (3.66 mm)
Jacket (PE) 0.195 in. (4.95 mm)
Mechanical
Bend Radius: Installation 0.5 in. (12.7 mm)
Bend Radius: Repeated 2.0 in. (50.8 mm)
Bending Moment 0.2 ft-lb (0.27 N-m)
Weight 0.022 lb/ft (0.03 kg/m)
Tensile Strength 40 lb (18.2 kg)
Flat Plate Crush 15 lb/in. (0.27 kg/mm)
Environment
Temperature Operating: -40° C ~ 85°C (-40°F~185°F)
Storage: -70° C ~ 85°C (-94°F~185°F)
Electrical
Cut-off Frequency 39 GHz
Velocity of Propagation 83%
Dielectric Constant 1.45
Time Delay 1.22 nS/ft (4.02 nS/m)
Impedance 50 ohms
Capacitance 24.5 pF/ft (80.3 pF/m)
Inductance 0.061uH/ft (0.20 uH/m)
Shielding Effectiveness > 90 dB
DC Resistance: Inner Conductor Outer Conductor 5.36ohms/1000ft (17.6 ohms/km)
4.9 ohms/1000ft (16.1 ohms/km)
Voltage Withstand 1000 Volts DC
Jacket Spark 3000 Volts RMS
Peak Power 2.5 kW

Features

Features
Wi-Fi Compliant with 2.4GHz 802.11 b/g & 5GHz 802.11a Devices for extending wireless networks
Reverse SMA Female to N-Type Male Connector.
Optimal placement of your existing Wi-Fi Device permits you to maximize its wireless performance.
Flexible outer conductor allows the tightest bend radius available for any cable of similar size and performance
Provides flexible Low-loss communication for wireless antenna
50dB RF Shielding is 10 dB greater than typical single shielded coax (40 dB).
Multi-ply bonded outer foil conductor is rated conservatively at > 90 dB.
Weatherproof cable design for outdoors exposure with best materials for UV resistance
Polyethylene jacketed cable designed for outdoor use
Easy and quick deployment into a WLAN environment

Quick Info


Customer Reviews of the TRENDnet TEW-L202

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • pchelp
  • 5/28/2014 3:29:06 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsWorks

Pros: Does the job.

Cons: No cons.

Other Thoughts: I used this to connect an RT-N66U router to a TP-Link TL-ANT2424B parabolic antenna. Easy as falling off a log.

Did you find this review helpful? Yes No

  • econcepts
  • 1/12/2014 6:12:09 PM
  • Tech Level: High
  • Ownership: less than 1 day

4 out of 5 eggslooks ok

Pros: Just the correct length to go between the router and the lightning arrester.

Cons: bit pricy for what is essentially an adapter

Other Thoughts: The cable is this length because it should only go to the ligntning arrester (such as NEP# N82E16812115055), which should be between the router and the antenna if outdoors.

Did you find this review helpful? Yes No

  • Need a life
  • 6/5/2009 7:32:05 AM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsworks with buffalo router

Pros: It helped connect my type N antenna to my buffalo router

Cons: it is only 6.5' long. Why don't you sell longer lengths?

Did you find this review helpful? Yes No
