Item#: N82E16811148058

Logisys CS4801BK Black 4U Rackmount Server Case 3 External 5.25" Drive Bays

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 3 External 5.25" Drive Bays
  • 2 80mm Fans 1 120mm Fans

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

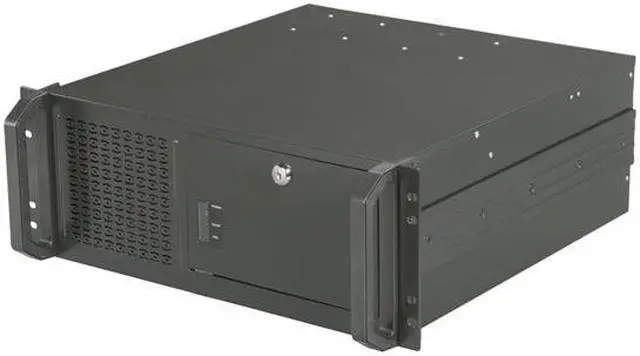

4801 All Black 4U Industrial Rackmount Case


The rackmount chassis provides your server a sturdy structure, reliability and performance. The 4U form factor chassis accepts seven full-height expansion cards and 12 x 9.6" ATX / Micro ATX motherboards.

With one external 3.5" bay, seven internal 3.5" bays, and three external 5.25" bays (one internal 3.5" and external 3.5" Share), a total storage capacity up to seven hard drives gives you more options of RAID configuration.

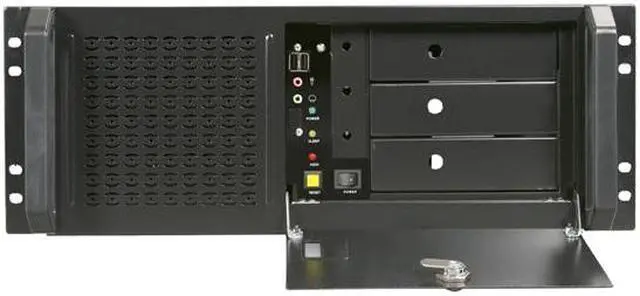

Power and reset switches are in the front for easy access with a lockable cover to protect it from accidental touch. Also, the front panel has LED indicators for power and HDD, plus two USB ports and audio jacks for quick connection to external devices.



  • Chassis Type: Rackmount
  • Color: Black
  • Motherboard Compatibility: Up to 12" x 9.6" ATX
  • Form Factor: 4U
  • Drive Expansion:
    • 3 x External
    • 5.25" Drive Bays
    • 1 x External 3.5" Drive Bay
    • 7 x Internal 3.5" Drive Bays
    • Expansion Slots: 7
    • Front Ports: 2 Front Access USBs
  • Cooling System: 2 x 80mm Fans, 1 x 120mm Fan
  • Physical Dimension (L x W x H): Appr. 17.75 x 17.5 x 7.0"
  • Package Dimensions (L x W x H): 23.5" x 23" x 10.5" (Double Box)

Learn more about the Logisys Computer CS4801BK

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
  • We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1, 2016 and December 24, 2016 you will have until January 31, 2017 to return your product. There's nothing additional that you have to do!
    • Return for refund until: January 31, 2017
    • Return for replacement until: January 31, 2017
  • This item is covered by's Extended Holiday Return Policy.
