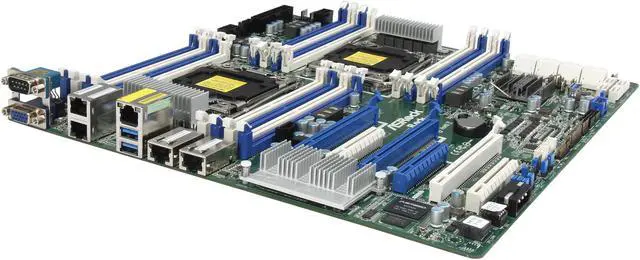

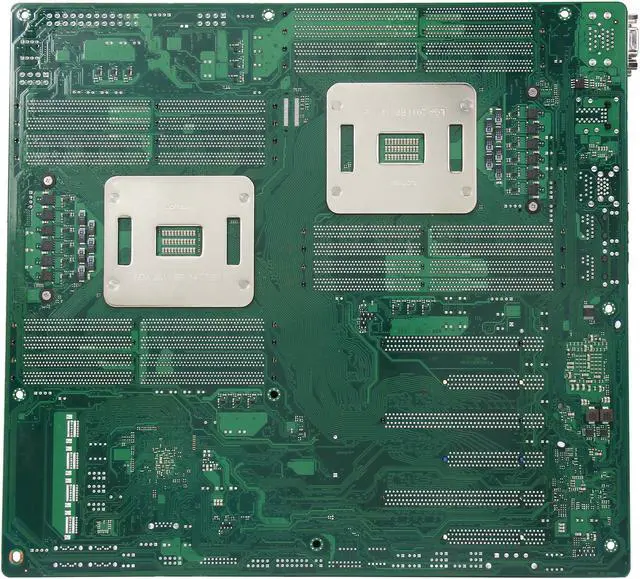

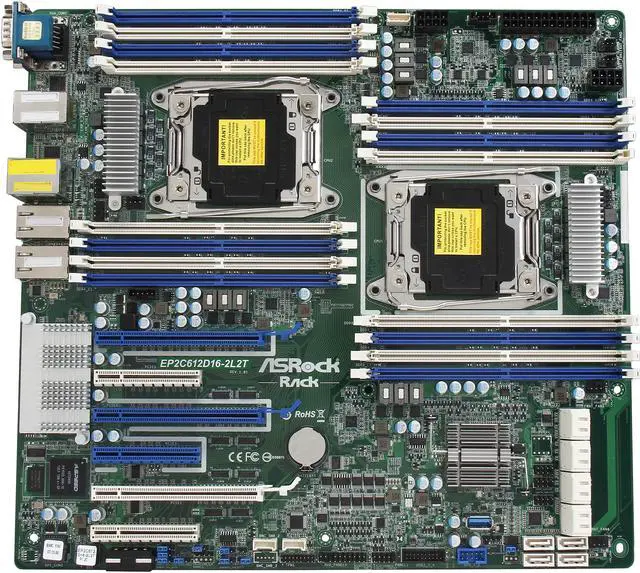

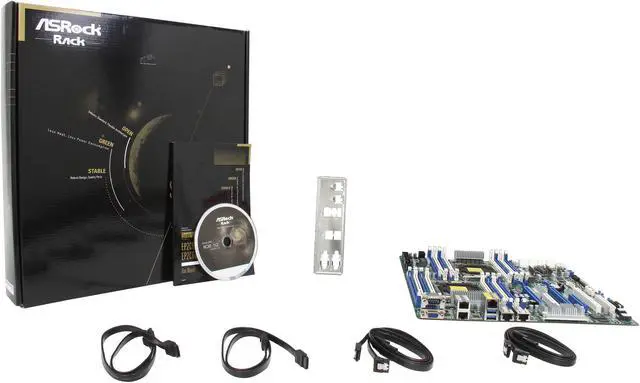

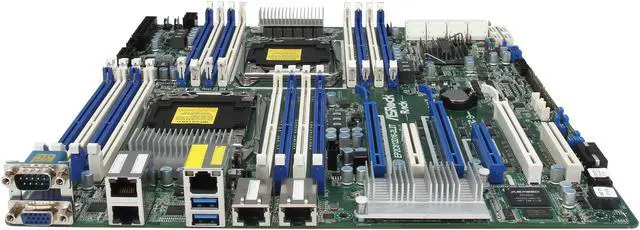

ASRock EP2C612D16-2L2T SSI EEB Server Motherboard Dual Socket LGA 2011 R3

MB Physical Stats

Form Factor	SSI EEB
Dimensions	12 x 13" (30.5 x 33cm)

---

Processor System

CPU	Intel® Xeon Processor E5-2600/4600 & v3 Series
Socket	Dual Socket LGA 2011 R3
Chipset	Intel® C612

---

System Memory

Capacity	16 DIMM slots (support NVDIMM)
Type	Quad Channel memory technology Supports 2133/1866/1600 LR/R/ECC DIMM and NVDIMM
Voltage	1.2V

---

Expansion Slots

PCIe 3.0 x16	3 slots
PCIe 3.0 x8	3 slots

---

Storage

SATA Controller	Intel® C612: 10 x SATA3 6Gbps
Additional Storage Controller	Marvell 9172: 2 x SATA3 6Gbps

---

Ethernet

Interface	10G by Intel® X540; 1000 / 100 / 10Mbps by Intel® i210
LAN Controller	2 x RJ45 10G base-T by Intel® X540 2 x RJ45 GLAN by Intel® i210 1 x RJ45 Dedicated IPMI LAN port Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE LAN1 Supports NCSI

---

Management

BMC Controller	ASPEED AST2400
IPMI Dedicated LAN	1 x Realtek RTL8211E for dedicated management GLAN
Features	Watch Dog NMI

---

Graphics

Controller	ASPEED AST2400
VRAM	DDR3 16MB

---

Rear Panel I/O

VGA Ports	1 x D-Sub
USB 3.0 Ports	2
LAN Ports	4 + 1 (IPMI) LAN port (RJ45) LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Ports	1 (COM1)

---

Internal Connector

Auxiliary Panel Header	1 (includes chassis intrusion, location button & LED, front LAN LED)
TPM Header	1
IPMB Header	1
Fan Header	2 CPU Fans, 6 System Fans (4-pin)
ATX Power	1 (24-pin) + 2 (8-pin)
USB 3.0 Header	1 (supports 2 USB 3.0)
USB 2.0 Header	1 (supports 2 USB 2.0)
Type A USB 3.0 Port	1
Thunderbolt AIC Connector	1

---

System BIOS

BIOS Type	128Mb AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8 Support ASRock Rack Instant Flash

---

Hardware Monitor

Temperature	CPU Temperature Sensing System Temperature Sensing Card Side Temperature Sensing
Fan	CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control
Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB

---

Operating Systems Supported

Operating System	Microsoft Windows Server 2008 R2 SP1 (64-bit) Server 2012 (64-bit) Server 2012 R2 (64-bit) Linux RedHat Enterprise Linux Server 5.10/6.5 (32- / 64-bit) CentOS 5.10 / 6.5 (32- / 64-bit) SUSE Enterprise Linux Server 11 SP3 (32- / 64-bit) FreeBSD 9.1 (32- / 64-bit) Fedora core 19 (64-bit) Ubuntu 12.04.2 (64-bit) / 12.10 (64-bit) Virtual VMWare ESXi 5.5 (not supported for Marvell 9172)

---

Environment

Temperatures	Operating: 14 - 95°F (10 - 35°C) Non-operating: -40 - 158°F (-40 - 70°C)

---
