AirPremier AC1750 Concurrent Dual Band PoE Access Point
High-performance Wireless Connectivity
Harness the power of Wireless AC, with wireless speeds of up to 1750Mbps, ideal for high-demand business applications
Strong Security and Authentication Features
Maintain a highly secure network with a range of features including WPA/WPA2, Wireless LAN segmentation, and VLAN support
Configurable as an Access Point, a Wireless Distribution System (WDS) with Access Point, a WDS/Bridge, or a Wireless Client

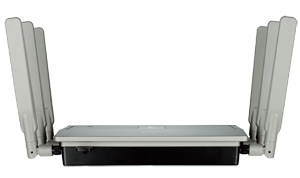

The DAP-2695 AirPremier AC1750 Concurrent Dual Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilizing the cutting-edge speed of IEEE 802.11ac wireless technology.
Super-Fast Wireless AC Performance
The DAP-2695 delivers reliable, high-speed wireless performance using the latest 802.11ac standards with maximum wireless signal rates of up to 450Mbps over the 2.4GHz band, and 1300Mbps over the 5GHz band. This, coupled with support for the Wi-Fi Multimedia™ (WMM) Quality of Service (QoS) feature, makes it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2695 to automatically prioritize network traffic according to the level of interactive streaming, such as Voice over IP (VoIP). The QoS feature can be adjusted through the DAP-2695's web GUI using a drop-down menu option to select customized priority rules. Additionally, the DAP-2695 supports load balancing to ensure maximum performance by limiting the maximum number of users per access point.
Versatile Access Point Functionality
The DAP-2695 allows network administrators to deploy a highly manageable and extremely robust simultaneous dual-band wireless network. All six antennas on the DAP-2695 are detachable and can provide optimal wireless coverage over either the 2.4GHz (802.11g, and 802.11n) or the 5GHz (802.11a, 802.11n, and 802.11ac) band. Enclosed in a plenum-rated metal chassis, the DAP-2695 adheres to strict fire codes for placement in air passageways. For advanced installations, the DAP-2695 has integrated 802.3at Power over Ethernet (PoE) support, allowing this device to be installed in areas where power outlets are not readily available.
To help maintain a secure wireless network, the DAP-2695 supports both Personal and Enterprise versions of WPA and WPA2 (802.11i), with support for RADIUS server backend and a built-in internal RADIUS server allowing users to create their accounts within the device itself. This access point also includes MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling to further protect your wireless network. The DAP-2695 includes support for up to eight VLANs per band for implementing multiple SSIDs to further help segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-to-client communication. Additionally, the DAP-2695 supports Network Access Protection (NAP), a feature of Windows Server® 2008, allowing network administrators to define multiple levels of network access based on individual client's need.
Multiple Operation Modes
To maximize total return on investment, the DAP-2695 can be configured to optimize network performance based on any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS) with Access Point, WDS/Bridge (No AP Broadcasting), and Wireless Client. With WDS support, network administrators can set up multiple DAP-2695s throughout a facility and configure them to bridge with one another while also providing network access to individual clients. The DAP-2695 also features advanced features such as load balancing and redundancy, for fail-safe wireless connectivity.
Network administrators have multiple options for managing the DAP-2695, including web (HTTP), Secure Socket Layer (SSL, which provides for a secure connection to the Internet), Secure Shell (SSH, which provides for a secure channel between local and remote computers), and Telnet. For advanced network management, administrators can use the D-Link AP Manager II, or D-View SNMP management module to configure and manage multiple access points from a single location. In addition, the AP Manager II and D-View software provide network administrators with the means of conducting regular maintenance checks remotely, eliminating the need for sending out personnel to physically verify proper operation. Also available is an AP array, allowing the management of a set of network devices as a single group for easy configuration and deployment. In addition, the DAP-2695 has a wireless scheduler feature, which turns off wireless functionality when it isn't needed, saving power. With simultaneous dualband functionality, PoE support, extensive manageability, versatile operation modes, and solid security enhancements, the DAP-2695 provides small to medium business and enterprise environments with a business-class solution for deploying a wireless network.
Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DAP-2695 Access Point to further its commitment to product quality and long-term customer confidence.
Designed for Business-Class Environments
- IEEE 802.11ac wireless
- Up to 1750Mbps
- Two Gigabit LAN ports
Trusted Security Features
- Simultaneous dual-band connectivity for increased network capacity
- Console port for debugging
- Rugged metal housing
- Plenum-rated chassis
- Ideal for indoor deployment
- Traffic control/QoS
- Internal RADIUS server
- Web redirection
- WPA/WPA2 - Enterprise/Personal
- WPA2 - PSK/AES over WDS
- MAC address filtering
- Network Access Protection (NAP)
- ARP spoofing prevention
- WLAN partition
- Supports 802.3at Power over Ethernet
- Wall mount bracket included
||802.11 a/b/g/n/ac wireless
RJ45 console port
Two Gigabit LAN Ports (One PoE port supported)
|Wireless Frequency Range
||2.4GHz band: 2.4GHz to 2.4835GHz
5GHz band: 5.15 to 5.35GHz, 5.47 to 5.85GHz
||Three 4dBi for 2.4GHz
Three 6dBi for 5GHz
SSID broadcast disable
MAC address access control
Network Access Protection (NAP)
Internal RADIUS server
Secure Telnet (SSH)
Secure HTTP (HTTPS)
D-View module - private MIB
AP Manager II
